SEAT BELT REAR SEAT INNER BELT ASSEMBLY(for RH Side) REMOVAL
CAUTION / NOTICE / HINT
- CAUTION:
-
Wear protective gloves. Sharp areas on the parts may injure your hands.
PROCEDURE
73350C
1.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Fixed Seat Type)
2.REMOVE REAR SEAT CUSHION ASSEMBLY (for Fixed Seat Type)
for HV Model: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>REMOVAL201906,999999,_58,_080732,_0394195,RM100000001I3KD_01_0023,
for Gasoline Model: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>REMOVAL201906,999999,_58,_080732,_0394195,RM100000001I3KD_01_0022,
72693
3.REMOVE REAR SEAT CUSHION LOCK HOOK (for Fixed Seat Type)
73350C
4.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Fold Down Seat Type)
5.REMOVE REAR SEAT CUSHION ASSEMBLY (for Fold Down Seat Type)
for HV Model: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH_01_0042,
for Gasoline Model: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>REMOVAL201906,999999,_58,_080732,_0394196,RM100000001I3KH_01_0022,
72693
6.REMOVE REAR SEAT CUSHION LOCK HOOK (for Fold Down Seat Type)
73380

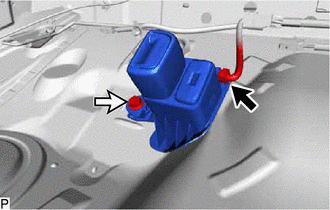

7.REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH
|
Connector |
|
Bolt |
Disconnect the connector.
Remove the bolt and rear seat 3 point type belt assembly RH.
- HINT:
-
The bolt cannot be removed from the rear seat 3 point type belt assembly RH.
