RM3660EC _58 Vehicle Interior _080748 SEAT BELT _0391778 FRONT SEAT OUTER BELT ASSEMBLY G

SEAT BELT  FRONT SEAT OUTER BELT ASSEMBLY  INSPECTION


PROCEDURE

Hide 73220 1.INSPECT FRONT SEAT OUTER BELT ASSEMBLY

a.
B517671C01

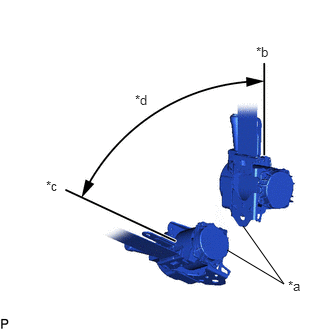

2.365,2.604 2.958,2.958 2.958,2.958 2.531,2.354 false 3,2.896 3.313,3.052 0.313,0.156 10 false *a 2.667,0.458 2.969,0.698 0.302,0.24 10 false *b 0.479,1.854 0.802,2.031 0.323,0.177 10 false *c 1.406,0.958 1.698,1.177 0.292,0.219 10 false *d
*a Retractor
*b Unlock
*c Lock
*d 45°


Before installing the front seat outer belt assembly, check the ELR function.

NOTICE:

Do not disassemble the retractor.


i.

When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.

If the result is not as specified, replace the front seat outer belt assembly.
