RM3660EC _58 Vehicle Interior _080748 SEAT BELT _0391777 FRONT SEAT INNER BELT ASSEMBLY G

SEAT BELT  FRONT SEAT INNER BELT ASSEMBLY  INSPECTION


PROCEDURE

Hide 73240 1.INSPECT FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)

a.
B276694C05
0.184,0.139 0.342,0.277 0.159,0.138 10 *a
*a Component without harness connected
(Front Seat Inner Belt Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
3 - 2 Driver side seat belt unfastened Below 1 Ω
3 - 2 Driver side seat belt fastened 10 kΩ or higher


If the result is not as specified, replace the front seat inner belt assembly.


Hide 73230 2.INSPECT FRONT SEAT INNER BELT ASSEMBLY (for Front Passenger Side)

a.
B545459C01

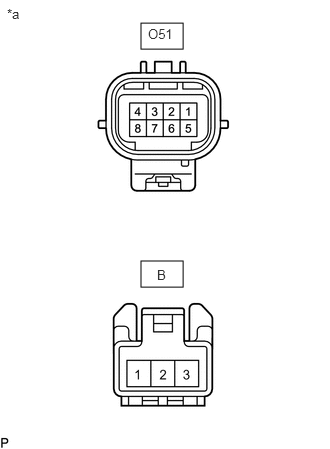

1.469,0.24 1.906,0.51 0.438,0.271 1.469,2.719 1.906,2.99 0.438,0.271 0.073,0.063 0.385,0.26 0.313,0.198 10 false *a 1.542,0.271 1.854,0.469 0.313,0.198 10 false O51 1.635,2.781 1.948,2.979 0.313,0.198 10 false B
*a Component without harness connected
(Front Seat Inner Belt Assembly)


Measure the resistance according to the value(s) in the table below (seat belt warning switch).

Standard Resistance:
Tester Connection Condition Specified Condition
O51-2 - O51-1 Front passenger side seat belt unfastened Below 1 Ω
Front passenger side seat belt fastened 10 kΩ or higher


If the result is not as specified, replace the front seat inner belt assembly.


b.

Measure the resistance according to the value(s) in the table below (occupant detection sensor line).

Standard Resistance:
Tester Connection Condition Specified Condition
O51-4 - B-1 Always Below 1 Ω
O51-3 - B-3 Always Below 1 Ω


If the result is not as specified, replace the front seat inner belt assembly.
