RM3660EC _58 Vehicle Interior _080732 SEAT _0391522 SEAT HEATER SWITCH G

SEAT  SEAT HEATER SWITCH  INSPECTION


PROCEDURE

Hide 1.INSPECT SEAT HEATER SWITCH (for LH)

a.

Check that the LEDs illuminate.

i.

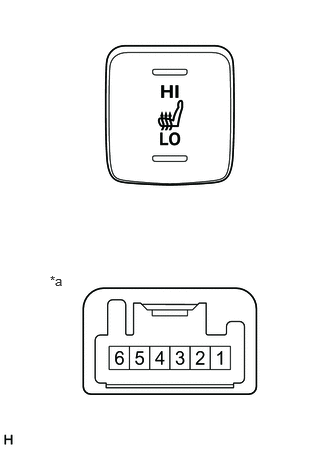

B512559C01
0.521,2.844 0.833,3 0.313,0.156 10 false *a
*a Component without harness connected
(Seat Heater Switch (for LH))


Apply auxiliary battery voltage to the seat heater switch (for LH) and check that each indicator and the illumination illuminate.

OK:
Auxiliary Battery Connection Condition Specified Condition
Auxiliary battery positive (+) → 6
Auxiliary battery negative (-) → 3 		HI switch on HI switch indicator comes on
Auxiliary battery positive (+) → 6
Auxiliary battery negative (-) → 3 		LO switch on LO switch indicator comes on
Auxiliary battery positive (+) → 5
Auxiliary battery negative (-) → 2 		Always Illumination comes on


If the result is not as specified, replace the seat heater switch (for LH).



Hide 2.INSPECT SEAT HEATER SWITCH (for RH)

a.

Check that the LEDs illuminate.

i.

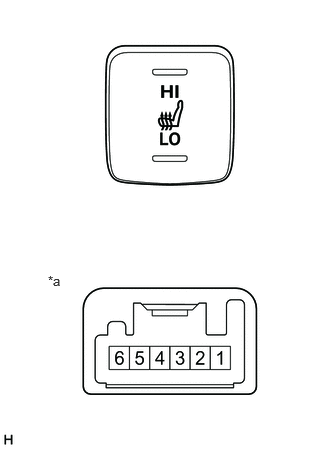

B512560C01
0.5,2.844 0.813,3 0.313,0.156 10 false *a
*a Component without harness connected
(Seat Heater Switch (for RH))


Apply auxiliary battery voltage to the seat heater switch (for RH) and check that each indicator and the illumination illuminate.

OK:
Auxiliary Battery Connection Condition Specified Condition
Auxiliary battery positive (+) → 6
Auxiliary battery negative (-) → 3 		HI switch on HI switch indicator comes on
Auxiliary battery positive (+) → 6
Auxiliary battery negative (-) → 3 		LO switch on LO switch indicator comes on
Auxiliary battery positive (+) → 5
Auxiliary battery negative (-) → 2 		Always Illumination comes on


If the result is not as specified, replace the seat heater switch (for RH).
