HYBRID / BATTERY CONTROL WATER PUMP WITH MOTOR REMOVAL

PROCEDURE

Hide Display 51410 1.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

for 8ZR-FXE:

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202307,999999,_51,_080726,_0391619,RM100000002CWTY_01_0301,

for M20F-FXS, M20G-FXS:

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202307,999999,_51,_146897,_0611496,RM100000002CJ20_01_0306,

Hide Display 2.DRAIN COOLANT (for Inverter)

Click hereGeneral>MAINTENANCE>COOLANT (for Inverter)>REPLACEMENT202307,999999,_V1,_080956,_0393120,RM100000002CWGB_01_0003,

Hide Display G9040 3.REMOVE INVERTER WATER PUMP WITH MOTOR ASSEMBLY

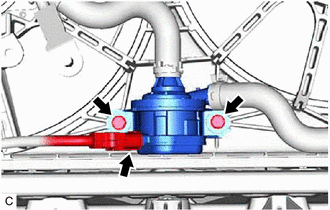

Disconnect the inverter water pump with motor assembly connector.

NOTICE:
To prevent coolant from entering the inverter water pump with motor assembly connector, perform the following procedure.: Apply insulating tape to the connectors of the wire harness and inverter water pump with motor assembly.

Remove the 2 bolts.

2.771,0.625 2.615,0.625 2.615,0.625 2.521,0.885 true 1,0.458 1.656,0.458 true 2.792,0.531 3.031,0.74 0.24,0.208 10 true *1 0.792,0.385 1.031,0.594 0.24,0.208 10 true *2

*1	Outlet No. 1 Hybrid Water Pump Hose
*2	Inlet Hybrid Water Pump Hose

Slide the 2 clips and disconnect the outlet No. 1 hybrid water pump hose and inlet hybrid water pump hose to remove the inverter water pump with motor assembly.

NOTICE:: ·

Put pieces of cloth into the pipes and disconnected hoses or cover the pipes and hoses with plastic bags to prevent foreign matter from entering the inverter water pump with motor assembly and inverter cooling system.

·

Do not apply excessive force to the hoses.

·

If the inverter water pump assembly has been struck or dropped, replace it.
