RM3660EC _58 Vehicle Interior _080747 THEFT DETERRENT / KEYLESS ENTRY _0392032 SMART ENTRY AND START SYSTEM(for Start Function, HV Model) U

THEFT DETERRENT / KEYLESS ENTRY  SMART ENTRY AND START SYSTEM(for Start Function, HV Model)  SYSTEM DIAGRAM


SMART ENTRY AND START SYSTEM (for Start Function)


B692593E01

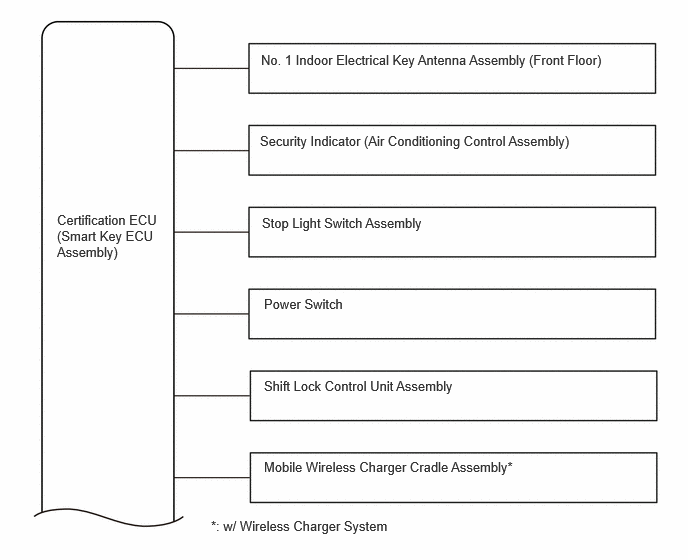

0.594,2.208 1.656,2.708 1.063,0.5 10 false Certification ECU (Smart Key ECU Assembly) 2.719,0.542 6.406,0.74 3.688,0.198 10 false No. 1 Indoor Electrical Key Antenna Assembly (Front Floor) 2.708,1.385 6.021,1.604 3.313,0.219 10 false Security Indicator (Air Conditioning Control Assembly) 2.729,2.24 4.531,2.469 1.802,0.229 10 false Stop Light Switch Assembly 2.75,3.083 3.667,3.302 0.917,0.219 10 false Power Switch 2.75,3.938 4.844,4.156 2.094,0.219 10 false Shift Lock Control Unit Assembly 2.75,4.781 6.281,5.052 3.531,0.271 10 false Mobile Wireless Charger Cradle Assembly* 2.198,5.396 6.635,5.594 4.438,0.198 10 false *: w/ Wireless Charger System

B667542E01

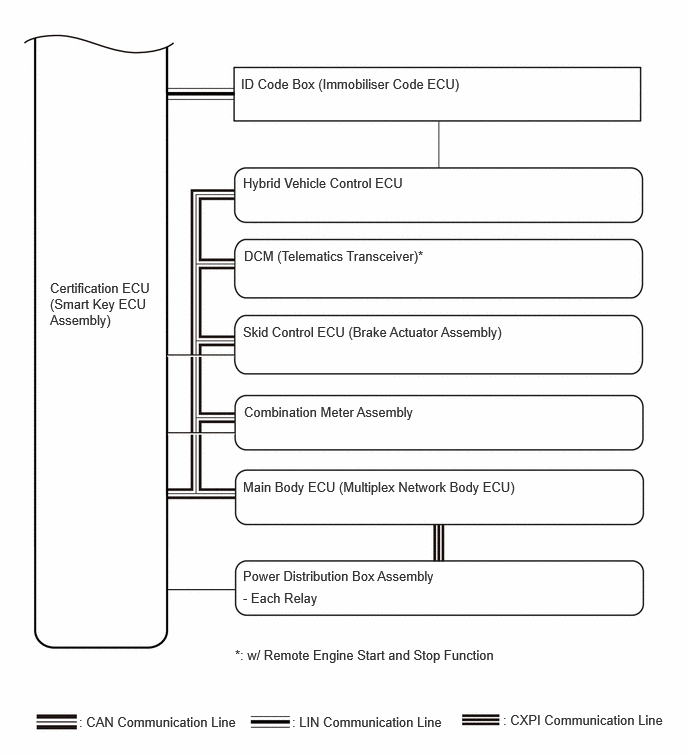

2.531,4.99 6.813,5.281 4.281,0.292 10 false Main Body ECU (Multiplex Network Body ECU) 2.531,3.375 6.813,3.667 4.281,0.292 10 false Skid Control ECU (Brake Actuator Assembly) 2.531,1.823 6.813,2.115 4.281,0.292 10 false Hybrid Vehicle Control ECU 2.51,0.792 6.792,1.083 4.281,0.292 10 false ID Code Box (Immobiliser Code ECU) 2.542,4.208 6.823,4.5 4.281,0.292 10 false Combination Meter Assembly 0.823,7.438 5.104,7.729 4.281,0.292 10 false : CAN Communication Line 3.042,7.438 6.531,7.74 3.49,0.302 10 false : LIN Communication Line 0.521,2.917 1.573,3.698 1.052,0.781 10 false Certification ECU (Smart Key ECU Assembly) 2.531,5.917 6.813,6.208 4.281,0.292 10 false Power Distribution Box Assembly 2.531,6.146 6.813,6.438 4.281,0.292 10 false - Each Relay 5.24,7.417 7.146,7.625 1.906,0.208 10 false : CXPI Communication Line 2.542,2.583 6.823,2.875 4.281,0.292 10 false DCM (Telematics Transceiver)* 2.448,6.74 6.729,7.031 4.281,0.292 10 false *: w/ Remote Engine Start and Stop Function


SMART ENTRY AND START SYSTEM (for Entry Function) (w/ Entry Function)


Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function (except NR Series))>SYSTEM DIAGRAM
