THEFT DETERRENT / KEYLESS ENTRY  SMART ENTRY AND START SYSTEM(for Start Function, HV Model)  PARTS LOCATION

ILLUSTRATION

3.521,3.052 3.521,4.469 3.521,4.469 3.354,4.469 false 2.99,2.479 2.99,4.146 2.99,4.146 2.813,4.146 false 3.167,4.385 3.375,4.563 0.208,0.177 10 false *2 2.604,4.063 2.833,4.25 0.229,0.188 10 false *1

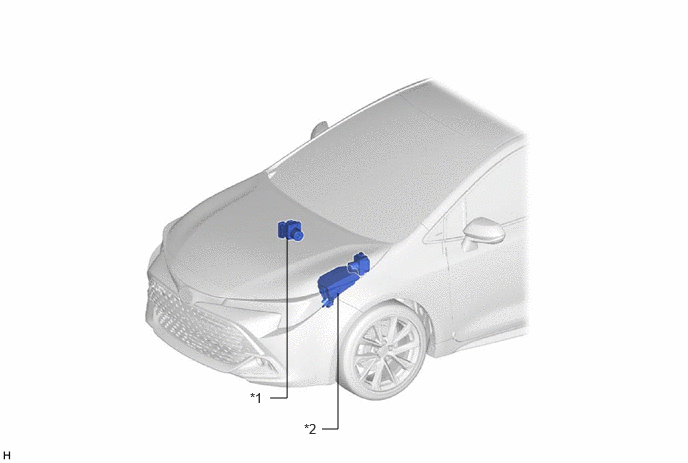

*1

SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

*2

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

ILLUSTRATION

3.563,2.438 3.563,0.229 3.563,0.229 3.385,0.229 false 3.229,0.115 3.438,0.313 0.208,0.198 10 false *1

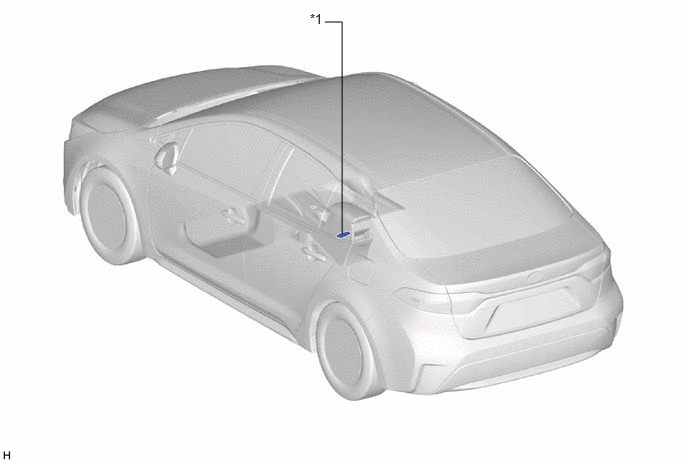

*1

NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR)

-

-

ILLUSTRATION

4,6.333 3.833,6.333 3.833,6.333 3.833,5.25 false 0.948,4.25 0.948,4.25 0.948,4.25 1.365,4.25 false 0.875,7.083 1.125,7.083 false 1.083,5.25 1.25,5.25 1.25,5.25 1.75,4.667 false 2.5,3.5 2.5,2.417 2.5,2.417 2.333,2.417 false 4.333,3.146 4.333,1.99 4.333,1.99 4.167,1.99 false 1.573,4.01 1.573,2.427 1.573,2.427 1.406,2.427 false 2.917,1.135 2.917,1.417 false 2.021,7 2.271,7 false 1.938,3.917 1.938,2 1.938,2 1.771,2 true 3.156,3.573 2.573,2.156 2.573,2.156 2.406,2.156 false 1.5,5.917 1.667,5.917 1.667,5.917 3.063,3.99 false 2.5,5.917 2.667,5.917 2.667,5.917 3.25,4 true 3.5,7 3.333,7 3.333,7 3.333,4.417 false 2.823,1.427 3.021,1.615 0.198,0.188 10 false *4 2.25,2.063 2.458,2.24 0.208,0.177 10 false *3 4.031,6.219 4.24,6.396 0.208,0.177 10 false *9 0.792,4.135 1,4.344 0.208,0.208 10 false *1 2.167,2.313 2.354,2.5 0.188,0.188 10 false *6 3.938,1.885 4.219,2.063 0.281,0.177 10 false *11 1.146,6.979 1.406,7.135 0.26,0.156 10 false *13 0.229,6.49 0.542,6.688 0.313,0.198 10 false *a 1.24,2.323 1.458,2.5 0.219,0.177 10 false *2 1.344,5.813 1.573,6.01 0.229,0.198 10 false *7 2.292,6.906 2.531,7.083 0.24,0.177 10 false *14 0.927,5.146 1.146,5.344 0.219,0.198 10 false *8 1.615,1.906 1.823,2.083 0.208,0.177 10 false *5 2,5.792 2.521,5.99 0.521,0.198 10 false *10 (*A) 3.573,6.896 4.167,7.083 0.594,0.188 10 false *12 (*B)

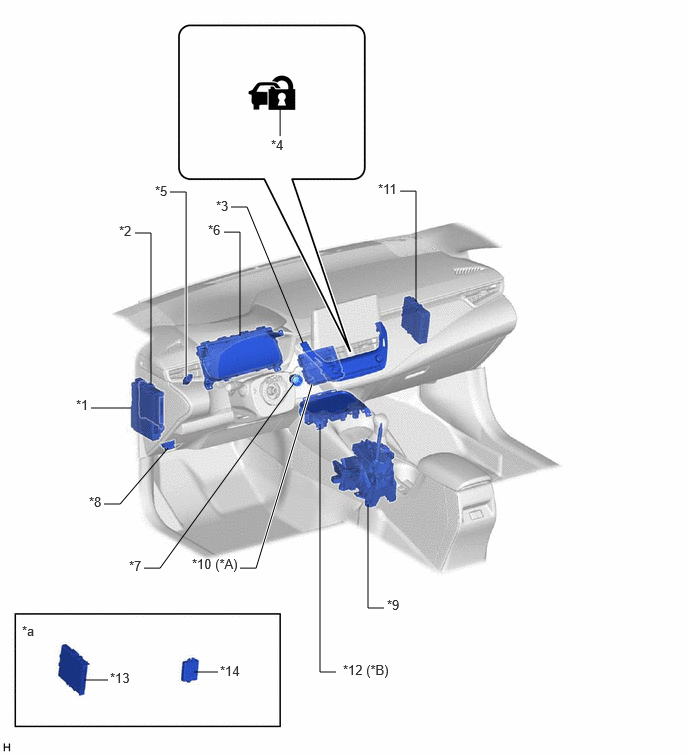

*A	w/ Remote Engine Start and Stop Function	*B	w/ Wireless Charger System
*1	POWER DISTRIBUTION BOX ASSEMBLY - IGR NO. 1 RELAY - IGR NO. 2 RELAY - ACC RELAY - +BA RELAY - AM2 FUSE - ECU-ACC FUSE - ECU-IGR NO. 1 FUSE - ECU-IGR NO. 2 FUSE - +BA NO. 1 FUSE - +BA NO. 2 FUSE - STOP FUSE	*2	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3	AIR CONDITIONING CONTROL ASSEMBLY	*4	SECURITY INDICATOR LIGHT
*5	STOP LIGHT SWITCH ASSEMBLY	*6	COMBINATION METER ASSEMBLY
*7	POWER SWITCH	*8	DLC3
*9	SHIFT LOCK CONTROL UNIT ASSEMBLY	*10	DCM (TELEMATICS TRANSCEIVER)
*11	HYBRID VEHICLE CONTROL ECU	*12	MOBILE WIRELESS CHARGER CRADLE ASSEMBLY
*13	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)	*14	ID CODE BOX (IMMOBILISER CODE ECU)
*a	Refer to Service Bulletin for the installation position of the parts.	-	-
