RM3660EC _58 Vehicle Interior _080748 SEAT BELT _0391778 FRONT SEAT OUTER BELT ASSEMBLY A

SEAT BELT FRONT SEAT OUTER BELT ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 73200A 1.INSTALL FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

2.01,1.948 2.156,2.115 0.146,0.167 10 true A 2.156,0.635 2.302,0.802 0.146,0.167 10 true B

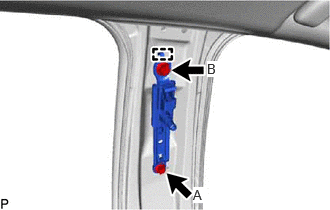

Engage the guide and temporarily install the front shoulder belt anchor adjuster assembly with the 2 bolts.

Fully tighten the bolt (A) and then the bolt (B) to install the front shoulder belt anchor adjuster assembly.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

Hide Display 73220 2.INSPECT FRONT SEAT OUTER BELT ASSEMBLY

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY>INSPECTION201906,999999,_58,_080748,_0391778,RM100000001HMC8_03_0002,

Hide Display 73220 3.INSTALL FRONT SEAT OUTER BELT ASSEMBLY

1.208,0.302 1.354,0.469 0.146,0.167 10 true A 2.198,1.74 2.344,1.906 0.146,0.167 10 true B

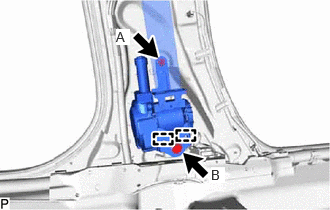

Engage the 2 guides and temporarily install the front seat outer belt assembly with the 2 bolts.

Fully tighten the bolt (A) and then the bolt (B) to install the front seat outer belt assembly.

Torque:: Bolt (A) : 12.5 N*m (127 kgf*cm, 9 ft.*lbf); Bolt (B) : 42 N*m (428 kgf*cm, 31 ft.*lbf)

2.573,0.615 2.74,0.51 true 2.76,0.417 3.073,0.573 0.313,0.156 10 false *a 2.552,0.146 2.865,0.302 0.313,0.156 10 false *b

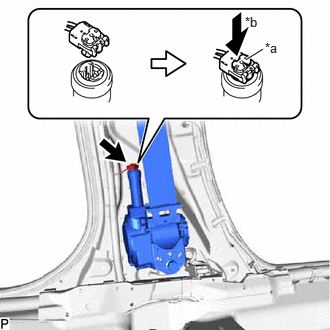

*a	Locking Button
*b	Lock

Connect the pretensioner connector and lock the locking button as shown in the illustration.

NOTICE:: Securely lock the locking button.

Connect the shoulder anchor of the front seat outer belt assembly with the nut.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

Check that the ELR locks.

NOTICE:: This check should be performed with the front seat outer belt assembly installed to the vehicle.

With the front seat outer belt assembly installed to the vehicle, check that the belt locks when it is pulled out quickly.

Hide Display 62412B 4.INSTALL CENTER PILLAR UPPER GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0047,

Hide Display 62414A 5.INSTALL CENTER PILLAR LOWER GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0044,

Hide Display 73220 6.CONNECT FRONT SEAT OUTER BELT ASSEMBLY

Connect the floor anchor of the front seat outer belt assembly with the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

Hide Display 73233 7.INSTALL LAP BELT OUTER ANCHOR COVER

Engage the 3 claws to install the lap belt outer anchor cover.

Hide Display 62332A 8.CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP>INSTALLATION202107,999999,_59,_080735,_0392092,RM100000001X72T_01_0017,

Hide Display 67918A 9.INSTALL REAR DOOR SCUFF PLATE (for Gasoline Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0300,

Hide Display 67918A 10.INSTALL REAR DOOR SCUFF PLATE (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0301,

Hide Display 62312B 11.CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR OPENING TRIM WEATHERSTRIP>INSTALLATION202104,999999,_59,_080735,_0392091,RM100000001VMMQ_02_0007,

Hide Display 67914 12.INSTALL FRONT DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0105,

Hide Display 72693 13.INSTALL REAR SEAT CUSHION LOCK HOOK (for Gasoline Model)

for Fixed Seat Type: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394195,RM100000001I3KB_01_0020,

for Fold Down Seat Type: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394196,RM100000001I3KK_01_0010,

Hide Display 14.INSTALL REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

for Fixed Seat Type: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394195,RM100000001I3KB_01_0021,

for Fold Down Seat Type: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394196,RM100000001I3KK_01_0021,

Hide Display 73350C 15.CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Gasoline Model)

for Fixed Seat Type: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394195,RM100000001I3KB_01_0023,

for Fold Down Seat Type: Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394196,RM100000001I3KK_01_0022,

Hide Display 16.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

for NR Series Engine: Click hereGeneral>MAINTENANCE>NR Series BATTERY>INSTALLATION202304,999999,_V1,_080956,_0392375,RM100000002BCCN_03_0002,

for 8ZR-FXE: Click hereGeneral>MAINTENANCE>8ZR-FXE AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_080956,_0392376,RM100000002ACL8_01_0029,

for M15B-FKS: Click hereGeneral>MAINTENANCE>M15B-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0453685,RM100000002BCCF_03_0002,

for M15C-FKS: Click hereGeneral>MAINTENANCE>M15C-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0453686,RM100000002BCCG_03_0002,

for M20A-FKS: Click hereGeneral>MAINTENANCE>M20A-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0470107,RM100000002BCCI_03_0002,

for M20E-FKS: Click hereGeneral>MAINTENANCE>M20E-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0474497,RM100000002BCCK_03_0002,

for M20C-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0484846,RM100000002BCCJ_03_0002,

for M20F-FXS, M20G-FXS: Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>INSTALLATION202307,999999,_V1,_080956,_0611807,RM100000002CK9L_01_0015,

Hide Display 64490 17.INSTALL LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY (for M20F-FXS, M20G-FXS)

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>INSTALLATION202307,999999,_V1,_080956,_0611807,RM100000002CK9L_01_0028,

Hide Display 18. PERFORM DIAGNOSTIC SYSTEM CHECK

for NR Series Engine:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>DTC CHECK / CLEAR202307,999999,_58,_080741,_0610731,RM100000002CH03,

Hide Display 19.INSPECT SRS WARNING LIGHT

for NR Series Engine:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>OPERATION CHECK202307,202502,_58,_080741,_0610731,RM100000002CH00,202502,999999,_58,_080741,_0610731,RM100000002QSGL,

except NR Series Engine:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>OPERATION CHECK202304,999999,_58,_080741,_0584471,RM1000000029GNO,

Hide Display 20. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202304,999999,_V1,_143216,_0598315,RM100000002B3MJ,
