PA10/PB10 HYBRID TRANSMISSION / TRANSAXLE  HYBRID TRANSAXLE OIL SEAL  REPLACEMENT


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front drive shaft oil seal LH or front drive shaft oil seal RH removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*: The vehicle height changes because of tire replacement.

Front wheel alignment adjustment
1.

Perform "Reset Memory"

2.

Perform "Calibration"


·

DTCs are stored

·

ABS warning light illuminates

·

Brake system warning light (yellow indicator) illuminates

·

Slip indicator light illuminates

·

Electronically controlled brake system disabled or malfunctions


(Click here)
·

Tires

·

Suspension parts


Rear television camera assembly optical axis (Back camera position setting)* Parking Assist Monitor System (Click here)
Parking assist ECU initialization Panoramic View Monitor System (Click here)

PROCEDURE

Hide 43420H 2.REMOVE FRONT DRIVE SHAFT OIL SEAL LH

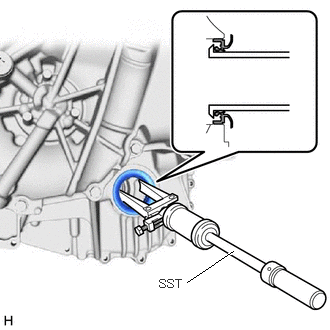

a.
C477319N01
1.948,2.938 2.427,2.615 true 1.656,2.885 2.115,3.083 0.458,0.198 10 false SST

Using SST, remove the front drive shaft oil seal LH from the hybrid vehicle transaxle assembly.

SST
09308-00010

NOTICE:

Be careful not to damage the hybrid vehicle transaxle assembly.



Hide 43410M 3.REMOVE FRONT DRIVE SHAFT OIL SEAL RH

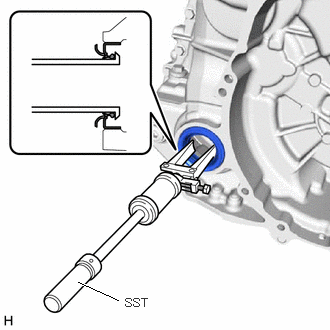

a.
C477321N01
0.813,2.938 1.229,3.125 true 1.302,3.083 1.698,3.271 0.396,0.188 10 false SST

Using SST, remove the front drive shaft oil seal RH from the hybrid vehicle transaxle assembly.

SST
09308-00010

NOTICE:

Be careful not to damage the hybrid vehicle transaxle assembly.



Hide 43410M 4.INSTALL FRONT DRIVE SHAFT OIL SEAL RH

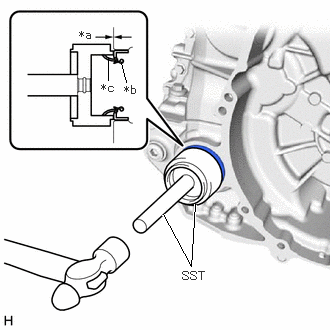

a.
C477322C02
1.125,0.604 1.125,0.833 false 1.698,2.229 1.99,2.771 1.99,2.771 2.031,2.125 true 1.26,0.646 1.313,0.854 false 0.823,0.292 1.135,0.5 0.313,0.208 10 false *a 1.896,2.802 2.354,3 0.458,0.198 10 false SST 1.292,0.865 1.542,1.063 0.25,0.198 10 false *b 1.052,0.844 1.302,1.073 0.25,0.229 10 false *c
*a Depth
*b Main Lip
*c Side Lip


Using SST and a hammer, install a new front drive shaft oil seal RH to the hybrid vehicle transaxle assembly.

SST
09316-10010
09950-70010  (09951-07100)

Standard Depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)


NOTICE:
·
C381409C01
2.292,1.073 2.427,1.073 2.427,1.073 2.427,1.406 false 1.323,1.26 1.552,1.26 false 2.219,0.75 2.583,0.75 false 0.729,0.75 1.094,0.75 false 1.052,0.281 1.333,0.51 0.281,0.229 10 false *a 2.542,0.281 2.823,0.51 0.281,0.229 10 false *b 2.125,0.979 2.406,1.208 0.281,0.229 10 false *c 1.594,1.156 1.875,1.385 0.281,0.229 10 false *c 0.427,0.677 0.885,0.875 0.458,0.198 10 false SST 1.917,0.677 2.375,0.875 0.458,0.198 10 false SST
*a Correct
*b Incorrect
*c Side Lip


Make sure that the side lip of the front drive shaft oil seal RH is not pinched by SST.

·

Do not allow foreign matter to attach to the main lip and side lip of the front drive shaft oil seal RH.

·

Do not install the front drive shaft oil seal RH at an angle.

·

Do not remove the grease from the main lip and side lip of the front drive shaft oil seal RH.




Hide 43420H 5.INSTALL FRONT DRIVE SHAFT OIL SEAL LH

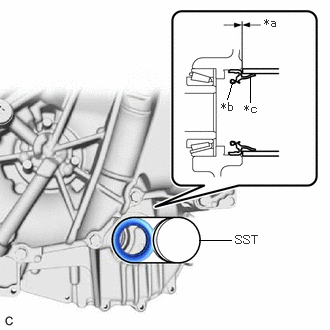

a.
C492576C01
2.417,0.865 2.365,1.031 false 2.604,0.802 2.604,1.063 false 2.406,2.5 2.073,2.5 false 2.448,2.427 2.813,2.625 0.365,0.198 10 false SST 2.75,0.167 3.052,0.396 0.302,0.229 10 false *a 2.542,1.063 2.844,1.292 0.302,0.229 10 false *c 2.302,1.042 2.604,1.271 0.302,0.229 10 false *b
*a Depth
*b Main Lip
*c Side Lip


Using SST and a hammer, install a new front drive shaft oil seal LH to the hybrid vehicle transaxle assembly.

SST
09506-42020

Standard Depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)


NOTICE:
·
C381409C01
2.292,1.073 2.427,1.073 2.427,1.073 2.427,1.406 false 1.323,1.26 1.552,1.26 false 2.219,0.75 2.583,0.75 false 0.729,0.75 1.094,0.75 false 1.052,0.281 1.333,0.51 0.281,0.229 10 false *a 2.542,0.281 2.823,0.51 0.281,0.229 10 false *b 2.125,0.979 2.406,1.208 0.281,0.229 10 false *c 1.594,1.156 1.875,1.385 0.281,0.229 10 false *c 0.427,0.677 0.885,0.875 0.458,0.198 10 false SST 1.917,0.677 2.375,0.875 0.458,0.198 10 false SST
*a Correct
*b Incorrect
*c Side Lip


Make sure that the side lip of the front drive shaft oil seal LH is not pinched by SST.

·

Do not allow foreign matter to attach to the main lip and side lip of the front drive shaft oil seal LH.

·

Do not install the front drive shaft oil seal LH at an angle.

·

Do not remove the grease from the main lip and side lip of the front drive shaft oil seal LH.
