ADVANCED DRIVER ASSISTANCE SYSTEM MILLIMETER WAVE RADAR SENSOR(except NR Series Engine) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are replaced during millimeter wave radar sensor assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
Millimeter wave radar sensor assembly	Adjust millimeter wave radar sensor assembly	· Front Radar Sensor System · Automatic High Beam System	Triangle Target:(202307,999999,_95,_139716,_0584197,RM100000002D3IS,) Flat Surface Target:(202307,999999,_95,_139716,_0584197,RM100000002D3IR,) Driving Adjustment:(202307,999999,_95,_139716,_0584197,RM100000002D3IU,)
w/ Panoramic View Monitor System · Front bumper assembly* · Radiator grille sub-assembly*	Front television camera view adjustment	Panoramic View Monitor System	(202307,999999,_56,_080754,_0612151,RM100000002CL9H,)
Replacement or removal and installation of 2 or more parts: · Front television camera assembly, radiator grille sub-assembly or front bumper assembly · Side television camera assembly LH or outer rear view mirror assembly LH · Side television camera assembly RH or outer rear view mirror assembly RH · Rear television camera assembly	Television camera view adjustment	Panoramic View Monitor System	(202307,999999,_56,_080754,_0612151,RM100000002CL9H,)

PROCEDURE

Hide Display 1.REMOVE FRONT BUMPER ASSEMBLY (for TFTM Made)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>REMOVAL202307,999999,_59,_080736,_0392548,RM100000002CH8T,

Hide Display 2.REMOVE RADIATOR GRILLE ASSEMBLY (for TFTM Made)

for COROLLA:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>DISASSEMBLY202307,999999,_59,_080736,_0392548,RM100000002CH8U_01_0351,

Hide Display 53111 3.REMOVE RADIATOR GRILLE (for TFTM Made)

for ALLION:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>DISASSEMBLY202307,999999,_59,_080736,_0392548,RM100000002CH8U_01_0405,

Hide Display 53111 4.REMOVE RADIATOR GRILLE (for TFTM Made)

for COROLLA:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>DISASSEMBLY202307,999999,_59,_080736,_0392548,RM100000002CH8U_01_0375,

Hide Display 88211B 5.REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (for TFTM Made)

0,0 0,0 false

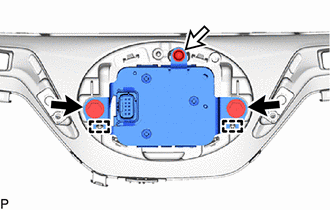

	Bolt
	Screw

Remove the 2 bolts and screw.

Disengage the 2 guides and remove the millimeter wave radar sensor assembly.

NOTICE:: Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.

Hide Display 6.REMOVE FRONT BUMPER ASSEMBLY (for GTMC Made)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>REMOVAL202307,999999,_59,_080736,_0392547,RM100000002CHFA,

Hide Display 53114A 7.REMOVE INNER RADIATOR GRILLE (for GTMC Made)

except Sport Package:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>DISASSEMBLY202304,999999,_59,_080736,_0392547,RM100000002AXCN_01_0351,

for Sport Package:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>DISASSEMBLY202304,999999,_59,_080736,_0392547,RM100000002AXCN_01_0403,

Hide Display 88211B 8.REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (for GTMC Made)

0,0 0,0 false

	Bolt
	Screw

Remove the 2 bolts and screw.

Disengage the 2 guides and remove the millimeter wave radar sensor assembly.

NOTICE:: Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.
