TIRE PRESSURE WARNING SYSTEM(for HV Model)
U
TIRE PRESSURE MONITORING TIRE PRESSURE WARNING SYSTEM(for HV Model) TERMINALS OF ECU
CHECK TIRE PRESSURE WARNING ECU AND RECEIVER
2.156,0.854 2.625,1.083
0.469,0.229
2.156,0.552 2.625,0.781
0.469,0.229
2.229,0.896 2.573,1.083
0.344,0.188
10
false
O161
0.156,0.135 0.469,0.333
0.313,0.198
10
false
*a
2.26,0.594 2.719,0.792
0.458,0.198
10
false
O18
2.677,0.594 3.167,0.792
0.49,0.198
10
false
*A
2.677,0.875 3.198,1.073
0.521,0.198
10
false
*B

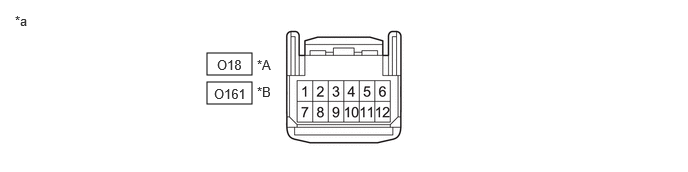

| *A | for M20F-FXS | *B | except M20F-FXS |
| *a | Front view of wire harness connector
(to Tire Pressure Warning ECU and Receiver) |
- | - |
a.
Disconnect the O18*1 or O161*2 tire pressure warning ECU and receiver connector and measure the voltage or resistance on the wire harness side.
*1: for M20F-FXS
*2: except M20F-FXS
| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
|
*1: for M20F-FXS *2: except M20F-FXS |
|||
| O18-1 (IGR) - O18-12 (GND)*1
O161-1 (IGR) - O161-12 (GND)*2 |
IG power source | Power switch on (IG) | 10 to 16 V |
| O18-7 (+B) - O18-12 (GND)*1
O161-7 (+B) - O161-12 (GND)*2 |
Power supply (from battery) | Always | 10 to 16 V |
| O18-9 (CANH) - O18-10 (CANL)*1
O161-9 (CANH) - O161-10 (CANL)*2 |
CAN communication line | Power switch off | 54 to 69 Ω |
| O18-12 (GND) - Body ground*1
O161-12 (GND) - Body ground*2 |
Ground | Always | Below 1 Ω |
