RM3660EC _58 Vehicle Interior _080741 SUPPLEMENTAL RESTRAINT SYSTEMS _0392910 FRONT AIRBAG SENSOR A

SUPPLEMENTAL RESTRAINT SYSTEMS FRONT AIRBAG SENSOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front airbag sensor removal/installation are shown below.

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven (for HV Model)
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedures	Link
Front Camera System	Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more.	(202304,999999,_95,_139716,_0584193,RM1000000029F4C,)

Learning completes when vehicle is driven (for Gasoline Model)
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedures	Link
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
Pre-collision System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Lane Tracing Assist System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Front Camera System	Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more.	(202304,999999,_95,_139716,_0584193,RM1000000029F4C,)

Use the same procedure for the RH side and LH side.

The following procedure is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; except NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>PRECAUTION202304,999999,_58,_080741,_0584471,RM1000000029GQF,; for NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>PRECAUTION202307,999999,_58,_080741,_0610731,RM100000002CGZV,

NOTICE:: After turning the ignition switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202304,202502,_V1,_143216,_0598315,RM100000002B3MI,202502,999999,_V1,_143216,_0598315,RM100000002RP07,

Hide Display 64490 2.REMOVE LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY (for M20F-FXS, M20G-FXS)

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_080956,_0611807,RM100000002CK9K_01_0028,

Hide Display 3.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

for NR Series: Click hereGeneral>MAINTENANCE>NR Series BATTERY>REMOVAL202304,999999,_V1,_080956,_0392375,RM100000002BCCL_05_0005,

for 8ZR-FXE: Click hereGeneral>MAINTENANCE>8ZR-FXE AUXILIARY BATTERY>REMOVAL202304,999999,_V1,_080956,_0392376,RM100000002ACL7_01_0028,

for M15B-FKS: Click hereGeneral>MAINTENANCE>M15B-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0453685,RM100000002ACNG_05_0005,

for M15C-FKS: Click hereGeneral>MAINTENANCE>M15C-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0453686,RM100000002ACNH_05_0005,

for M20A-FKS: Click hereGeneral>MAINTENANCE>M20A-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0470107,RM100000002ACOV_05_0005,

for M20E-FKS: Click hereGeneral>MAINTENANCE>M20E-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0474497,RM100000002ACOX_05_0005,

for M20C-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL202304,999999,_V1,_080956,_0484846,RM100000002ACOW_05_0005,

for M20F-FXS, M20G-FXS: Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_080956,_0611807,RM100000002CK9K_01_0013,

CAUTION:: for NR Series:

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.; except NR Series:

·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

Hide Display 89174A 4.REMOVE FRONT AIRBAG SENSOR

Check that the ignition switch (for Gasoline Model) or power switch (for HV Model) is off.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:: for NR Series:

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.; except NR Series:

·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

Disconnect the connector from the front airbag sensor.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector.; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202304,999999,_58,_080741,_0584471,RM1000000029GQG,

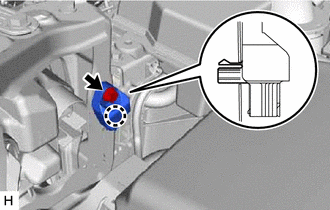

Remove the bolt and disengage the claw to remove the front airbag sensor.
