PARK ASSIST / MONITORING  PANORAMIC VIEW MONITOR SYSTEM  C169E11  Side Camera (Right) Circuit Short to Ground


DESCRIPTION

This DTC is stored if the parking assist ECU judges as a result of its self check that a synchronization problem is occurring in the image signal sent from the side television camera assembly RH to the parking assist ECU.

DTC No. Detection Item DTC Detection Condition Trouble Area DTC Output from Priority
C169E11 Side Camera (Right) Circuit Short to Ground Side camera current malfunction (Right)
·

Harness or connector

·

Parking assist ECU

·

Side television camera assembly RH

·

Outer rear view mirror assembly RH


Circumference Monitoring Camera Control Module A

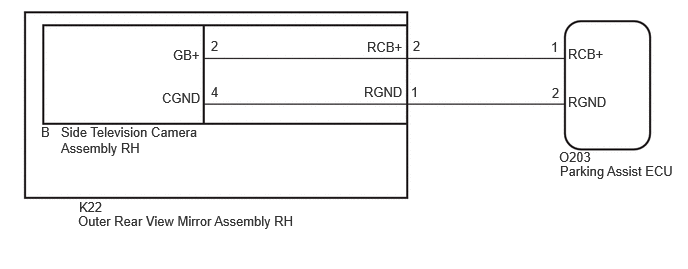

WIRING DIAGRAM

E461424E69
0.813,2.219 3.135,2.417 2.323,0.198 10 false Outer Rear View Mirror Assembly RH 0.823,2.073 1.115,2.25 0.292,0.177 10 false K22 0.427,1.292 0.615,1.479 0.188,0.188 10 false B 0.635,1.292 2.083,1.667 1.448,0.375 10 false Side Television Camera Assembly RH 2.198,0.396 2.531,0.594 0.333,0.198 10 false 2 2.198,0.875 2.542,1.156 0.344,0.281 10 false 4 1.802,0.49 2.177,0.656 0.375,0.167 10 false GB+ 1.688,0.938 2.156,1.115 0.469,0.177 10 false CGND 3.823,0.406 4.26,0.615 0.438,0.208 10 false RCB+ 4.302,0.396 4.438,0.583 0.135,0.188 10 false 2 3.792,0.875 4.229,1.052 0.438,0.177 10 false RGND 4.281,0.875 4.448,1.052 0.167,0.177 10 false 1 5.833,1.698 7.104,1.927 1.271,0.229 10 false Parking Assist ECU 5.823,1.552 6.198,1.719 0.375,0.167 10 false O203 5.917,0.479 6.354,0.656 0.438,0.177 10 false RCB+ 5.917,0.979 6.354,1.135 0.438,0.156 10 false RGND 5.74,0.406 5.927,0.573 0.188,0.167 10 false 1 5.75,0.885 5.938,1.052 0.188,0.167 10 false 2

CAUTION / NOTICE / HINT

NOTICE:

Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the panoramic view monitor system may be needed.

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PANORAMIC VIEW MONITOR SYSTEM>CALIBRATION


PROCEDURE

1.CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - OUTER REAR VIEW MIRROR ASSEMBLY RH)

Pre-procedure1

a.

Disconnect the O203 parking assist ECU connector.


b.

Disconnect the K22 outer rear view mirror assembly RH connector.


Procedure1

c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O203-1 (RCB+) - K22-2 (RCB+) Always Below 1 Ω
O203-2 (RGND) - K22-1 (RGND) Always Below 1 Ω
O203-1 (RCB+) or K22-2 (RCB+) - Body ground Always 10 kΩ or higher
O203-2 (RGND) or K22-1 (RGND) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG


Post-procedure1

d.

None



OK

2.CHECK PARKING ASSIST ECU (RCB+, RGND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.CHECK PARKING ASSIST ECU (RCB+, RGND)

Pre-procedure1

a.

Disconnect the outer rear view mirror assembly RH connector.


Procedure1

b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
K22-1 (RGND) - Body ground Always Below 1 Ω



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
K22-2 (RCB+) - K22-1 (RGND) Ignition switch ON 7.5 to 8.5 V



Result:
Proceed to
OK
NG


Post-procedure1

d.

None



OK

3.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH

NG

3.INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH

Pre-procedure1

a.
E461445C15
1.458,0.094 1.958,0.344 0.5,0.25 2.406,2.854 1.823,3.229 true 0.844,2.813 1.542,3.208 true 2.365,1.323 2.677,1.729 true 2.375,1.135 2.802,0.74 true 0.094,0.177 0.406,0.375 0.313,0.198 10 false *a 0.146,2.01 0.458,2.208 0.313,0.198 10 false *b 2.844,0.667 3.219,0.865 0.375,0.198 10 false GB+ 2.74,1.646 3.271,1.875 0.531,0.229 10 false CGND 0.448,2.688 1.063,2.885 0.615,0.198 10 false RGND 2.5,2.74 3.115,2.938 0.615,0.198 10 false RCB+ 1.688,0.146 1.938,0.344 0.25,0.198 10 false B

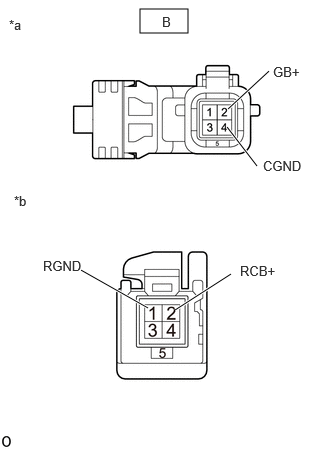

*a Front view of wire harness connector
(to Side Television Camera Assembly RH)
*b Component without harness connected
(to Vehicle Wire Harness Connecter)


Disconnect the side television camera assembly RH connector.


b.

Disconnect the outer rear view mirror assembly RH connector.


Procedure1

c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
2 (RCB+) - B-2 (GB+) Always Below 1 Ω
1 (RGND) - B-4 (CGND) Always Below 1 Ω
2 (RCB+) or B-2 (GB+) - Body ground Always 10 kΩ or higher
1 (RGND) or B-4 (CGND) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG


Post-procedure1

d.

None



OK

4.REPLACE SIDE TELEVISION CAMERA ASSEMBLY RH

NG

4.REPLACE SIDE TELEVISION CAMERA ASSEMBLY RH

NEXT

5.CLEAR DTC
5.CLEAR DTC
a.

Clear the DTCs.

Chassis > Circumference Monitoring Camera Control Module > Clear DTCs
50002 470

Result:
Proceed to
NEXT



NEXT

6.CHECK FOR DTC
6.CHECK FOR DTC
a.

Check for DTCs.

Chassis > Circumference Monitoring Camera Control Module > Trouble Codes
50001 470

Result:
Result Proceed to
C169E11 is not output A
C169E11 is output B



A

END (SIDE TELEVISION CAMERA ASSEMBLY RH WAS DEFECTIVE)

B
