PA10/PB10 HYBRID TRANSMISSION / TRANSAXLE  SHIFT LEVER  REMOVAL


PROCEDURE

Hide 1.SECURE VEHICLE

a.

Fully apply the parking brake and chock a wheel.

CAUTION:
C332327

·

Make sure to apply the parking brake and chock a wheel before performing this procedure.

·

If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.




Hide 33554C 2.REMOVE SHIFT LOCK RELEASE BUTTON COVER

a.
C400596
0.396,1.656 0.635,1.656 0.635,1.656 1.479,1.281 true 0.177,1.531 0.385,1.76 0.208,0.229 10 true *a
*a Protective Tape


Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the shift lock release button cover from the position indicator housing assembly.

NOTICE:

Be careful not to damage the shift lock release button cover and position indicator housing assembly.



Hide 33820B 7.DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

a.

Move the shift lever to N.


b.

for PA10, PB10 TFTM Made:

i.
C498871C01
1.313,2.563 1.594,2.729 false 1.146,2.458 1.406,2.698 0.26,0.24 10 false *a 1.979,4.052 2.26,4.271 0.281,0.219 10 false *b
*a Clip
*b 45° to 60°
V113147

Disconnect in this Direction


While disengaging the clip as shown in the illustration, disconnect the transmission control cable assembly from the transmission floor shift assembly together with the clip.


ii.
C498872C01
1.406,2.573 1.625,2.719 true 1.219,2.469 1.396,2.667 0.177,0.198 10 true *a
*a Stopper


Using a screwdriver, pull out the stopper of the transmission control cable assembly.

NOTICE:

Do not remove the stopper. If it is removed, reinstall it to its original position.



iii.
C498873C01
2.25,0.354 2.448,0.198 false 1.146,0.354 1.344,0.198 false 0.854,1.188 1,1.063 false 1.958,1.198 2.104,1.073 false 1.365,0.094 1.583,0.302 0.219,0.208 10 false *a 0.698,1.125 0.927,1.344 0.229,0.219 10 false *b 2.469,0.094 2.688,0.302 0.219,0.208 10 false *a 1.802,1.135 2.031,1.354 0.229,0.219 10 false *b
*a Stopper
*b Nut


Rotate the nut counterclockwise approximately 180° and, while holding the nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.

NOTICE:
·

Do not rotate the nut excessively as the interior spring may come off and the transmission control cable assembly will not be reusable.

·

Do not forcibly pull the transmission control cable assembly into the cabin.





c.

for PB10 GTMC Made:

i.
C498875C01
1.583,2.521 1.76,2.615 false 1.417,2.417 1.677,2.656 0.26,0.24 10 false *a 1.969,4 2.25,4.219 0.281,0.219 10 false *b
*a Clip
*b 45° to 60°
V113147

Disconnect in this Direction


While disengaging the clip as shown in the illustration, disconnect the transmission control cable assembly from the transmission floor shift assembly together with the clip.


ii.
C498876C01
1.885,1.073 2.281,1.24 true 2.313,1.156 2.51,1.354 0.198,0.198 10 true *a 2.177,0.677 2.396,0.865 0.219,0.188 10 true *b
*a Lock Nut
*b Clockwise
V113147

Disconnect in this Direction


Rotate the lock nut clockwise approximately 180° and, while holding the lock nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.

NOTICE:

Do not forcibly pull the transmission control cable assembly into the cabin.




Hide 8.REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY

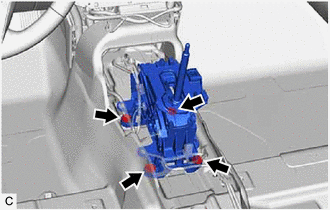

a.
C498879

Remove the 4 bolts and disconnect the transmission floor shift assembly.

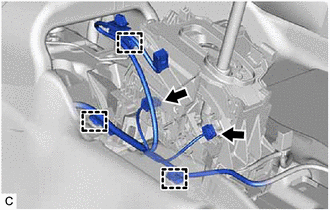

b.
C498880
2.604,1.302 2.823,1.49 0.219,0.188 10 true *a 2.01,0.844 2.229,1.031 0.219,0.188 10 true *b
*a Transmission Control Switch Connector
*b Shift Lock Control ECU Connector


Disconnect the transmission control switch connector.


c.

Disconnect the shift lock control ECU connector.


d.

Disengage the 3 clamps to disconnect the wire harness from the transmission floor shift assembly.


e.

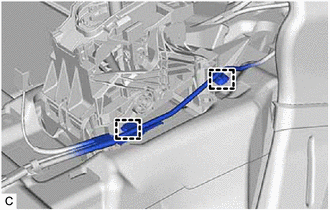

C498881

Disengage the 2 clamps to disconnect the wire harness from the transmission floor shift assembly.


f.

Remove the transmission floor shift assembly.
