HEATING / AIR CONDITIONING  COOLER EXPANSION VALVE  REMOVAL

1.RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

2.REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

55737B 3.REMOVE NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL (w/ No. 1 Heater Air Duct Splash Shield Seal)

55701J 4.REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

88707 5.DISCONNECT SUCTION PIPE SUB-ASSEMBLY (except M20F-FXS, M20G-FXS)

88716A 6.DISCONNECT COOLER REFRIGERANT LIQUID PIPE A (except M20F-FXS, M20G-FXS)

88707B 7.DISCONNECT SUCTION TUBE SUB-ASSEMBLY B (for M20F-FXS, M20G-FXS)

88710E 8.DISCONNECT AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY (for M20F-FXS, M20G-FXS)

88515 9.REMOVE COOLER EXPANSION VALVE

a.

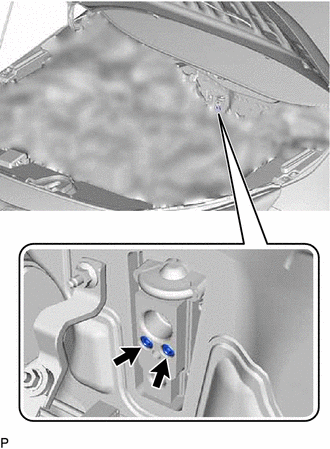

Using a 4 mm hexagon socket wrench, remove the 2 hexagon bolts.

b.

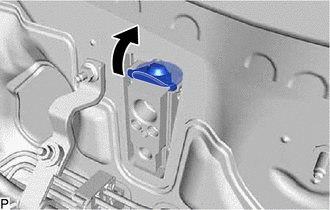

Turn back the cooling unit parts as shown in the illustration.

c.

2.115,1.531 1.542,1.292 true 2.115,1.438 2.344,1.615 0.229,0.177 10 true *a

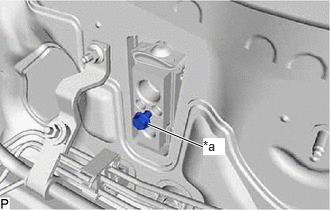

*a	Bolt for Suction Pipe Sub-assembly

Temporarily install the bolt for the suction pipe sub-assembly halfway to the cooler expansion valve.

d.

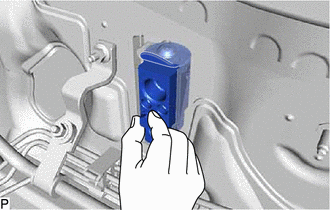

Hold the bolt and pull it to remove the cooler expansion valve as shown in the illustration.

e.

1.063,0.75 1.594,0.875 true 0.844,0.625 1.073,0.823 0.229,0.198 10 true *1

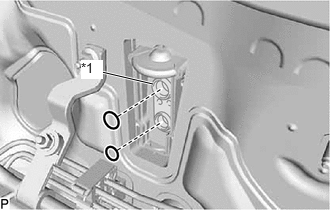

*1	No. 1 Cooler Evaporator Sub-assembly

Remove the 2 O-rings from the No. 1 cooler evaporator sub-assembly.

NOTICE:

Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.
