RM3660EC _58 Vehicle Interior _080733 HEATING / AIR CONDITIONING _0393726 REFRIGERANT LINE(for HV Model) A

HEATING / AIR CONDITIONING  REFRIGERANT LINE(for HV Model)  REMOVAL


PROCEDURE

Hide 2.REMOVE PIPING CLAMP (for Suction Hose Sub-assembly Side)

a.

for 8ZR-FXE:

i.

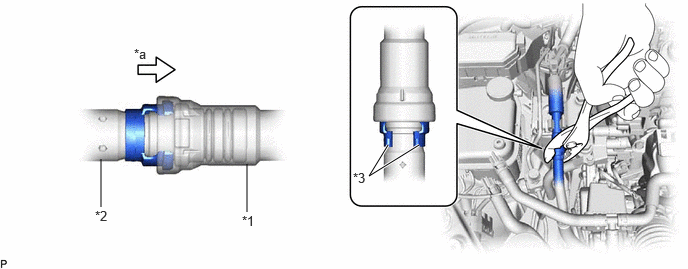

While pressing the end of the suction hose sub-assembly into the end of the suction pipe sub-assembly, use pliers to squeeze together both sides of the piping clamp until it breaks apart.

E418748C01
4.365,1.51 3.844,1.833 3.844,1.833 4.042,1.51 true 1.052,2.156 1.052,1.656 false 2.573,2.208 2.573,1.708 false 2.521,2.219 2.771,2.438 0.25,0.219 10 false *1 0.99,2.167 1.24,2.375 0.25,0.208 10 false *2 3.677,1.771 3.927,2 0.25,0.229 10 false *3 1.396,0.479 1.719,0.74 0.323,0.26 10 false *a
*1 Suction Pipe Sub-assembly *2 Suction Hose Sub-assembly
*3 Piping Clamp - -
*a Press In - -


NOTICE:
·

If any foreign matter is attached to the connected parts, brush it off or use compressed air to remove it before disconnecting the parts.

·

Make sure that fragments of the piping clamp do not enter the piping.




ii.

Separate the suction hose sub-assembly.

NOTICE:

Remove any foreign matter from the connecting parts of the suction hose sub-assembly and suction pipe sub-assembly.



iii.

Remove the 2 O-rings from the suction hose sub-assembly.

NOTICE:

Seal the openings of the disconnected parts with vinyl tape to prevent entry of moisture and foreign matter.



iv.

Remove the piping clamp.



b.

for M20F-FXS, M20G-FXS:

i.

While pressing the end of the suction hose sub-assembly into the end of the suction tube sub-assembly B, use pliers to squeeze together both sides of the piping clamp until it breaks apart.

E519223C01
4.375,1.365 3.854,1.688 3.854,1.688 4.052,1.365 true 1.052,2.094 1.052,1.594 false 2.51,2.146 2.51,1.646 false 2.448,2.146 2.698,2.365 0.25,0.219 10 false *1 0.99,2.104 1.24,2.313 0.25,0.208 10 false *2 3.76,1.708 4.01,1.938 0.25,0.229 10 false *3 1.396,0.479 1.719,0.74 0.323,0.26 10 false *a
*1 Suction Tube Sub-assembly B *2 Suction Hose Sub-assembly
*3 Piping Clamp - -
*a Press In - -


NOTICE:
·

If any foreign matter is attached to the connected parts, brush it off or use compressed air to remove it before disconnecting the parts.

·

Make sure that fragments of the piping clamp do not enter the piping.




ii.

Separate the suction hose sub-assembly.

NOTICE:

Remove any foreign matter from the connecting parts of the suction hose sub-assembly and suction tube sub-assembly B.



iii.

Remove the 2 O-rings from the suction hose sub-assembly.

NOTICE:

Seal the openings of the disconnected parts with vinyl tape to prevent entry of moisture and foreign matter.



iv.

Remove the piping clamp.
