RM3660EC _58 Vehicle Interior _080785 LIGHTING (INT) _0393138 INTERIOR ILLUMINATION LIGHT(for Console Box) A

LIGHTING (INT) INTERIOR ILLUMINATION LIGHT(for Console Box) REMOVAL

PROCEDURE

Hide Display 55606 1.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Hide Display 55434F 2.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Hide Display 58831A 3.REMOVE FRONT CONSOLE UPPER PANEL GARNISH

Hide Display 33504F 4.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for CVT)

for K313:

for K320 / K321:

for K120 / K121:

Hide Display 33504F 5.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for HV Model)

Hide Display 35970F 6.REMOVE POSITION INDICATOR HOUSING ASSEMBLY

Hide Display 7.REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY

Hide Display 58827A 8.REMOVE INTERIOR ILLUMINATION LIGHT (CONSOLE BOX POCKET GARNISH)

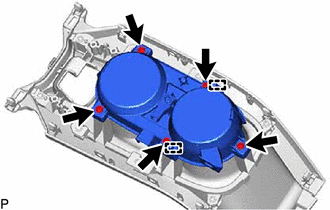

Remove the 5 screws.

Disengage the 2 guides to remove the instrument panel under tray wall retainer.

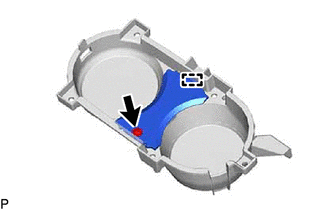

Remove the screw.

Disengage the guide to remove the interior illumination light (console box pocket garnish).
