8ZR-FXE COOLING  COOLING SYSTEM  ON-VEHICLE INSPECTION


CAUTION / NOTICE / HINT

CAUTION:
A370839

Do not remove the radiator cap sub-assembly while the engine and radiator assembly are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.


PROCEDURE

Hide 1.INSPECT FOR COOLANT LEAK (for Engine)

CAUTION:

Do not remove the radiator cap sub-assembly while the engine and radiator assembly are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.


a.

Remove the radiator cap sub-assembly.


b.

Add engine coolant to the MAX line of the radiator reserve tank assembly.


c.

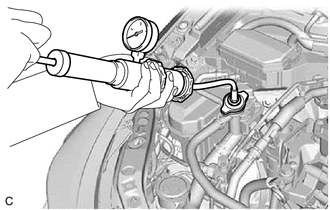

A462180
1,0.604 0.906,0.302 0.906,0.302 0.74,0.302 false 0.573,0.198 0.875,0.427 0.302,0.229 10 false *a
*a Radiator Cap Tester


Install a radiator cap tester.


d.

Put the engine in inspection mode (maintenance mode).

i.

Connect the GTS to the DLC3.


ii.

Turn the ignition switch to ON (IG).


iii.

Turn the GTS on.


iv.

Enter following menus: Powertrain / Hybrid Control / Utility / Inspection Mode.

Powertrain > Hybrid Control > Utility
Tester Display
Inspection Mode
50005 397 2103


e.

Warm up the engine.


f.

Pump the radiator cap tester to 103 kPa (1.1 kgf/cm2, 15 psi), and then check that the pressure does not drop.

·

If the pressure drops, check the hoses, radiator assembly and engine water pump assembly for leaks.

·

If there are no signs of external engine coolant leaks, check the heater core, cylinder block sub-assembly and cylinder head sub-assembly.



g.

Remove the radiator cap tester.


h.

Install the radiator cap sub-assembly.


Hide 2.INSPECT RADIATOR RESERVE TANK ENGINE COOLANT LEVEL (for Engine)

a.

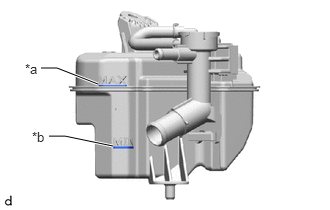

A452253C02
1.021,0.875 0.594,0.708 0.594,0.708 0.427,0.708 true 1.177,1.521 0.677,1.417 0.677,1.417 0.51,1.417 true 0.26,0.635 0.573,0.792 0.313,0.156 10 false *a 0.333,1.344 0.646,1.5 0.313,0.156 10 false *b
*a MAX Line
*b MIN Line


Check that the engine coolant level is between the MIN line and MAX line when the engine is cold.

If the engine coolant level is low, check for leaks and add engine coolant to the MAX line.

NOTICE:

Do not substitute plain water for engine coolant.



Hide 3.INSPECT ENGINE COOLANT QUALITY (for Engine)

CAUTION:

Do not remove the radiator cap sub-assembly while the engine or radiator assembly are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.


a.

Remove the radiator cap sub-assembly.


b.

Check that there are no excessive deposits of rust or scale around the radiator cap sub-assembly and water filler hole. Also, the engine coolant should be free of oil.

If excessively dirty, clean the engine coolant passage and replace the engine coolant.


c.

Install the radiator cap sub-assembly.
