THEFT DETERRENT / KEYLESS ENTRY  SMART ENTRY AND START SYSTEM(for Start Function, HV Model)  Security Indicator Light Does not Blink


DESCRIPTION

·

The certification ECU (smart key ECU assembly) blinks the security indicator light (air conditioning control assembly) when the immobiliser is set (ignition switch off).

·

The certification ECU (smart key ECU assembly) receives the security indicator light signal from the main body ECU (multiplex network body ECU) via CAN communication when the theft deterrent system is in the arming preparation state or alarm sounding state. Then, the certification ECU (smart key ECU assembly) blinks the security indicator light (air conditioning control assembly).

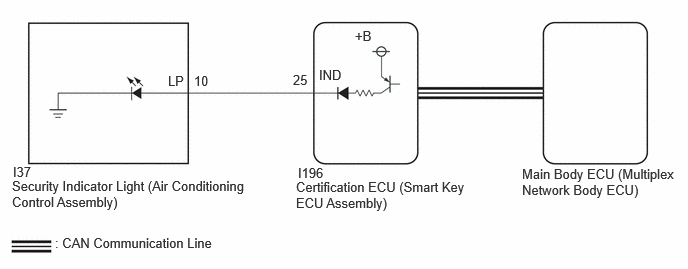

WIRING DIAGRAM

B660394E14
0.125,1.854 2.594,2.229 2.469,0.375 10 false Security Indicator Light (Air Conditioning Control Assembly) 0.135,1.708 0.406,1.896 0.271,0.188 10 false I37 0.573,2.448 2.292,2.635 1.719,0.188 10 false : CAN Communication Line 1.75,0.76 1.979,0.969 0.229,0.208 10 false LP 2.021,0.76 2.375,1.042 0.354,0.281 10 false 10 3.052,0.75 3.302,0.948 0.25,0.198 10 false 25 3.323,0.698 3.604,0.885 0.281,0.188 10 false IND 3.698,0.292 4.052,0.573 0.354,0.281 10 false +B 3.104,1.719 3.417,1.906 0.313,0.188 10 false I196 5.438,1.729 7.094,2.094 1.656,0.365 10 false Main Body ECU (Multiplex Network Body ECU) 3.083,1.865 4.885,2.219 1.802,0.354 10 false Certification ECU (Smart Key ECU Assembly)

CAUTION / NOTICE / HINT

NOTICE:
·

When using the GTS with the ignition switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins.

Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

·

The smart entry and start system (for Start Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart entry and start system (for Start Function) after confirming that the communication systems are functioning properly.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, HV Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before replacing the certification ECU (smart key ECU assembly) or main body ECU (multiplex network body ECU), refer to Service Bulletin.

·

Make sure that no DTCs are output. If any DTCs are output, proceed to the Diagnostic Trouble Code Chart.

·

After completing repairs, confirm that the problem does not recur.

·

After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".



PROCEDURE

1.CHECK FOR DTC
a.

Check for DTCs.

Body Electrical > Entry&Start > Trouble Codes
50001 125
Powertrain > Hybrid Control > Trouble Codes
50001 397
OK:

DTCs are not output.



Result:
Proceed to
OK
NG



OK

2.PERFORM ACTIVE TEST USING GTS (IMMOBILISER INDICATOR)

NG

GO TO DIAGNOSTIC TROUBLE CODE CHART

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, HV Model)>DIAGNOSTIC TROUBLE CODE CHART


2.PERFORM ACTIVE TEST USING GTS (IMMOBILISER INDICATOR)
a.

Perform the Active Test according to the display on the GTS.

Body Electrical > Entry&Start > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Immobiliser Indicator Security indicator light OFF/ON -
Body Electrical > Entry&Start > Active Test
Tester Display
Immobiliser Indicator
50004 440 2
OK:

The security indicator light (air conditioning control assembly) operates normally.



Result:
Proceed to
OK
NG



OK

3.CHECK SECURITY INDICATOR LIGHT (AIR CONDITIONING CONTROL ASSEMBLY) OPERATION

NG

4.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - SECURITY INDICATOR LIGHT (AIR CONDITIONING CONTROL ASSEMBLY))
3.CHECK SECURITY INDICATOR LIGHT (AIR CONDITIONING CONTROL ASSEMBLY) OPERATION
a.

When the immobiliser is set, check that the security indicator light (air conditioning control assembly) blinks.*1

OK:

The security indicator light (air conditioning control assembly) blinks normally.



b.

When the theft deterrent system is in the arming preparation state, check that the security indicator light (air conditioning control assembly) illuminates.*2

OK:

The security indicator light (air conditioning control assembly) illuminates normally.



Result:
Result Proceed to
*1 is NG (*2 is OK) A
*2 is NG (*1 is OK) B



A

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

B

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


4.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - SECURITY INDICATOR LIGHT (AIR CONDITIONING CONTROL ASSEMBLY))
a.

Disconnect the I196 certification ECU (smart key ECU assembly) connector.


b.

Disconnect the I37 security indicator light (air conditioning control assembly) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I196-25 (IND) - I37-10 (LP) Always Below 1 Ω
I196-25 (IND) or I37-10 (LP) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

5.CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
a.

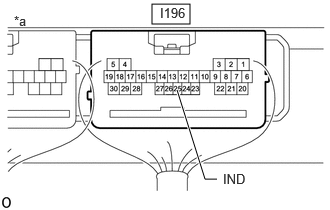

B638875C23
1.583,0.042 1.979,0.25 0.396,0.208 2.26,1.865 2.135,1.865 2.135,1.865 1.844,0.938 true 0.146,0.135 0.458,0.333 0.313,0.198 10 false *a 1.667,0.052 1.979,0.25 0.313,0.198 10 false I196 2.323,1.781 2.688,1.969 0.365,0.188 10 false IND
*a Component with harness connected
(Certification ECU (Smart Key ECU Assembly))


Connect the I196 certification ECU (smart key ECU assembly) connector.


b.

Connect the I37 security indicator light (air conditioning control assembly) connector.


c.

Using an oscilloscope, check the waveform.

Measurement Condition:
Tester Connection Condition Specified Condition
I196-25 (IND) - Body ground Ignition switch off → ON Pulse generation → Below 2 V



Result:
Proceed to
OK
NG



OK

REPLACE SECURITY INDICATOR LIGHT (AIR CONDITIONING CONTROL ASSEMBLY)

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
