HYBRID / BATTERY CONTROL MOTOR GENERATOR CONTROL SYSTEM(for LITHIUM-ION BATTERY) TERMINALS OF ECU
2.219,1.844 2.625,2.063
0.406,0.219
0.948,1.854 1.354,2.073
0.406,0.219
1,1.885 1.552,2.177
0.552,0.292
10
false
A140
2.26,1.875 2.781,2.083
0.521,0.208
10
false
C158
0.104,0.104 0.417,0.302
0.313,0.198
10
false

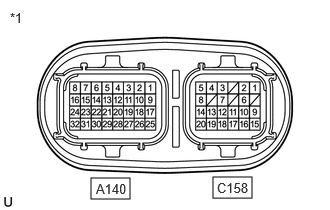

*1
| *1 | Inverter with Converter Assembly |
- HINT:
-
Since the inverter with converter assembly uses waterproof connectors, the voltage and waveforms cannot be inspected directly. Standard voltage readings and waveforms are indicated for reference only.
| Connector code | Terminal No. | Symbol | Terminal Description |
|---|---|---|---|
| A140 | 1 | IGC1 | Motor generator control ECU (MG ECU) power source |
| 2 | NE | Crankshaft position sensor signal | |
| 3 | CALH | CAN communication signal | |
| 4 | GND1 | Ground | |
| 5 | CANH | CAN communication signal | |
| 6 | CANL | CAN communication signal | |
| 7 | - | - | |
| 8 | - | - | |
| 9 | IGC2 | Motor generator control ECU (MG ECU) power source | |
| 10 | GI | Camshaft position sensor signal | |
| 11 | CALL | CAN communication signal | |
| 12 | GND2 | Ground | |
| 13 | CADH | CAN communication signal | |
| 14 | CADL | CAN communication signal | |
| 15 | - | - | |
| 16 | - | - | |
| 17 | - | - | |
| 18 | - | - | |
| 19 | DRN5 | Ground for shield | |
| 20 | DRN1 | Ground for shield | |
| 21 | - | - | |
| 22 | - | - | |
| 23 | - | - | |
| 24 | - | - | |
| 25 | - | - | |
| 26 | HSDN | MG shutdown signal | |
| 27 | DRN2 | Ground for shield | |
| 28 | - | - | |
| 29 | HMCH | Communication signal | |
| 30 | HMCL | Communication signal | |
| 31 | - | - | |
| 32 | - | - | |
| C158 | 1 | MRF | Motor resolver reference signal |
| 2 | MRFG | Motor resolver reference signal ground | |
| 3 | GRF | Generator resolver reference signal | |
| 4 | GRFG | Generator resolver reference signal ground | |
| 5 | MMT | Motor temperature sensor | |
| 6 | DRN6 | Ground for shield | |
| 7 | DRN3 | Ground for shield | |
| 8 | MMTG | Motor temperature sensor ground | |
| 9 | MSN | Motor resolver signal | |
| 10 | MSNG | Motor resolver signal ground | |
| 11 | TTAG | Transmission fluid temperature sensor ground | |
| 12 | GSNG | Generator resolver signal ground | |
| 13 | GSN | Generator resolver signal | |
| 14 | GMTG | Generator temperature sensor ground | |
| 15 | MCS | Motor resolver signal | |
| 16 | MCSG | Motor resolver signal ground | |
| 17 | TTA | Transmission fluid temperature sensor | |
| 18 | GCSG | Generator resolver signal ground | |
| 19 | GCS | Generator resolver signal | |
| 20 | GMT | Generator temperature sensor |
- NOTICE:
-
Do not measure the voltage or waveform on the sealed side of the inverter with converter assembly connector. Doing so may damage the connector because the connector is waterproof.
