BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS  BRAKE PEDAL STROKE SENSOR(for HV Model)  COMPONENTS

ILLUSTRATION

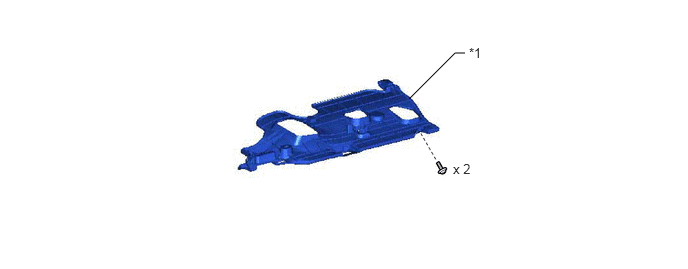

4.26,1.031 4.74,0.552 4.74,0.552 4.844,0.552 false 4.885,0.469 5.198,0.708 0.313,0.24 10 false *1 4.719,1.677 5.115,1.885 0.396,0.208 10 false x 2

*1

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

-

-

ILLUSTRATION

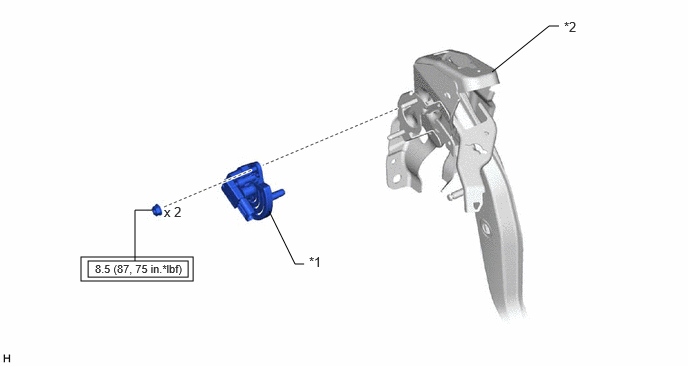

0.917,2.719 1.958,2.885 1.042,0.167 0.844,2.677 2.01,2.927 1.167,0.25 1.406,2.719 1.406,2.188 1.406,2.188 1.583,2.188 false 2.802,2.198 3.073,2.75 3.073,2.75 3.167,2.75 false 5.125,0.75 5.719,0.271 5.719,0.271 5.823,0.271 false 3.219,2.646 3.531,2.802 0.313,0.156 10 false *1 5.875,0.198 6.188,0.354 0.313,0.156 10 false *2 1.708,2.125 2.021,2.396 0.313,0.271 10 false x 2 0.99,2.729 2.354,2.99 1.365,0.26 8 false 8.5 (87, 75 in.*lbf)

*1	BRAKE PEDAL STROKE SENSOR ASSEMBLY	*2	BRAKE PEDAL SUPPORT ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	-	-
