LIGHTING (EXT)  LIGHTING SYSTEM(except NR Series Engine)  Hazard Warning Switch Circuit


DESCRIPTION

The combination meter assembly receives the hazard warning signal switch assembly on signal and controls the operation of the hazard warning lights.

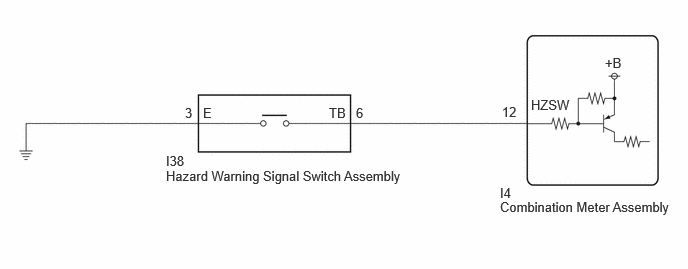

WIRING DIAGRAM

for TFTM Made


E513206E05
1.729,1.75 4.302,2 2.573,0.25 10 false Hazard Warning Signal Switch Assembly 1.729,1.594 2.021,1.833 0.292,0.24 10 false I38 1.927,1.094 2.219,1.333 0.292,0.24 10 false 3 2.115,1.094 2.406,1.333 0.292,0.24 10 false E 3.427,1.094 3.833,1.323 0.406,0.229 10 false TB 3.708,1.094 4,1.333 0.292,0.24 10 false 6 5.208,1.927 5.5,2.167 0.292,0.24 10 false I4 5.208,2.073 7.104,2.354 1.896,0.281 10 false Combination Meter Assembly 5.229,1.083 5.615,1.323 0.385,0.24 10 false 12 6.302,0.573 6.74,0.792 0.438,0.219 10 false +B 5.531,1.01 6.26,1.229 0.729,0.219 10 false HZSW


for GTMC Made


E513206E06
1.729,1.75 4.302,2 2.573,0.25 10 false Hazard Warning Signal Switch Assembly 1.729,1.594 2.021,1.833 0.292,0.24 10 false I38 1.927,1.094 2.219,1.333 0.292,0.24 10 false 3 2.115,1.094 2.406,1.333 0.292,0.24 10 false E 3.333,1.094 3.74,1.323 0.406,0.229 10 false HAZ 3.708,1.094 4,1.333 0.292,0.24 10 false 6 5.208,1.927 5.5,2.167 0.292,0.24 10 false I4 5.208,2.073 7.104,2.354 1.896,0.281 10 false Combination Meter Assembly 5.229,1.083 5.615,1.323 0.385,0.24 10 false 12 6.302,0.573 6.74,0.792 0.438,0.219 10 false +B 5.531,1.01 6.26,1.229 0.729,0.219 10 false HZSW


CAUTION / NOTICE / HINT

NOTICE:
·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·


PROCEDURE

1.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Hazard Flasher Switch Hazard warning signal switch signal OFF or ON OFF: Hazard warning signal switch off
ON: Hazard warning signal switch on
-
Body Electrical > Combination Meter > Data List
Tester Display
Hazard Flasher Switch
50003 409 39
OK:

Normal conditions listed above are displayed.



Result:
Proceed to
OK
NG



OK

NG

2.INSPECT HAZARD WARNING SIGNAL SWITCH ASSEMBLY
2.INSPECT HAZARD WARNING SIGNAL SWITCH ASSEMBLY

OK

3.CHECK HARNESS AND CONNECTOR (HAZARD WARNING SIGNAL SWITCH ASSEMBLY - COMBINATION METER ASSEMBLY AND BODY GROUND)

NG

3.CHECK HARNESS AND CONNECTOR (HAZARD WARNING SIGNAL SWITCH ASSEMBLY - COMBINATION METER ASSEMBLY AND BODY GROUND)
a.

Disconnect the I4 combination meter assembly connector.


b.

for TFTM Made

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I38-6 (TB) - I4-12 (HZSW) Always Below 1 Ω
I38-6 (TB) or I4-12 (HZSW) - Body ground Always 10 kΩ or higher
I38-3 (E) - Body ground Always Below 1 Ω




c.

for GTMC Made

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I38-6 (HAZ) - I4-12 (HZSW) Always Below 1 Ω
I38-6 (HAZ) or I4-12 (HZSW) - Body ground Always 10 kΩ or higher
I38-3 (E) - Body ground Always Below 1 Ω




Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
