RM3660EC _51 Engine / Hybrid System _080773 HYBRID / BATTERY CONTROL _0392187 BATTERY BLOWER A

HYBRID / BATTERY CONTROL  BATTERY BLOWER  INSTALLATION


PROCEDURE

Hide G9230 1.INSTALL BATTERY COOLING BLOWER ASSEMBLY

a.

Install the battery cooling blower assembly to the HV battery with the bolt and 2 nuts.

Torque:
7.5 N*m (76 kgf*cm, 66 in.*lbf)

NOTICE:
·

Be sure not to touch the fan part of the battery cooling blower assembly.

·

Do not lift the battery cooling blower assembly using the wire harness.




b.

Connect the battery cooling blower assembly connector.


Hide G92D1 2.INSTALL NO. 1 HYBRID BATTERY INTAKE DUCT

a.

Install the No. 1 hybrid battery intake duct to the battery cooling blower assembly with the clip.


Hide 71033 3.INSTALL REAR SEAT CUSHION LEG SUB-ASSEMBLY

a.

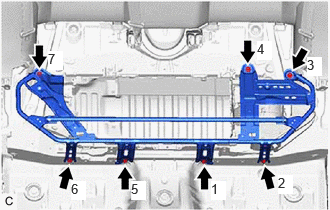

A523914N02
2.198,1.885 2.354,2.083 0.156,0.198 10 true 1 2.896,1.823 3.052,2.021 0.156,0.198 10 true 2 3.198,0.594 3.354,0.792 0.156,0.198 10 true 3 2.677,0.427 2.833,0.625 0.156,0.198 10 true 4 1.365,1.885 1.521,2.083 0.156,0.198 10 true 5 0.74,1.885 0.896,2.083 0.156,0.198 10 true 6 0.5,0.531 0.656,0.729 0.156,0.198 10 true 7

Temporarily install the rear seat cushion leg sub-assembly with the 7 bolts.


b.

Fully tighten the 7 bolts in the order shown in the illustration.

Torque:
16 N*m (163 kgf*cm, 12 ft.*lbf)


Hide 76971G 4.INSTALL REAR UNDER COVER

a.

Engage the 2 guides.


b.

Engage the 2 clips to install the rear under cover to the rear seat cushion leg sub-assembly.


Hide 76973F 7.INSTALL REAR UNDER SIDE COVER RH

HINT:

Use the same procedure as for the LH side.


Hide 67917A 8.INSTALL REAR DOOR SCUFF PLATE RH

HINT:

Use the same procedure as for the LH side.
