HYBRID / BATTERY CONTROL BATTERY BLOWER REMOVAL
PROCEDURE
73350C
1.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
for Fold Down Seat Type:
2.REMOVE REAR SEAT CUSHION ASSEMBLY
for Fold Down Seat Type:
72693
3.REMOVE REAR SEAT CUSHION LOCK HOOK
for Fold Down Seat Type:
67918A
4.REMOVE REAR DOOR SCUFF PLATE LH
76974F
5.REMOVE REAR UNDER SIDE COVER LH
67917A
6.REMOVE REAR DOOR SCUFF PLATE RH
- HINT:
-
Use the same procedure as for the LH side.
76973F
7.REMOVE REAR UNDER SIDE COVER RH
- HINT:
-
Use the same procedure as for the LH side.
76971G

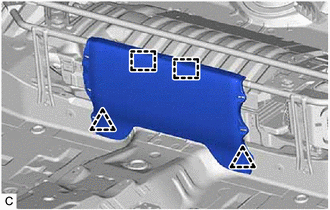

8.REMOVE REAR UNDER COVER
Disengage the 2 clips.
Disengage the 2 guides to remove it from the rear seat cushion leg sub-assembly.
71033

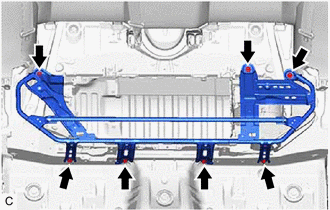

9.REMOVE REAR SEAT CUSHION LEG SUB-ASSEMBLY
Remove the 7 bolts and rear seat cushion leg sub-assembly.
G92D1

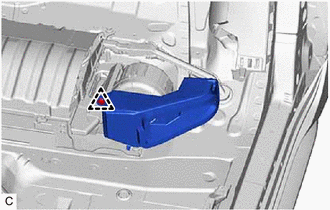

10.REMOVE NO. 1 HYBRID BATTERY INTAKE DUCT
Remove the clip and No. 1 hybrid battery intake duct from the battery cooling blower assembly.
G9230

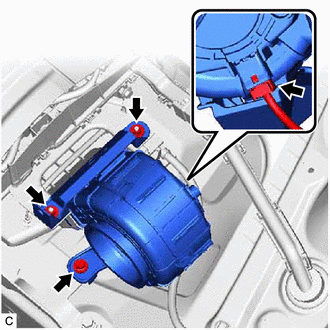

11.REMOVE BATTERY COOLING BLOWER ASSEMBLY
Disconnect the battery cooling blower assembly connector.
Remove the bolt, 2 nuts and the battery cooling blower assembly.
- NOTICE:
- ·
Be sure not to touch the fan part of the battery cooling blower assembly.
·Do not lift the battery cooling blower assembly using the wire harness.
