RM3660EC _51 Engine / Hybrid System _080773 HYBRID / BATTERY CONTROL _0392180 8ZR-FXE FRAME WIRE A

HYBRID / BATTERY CONTROL 8ZR-FXE FRAME WIRE INSTALLATION

PROCEDURE

Hide Display 821H1 1.INSTALL FLOOR UNDER WIRE

CAUTION:: Be sure to wear insulated gloves.

1.333,1.219 1.49,1.417 0.156,0.198 10 true 1 3.01,0.854 3.167,1.052 0.156,0.198 10 true 2

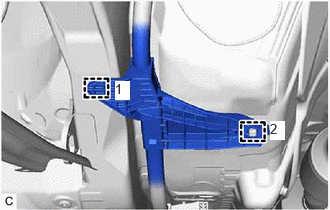

Engage the 2 clamps in the order shown in the illustration.

1.198,0.844 1.354,1.042 0.156,0.198 10 true 1 2.813,1.26 2.969,1.458 0.156,0.198 10 true 2

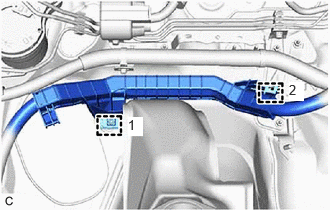

Engage the 2 clamps in the order shown in the illustration.

Insert the floor under wire into the floor panel hole and engage the grommet.

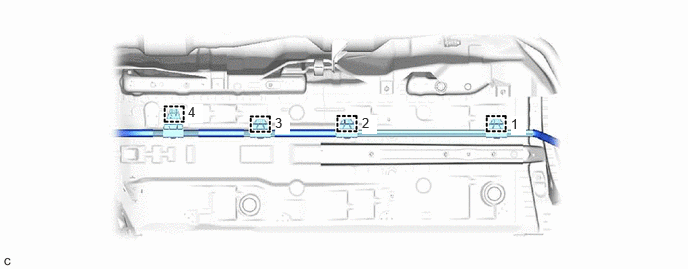

Engage the 4 clamps in the order shown in the illustration.

5.323,1.208 5.479,1.406 0.156,0.198 10 true 1 3.771,1.198 3.927,1.396 0.156,0.198 10 true 2 2.865,1.198 3.021,1.396 0.156,0.198 10 true 3 1.958,1.083 2.115,1.281 0.156,0.198 10 true 4

Install the floor under wire with the 2 nuts.

Torque:: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

Hide Display 51201 2.INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

Click hereSuspension>FRONT SUSPENSION>FRONT SUSPENSION MEMBER>INSTALLATION202304,202307,_53,_080764,_0392686,RM100000002BA7Z,202307,999999,_53,_080764,_0392686,RM100000002CQYX,

Hide Display 58165C 3.INSTALL FRONT FLOOR COVER RH

HINT:: Perform the same procedure as for the front floor cover LH.; Click hereEngine / Hybrid System>8ZR-FXE (INTAKE / EXHAUST)>EXHAUST MANIFOLD>INSTALLATION202304,999999,_51,_080790,_0392073,RM100000002B0QW_01_0164,

Hide Display 57627G 4.INSTALL REAR FLOOR SIDE MEMBER COVER RH

Click hereSuspension>REAR SUSPENSION>REAR STABILIZER BAR>INSTALLATION201906,999999,_53,_080787,_0392571,RM100000001HRKT_01_0018,

Hide Display 821H1 5.CONNECT FLOOR UNDER WIRE

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HV BATTERY (for LITHIUM-ION BATTERY)>INSTALLATION202304,999999,_51,_080773,_0599559,RM100000002B8MJ_01_0324,

Hide Display G92N4A 6.INSTALL NO. 1 HV BATTERY COVER PANEL RH

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HV BATTERY (for LITHIUM-ION BATTERY)>REMOVAL202304,202307,_51,_080773,_0599559,RM100000002B8MI_01_0401,202307,999999,_51,_080773,_0599559,RM100000002CWHW_01_0401,

Hide Display 71033 7.INSTALL REAR SEAT CUSHION LEG SUB-ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY BLOWER>INSTALLATION202304,999999,_51,_080773,_0392187,RM100000002B8L0_02_0125,

Hide Display 76971G 8.INSTALL REAR UNDER COVER

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY BLOWER>INSTALLATION202304,999999,_51,_080773,_0392187,RM100000002B8L0_02_0126,

Hide Display 76974F 9.INSTALL REAR UNDER SIDE COVER LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0297,

Hide Display 67918A 10.INSTALL REAR DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0301,

Hide Display 76973F 11.INSTALL REAR UNDER SIDE COVER RH

HINT:: Use the same procedure as for the LH side.

Hide Display 67917A 12.INSTALL REAR DOOR SCUFF PLATE RH

HINT:: Use the same procedure as for the LH side.

Hide Display 72693 13.INSTALL REAR SEAT CUSHION LOCK HOOK

for Fixed Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394195,RM100000001I3KB_01_0020,

for Fold Down Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394196,RM100000001I3KK_01_0010,

Hide Display 14.INSTALL REAR SEAT CUSHION ASSEMBLY

for Fixed Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394195,RM100000001I3KB_01_0022,

for Fold Down Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394196,RM100000001I3KK_01_0043,

Hide Display 73350C 15.CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

for Fixed Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394195,RM100000001I3KB_01_0023,

for Fold Down Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394196,RM100000001I3KK_01_0022,

Hide Display 821H1 16.CONNECT FLOOR UNDER WIRE

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>8ZR-FXE INVERTER WITH CONVERTER>INSTALLATION202304,999999,_51,_080773,_0392172,RM100000002B8GR_01_0248,

Hide Display G3834 17.INSTALL SERVICE PLUG GRIP

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>SERVICE PLUG GRIP>INSTALLATION202304,202307,_51,_080773,_0392185,RM100000002B8JU,202307,999999,_51,_080773,_0392185,RM100000002CWGA,

Hide Display 18.PERFORM INITIALIZATION

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE202304,202307,_V1,_143216,_0598316,RM100000002B3MM,202307,202502,_V1,_143216,_0598316,RM100000002CVSW,202502,999999,_V1,_143216,_0598316,RM100000002ROZH,
