RM3660EC _54 Brake _080770 BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS _0392591 ELECTRONICALLY CONTROLLED BRAKE SYSTEM(for HV Model) C

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS ELECTRONICALLY CONTROLLED BRAKE SYSTEM(for HV Model) C11791C Multi-axis Acceleration Sensor Module "A" Supply Voltage (2WD) Circuit Voltage Out of Range

DESCRIPTION

The airbag sensor with ECU assembly has a built-in yaw rate and acceleration sensor and detects the vehicle condition.

This DTC is stored when the skid control ECU (brake actuator assembly) receives a sensor supply voltage malfunction signal from the yaw rate and acceleration sensor (airbag sensor with ECU assembly).

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	MIL	DTC Output from	Note
C11791C	Multi-axis Acceleration Sensor Module "A" Supply Voltage (2WD) Circuit Voltage Out of Range	Vehicle speed is 6 km/h (4 mph) or more and yaw rate and acceleration sensor power supply malfunction signal is received for 1 second or more.	· Wire harness or connector · Acceleration sensor (airbag sensor with ECU assembly)	Does not come on	Brake/EPB	Output ECU: skid control ECU (brake actuator assembly)

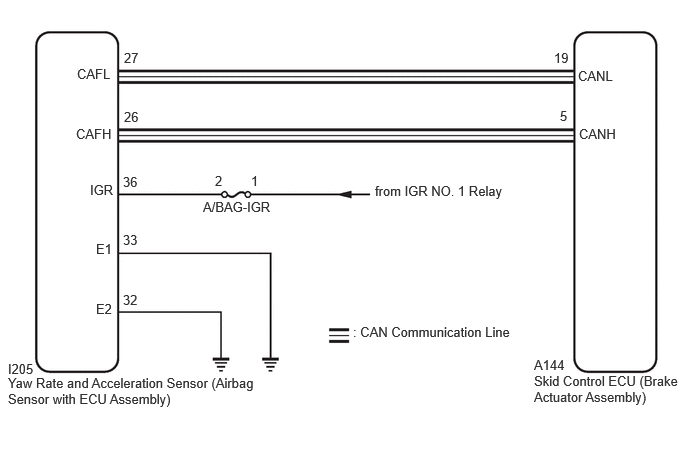

WIRING DIAGRAM

0.802,0.688 1.219,0.896 0.417,0.208 10 false CAFL 6.021,0.708 6.427,0.906 0.406,0.198 10 false CANL 0.792,1.313 1.219,1.51 0.427,0.198 10 false CAFH 6.031,1.313 6.469,1.51 0.438,0.198 10 false CANH 0.938,1.896 1.229,2.135 0.292,0.24 10 false IGR 1,2.51 1.229,2.708 0.229,0.198 10 false E1 1,3.135 1.24,3.323 0.24,0.188 10 false E2 1.292,0.521 1.5,0.729 0.208,0.208 10 false 27 1.292,1.135 1.5,1.333 0.208,0.198 10 false 26 1.281,1.813 1.469,2.021 0.188,0.208 10 false 36 1.281,2.417 1.479,2.604 0.198,0.188 10 false 33 1.281,3.042 1.469,3.229 0.188,0.188 10 false 32 5.771,0.521 5.979,0.729 0.208,0.208 10 false 19 5.833,1.125 5.979,1.313 0.146,0.188 10 false 5 2.115,2.073 2.979,2.26 0.865,0.188 10 false A/BAG-IGR 3.906,1.906 5.302,2.125 1.396,0.219 10 false from IGR NO. 1 Relay 0.083,3.76 0.625,3.948 0.542,0.188 10 false I205 0.083,3.906 2.708,4.281 2.625,0.375 10 false Yaw Rate and Acceleration Sensor (Airbag Sensor with ECU Assembly) 5.563,3.885 7.115,4.271 1.552,0.385 10 false Skid Control ECU (Brake Actuator Assembly) 5.563,3.719 6.01,3.896 0.448,0.177 10 false A144 3.677,3.375 5.354,3.583 1.677,0.208 10 false : CAN Communication Line 2.24,1.802 2.552,2 0.313,0.198 10 false 2 2.615,1.802 2.927,2 0.313,0.198 10 false 1

CAUTION / NOTICE / HINT

NOTICE:: ·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

When removing/installing a supplemental restraint systems related component, disconnect the cable from the negative (-) auxiliary battery terminal before performing the procedure.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>PRECAUTION202304,999999,_58,_080741,_0584471,RM1000000029GQF,

PROCEDURE

1.CHECK HARNESS AND CONNECTOR (POWER SOURCE TERMINAL)

0.219,0.583 0.583,0.865 0.365,0.281 2.802,2.823 2.271,2.333 true 0.177,0.229 0.49,0.385 0.313,0.156 10 false *a 0.271,0.646 0.729,0.844 0.458,0.198 10 false I205 2.771,2.833 3.229,3.031 0.458,0.198 10 false IGR

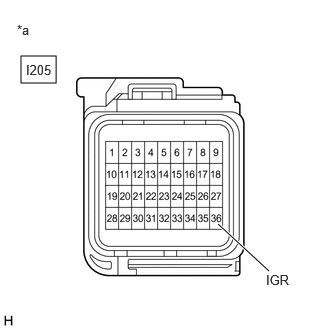

*a	Front view of wire harness connector (to Yaw Rate and Acceleration Sensor (Airbag Sensor with ECU Assembly))

Disconnect the cable from the negative (-) auxiliary battery terminal.

CAUTION:: Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>PRECAUTION202304,999999,_58,_080741,_0584471,RM1000000029GQF,

Make sure that there is no looseness at the locking part and the connecting part of the connector.

OK:: The connector is securely connected.

Disconnect the I205 yaw rate and acceleration sensor (airbag sensor with ECU assembly) connector.

Check both the connector case and the terminals for deformation and corrosion.

OK:: No deformation or corrosion.

Connect the cable to the negative (-) auxiliary battery terminal.

Turn the ignition switch to ON.

Operate all the components of the electrical system (defogger, wipers, headlights, heater blower, etc.).

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
I205-36 (IGR) - Body ground	Ignition switch ON	8 to 16 V

Result:

Proceed to
OK
NG

2.CHECK HARNESS AND CONNECTOR (GROUND TERMINAL)

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.CHECK HARNESS AND CONNECTOR (GROUND TERMINAL)

Turn the ignition switch off.

Disconnect the cable from the negative (-) auxiliary battery terminal.

CAUTION:: Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>PRECAUTION202304,999999,_58,_080741,_0584471,RM1000000029GQF,

Make sure that there is no looseness at the locking part and the connecting part of the connector.

OK:: The connector is securely connected.

Disconnect the I205 yaw rate and acceleration sensor (airbag sensor with ECU assembly) connector.

Check both the connector case and the terminals for deformation and corrosion.

OK:: No deformation or corrosion.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
I205-33 (E1) - Body ground	1 minute or more after disconnecting the cable from the negative (-) auxiliary battery terminal	Below 1 Ω
I205-32 (E2) - Body ground	1 minute or more after disconnecting the cable from the negative (-) auxiliary battery terminal	Below 1 Ω

Result:

Proceed to
OK
NG

REPLACE AIRBAG SENSOR WITH ECU ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL202304,202307,_58,_080741,_0392909,RM100000002B7V6,202307,999999,_58,_080741,_0392909,RM100000002CWN2,

REPAIR OR REPLACE HARNESS OR CONNECTOR
