RM3660EC _58 Vehicle Interior _080733 HEATING / AIR CONDITIONING _0598792 AIR CONDITIONING SYSTEM(for HV Model (8ZR-FXE)) C

HEATING / AIR CONDITIONING  AIR CONDITIONING SYSTEM(for HV Model (8ZR-FXE))  P053011  Refrigerant Pressure Sensor Circuit Short to Ground


DESCRIPTION

The air conditioning pressure sensor, which is installed to the high pressure side pipe to detect refrigerant pressure, sends a refrigerant pressure signal to the air conditioning amplifier assembly. The air conditioning amplifier assembly converts this signal to a pressure value according to the sensor characteristics and uses it to control the compressor.

This DTC is stored if refrigerant pressure on the high pressure side is extremely low.

DTC No. Detection Item DTC Detection Condition Trouble Area Memory
P053011 Refrigerant Pressure Sensor Circuit Short to Ground Diagnosis Condition:

Ignition switch ON


Malfunction:

Short (GND) in air conditioning pressure sensor circuit


Detection Time:

Continuously for 4 seconds or more


·

Refrigerant volume

·

Air conditioning pressure sensor

·

Harness or connector

·

Air conditioning amplifier assembly


Memorized

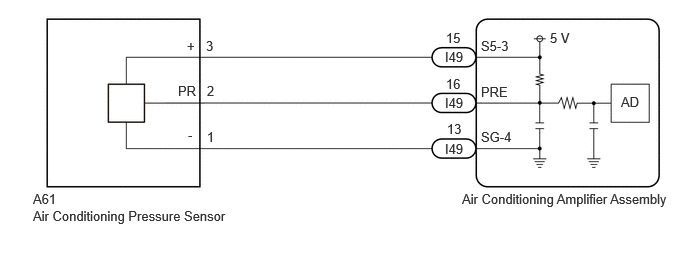

WIRING DIAGRAM

E432279E13
2.146,0.396 2.302,0.594 0.156,0.198 10 false 3 2.156,0.865 2.313,1.063 0.156,0.198 10 false 2 2.156,1.344 2.313,1.542 0.156,0.198 10 false 1 1.948,0.396 2.104,0.594 0.156,0.198 10 false + 1.854,0.865 2.125,1.063 0.271,0.198 10 false PR 1.958,1.323 2.115,1.521 0.156,0.198 10 false - 0.344,1.99 0.698,2.188 0.354,0.198 10 false A61 0.344,2.167 2.563,2.458 2.219,0.292 10 false Air Conditioning Pressure Sensor 4.813,1.99 7.021,2.229 2.208,0.24 10 false Air Conditioning Amplifier Assembly 4.646,0.313 4.896,0.542 0.25,0.229 10 false 15 4.646,0.792 4.896,0.99 0.25,0.198 10 false 16 4.656,1.26 4.917,1.469 0.26,0.208 10 false 13 5.01,0.875 5.385,1.063 0.375,0.188 10 false PRE 5.01,0.396 5.385,0.583 0.375,0.188 10 false S5-3 5.01,1.344 5.385,1.531 0.375,0.188 10 false SG-4 5.729,0.313 6.104,0.5 0.375,0.188 10 false 5 V 6.469,0.979 6.844,1.167 0.375,0.188 10 false AD 4.635,0.51 4.969,0.74 0.333,0.229 10 false I49 4.635,0.99 4.99,1.198 0.354,0.208 10 false I49 4.635,1.469 4.979,1.677 0.344,0.208 10 false I49

PROCEDURE

1.CHECK COMPARE REFRIGERANT GAS PRESSURE VALUES SHOWN ON GTS AND MANIFOLD GAUGE SET

b.

Compare the values displayed in the Data List and on the manifold gauge.

Body Electrical > Air Conditioner > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Regulator Pressure Sensor Air conditioning pressure sensor -32.768 to 32.767 MPaG Actual refrigerant pressure displayed
·

Refrigerant line (gas leak etc.)

·

Air conditioning pressure sensor circuit malfunction


Body Electrical > Air Conditioner > Data List
Tester Display
Regulator Pressure Sensor
50003 450 106

Result:
Result Proceed to
Data List value and manifold gauge set value do not match A
Data List value matches manifold gauge set value B



A

2.READ VALUE USING GTS (REGULATOR PRESSURE SENSOR)

B

2.READ VALUE USING GTS (REGULATOR PRESSURE SENSOR)
a.

Read the Data List according to the display on the GTS.

Body Electrical > Air Conditioner > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Regulator Pressure Sensor Air conditioning pressure sensor -32.768 to 32.767 MPaG Actual refrigerant pressure displayed
·

Refrigerant line (gas leak etc.)

·

Air conditioning pressure sensor circuit malfunction


Body Electrical > Air Conditioner > Data List
Tester Display
Regulator Pressure Sensor
50003 450 106
OK:

Disconnecting the A61 connector of the air conditioning pressure sensor causes the Data List value to change.



Result:
Result Proceed to
Regulator pressure sensor value changes A
Regulator pressure sensor value does not change B



A

3.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING PRESSURE SENSOR - POWER SOURCE)

B

5.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING PRESSURE SENSOR - BODY GROUND)
3.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING PRESSURE SENSOR - POWER SOURCE)
a.

Disconnect the A61 air conditioning pressure sensor connector.


b.
E432367C33
1.448,0.26 1.948,0.51 0.5,0.25 2.333,1.521 2.073,1.521 2.073,1.521 1.833,1.115 true 1.594,0.323 2.052,0.521 0.458,0.198 10 false A61 2.406,1.448 2.865,1.646 0.458,0.198 10 false + 0.625,0.292 1.083,0.49 0.458,0.198 10 false *a
*a Front view of wire harness connector
(to Air Conditioning Pressure Sensor)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
A61-3 (+) - Body ground Ignition switch ON 4.75 to 5.25 V



Result:
Proceed to
OK
NG



OK

NG

4.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - AIR CONDITIONING PRESSURE SENSOR)
4.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - AIR CONDITIONING PRESSURE SENSOR)
a.

Disconnect the A61 air conditioning pressure sensor connector.


b.

Disconnect the I49 air conditioning amplifier assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A61-3 (+) - I49-15 (S5-3) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING PRESSURE SENSOR - BODY GROUND)
a.
E432367C34
1.448,0.26 1.948,0.51 0.5,0.25 2.198,1.531 1.938,1.531 1.938,1.531 1.698,1.125 true 1.594,0.313 2.052,0.51 0.458,0.198 10 false A61 2.26,1.458 2.719,1.656 0.458,0.198 10 false PR 0.625,0.292 1.083,0.49 0.458,0.198 10 false *a
*a Front view of wire harness connector
(to Air Conditioning Pressure Sensor)


Disconnect the A61 air conditioning pressure sensor connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
A61-2 (PR) - Body ground Ignition switch ON 3.0 to 5.25 V



Result:
Proceed to
OK
NG



OK

NG

6.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING PRESSURE SENSOR - AIR CONDITIONING AMPLIFIER ASSEMBLY)
6.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING PRESSURE SENSOR - AIR CONDITIONING AMPLIFIER ASSEMBLY)
a.

Disconnect the A61 air conditioning pressure sensor connector.


b.

Disconnect the I49 air conditioning amplifier assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A61-2 (PR) or I49-16 (PRE) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
