LIGHTING (EXT)  REAR LIGHT ASSEMBLY(for GTMC Made)  INSPECTION


PROCEDURE

Hide 81590A 1.INSPECT REAR LIGHT ASSEMBLY LH

a.
E371639C44
2,1.958 2.5,1.958 true 2,2.375 2.5,2.375 true 2.552,1.865 2.865,2.063 0.313,0.198 10 false E 0.167,0.167 0.479,0.323 0.313,0.156 10 false *a 2.542,2.302 2.854,2.5 0.313,0.198 10 false B

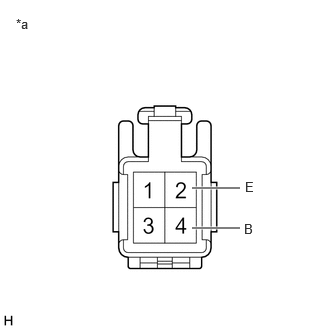

*a Component without harness connected
(Rear Light Assembly LH)


Illumination Inspection

i.

Apply auxiliary battery voltage to the rear light assembly LH and check that the light illuminates.

OK:
Condition Specified Condition
Auxiliary battery positive (+) → Terminal 4 (B)
Auxiliary battery negative (-) → Terminal 2 (E) 		Rear fog light illuminates


If the result is not as specified, replace the rear light assembly LH.



Hide 81580D 2.INSPECT REAR LIGHT ASSEMBLY RH

a.
E371639C43
1,2 1.417,2 true 2,1.979 2.583,1.979 true 2.625,1.885 2.938,2.083 0.313,0.198 10 false E 0.167,0.167 0.479,0.323 0.313,0.156 10 false *a 0.833,1.917 1.146,2.115 0.313,0.198 10 false B
*a Component without harness connected
(Rear Light Assembly RH)


Illumination Inspection

i.

Apply auxiliary battery voltage to the rear light assembly RH and check that the light illuminates.

OK:
Condition Specified Condition
Auxiliary battery positive (+) → Terminal 1 (B)
Auxiliary battery negative (-) → Terminal 2 (E) 		Back-up light illuminates


If the result is not as specified, replace the rear light assembly RH.
