MAINTENANCE  AIR CONDITIONING FILTER  INSTALLATION

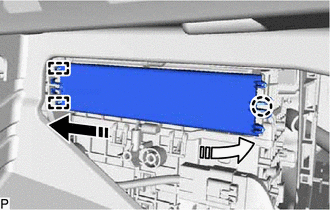

Engage the 2 guides on the cutout side of the air filter case and then engage the 2 guides as shown in the illustration to install the clean air filter.

4.708,2.75 4.708,2.156 true 1.906,4.198 2.406,3.813 false 4.635,2.792 4.927,3.063 0.292,0.271 10 false *a 2.427,3.708 2.75,3.979 0.323,0.271 10 false *b

*a	Cutout	*b	Rib
	Install in this Direction (1)		Install in this Direction (2)

NOTICE:

·

Make sure that the "UP" marks are facing the correct direction before installing the clean air filter.

·

Make sure that there is no clearance between the clean air filter and air filter case and that the clean air filter is not deformed.

0,0 0,0 false

Install in this Direction

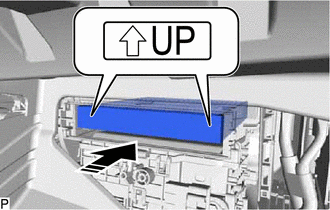

Install the air filter sub-assembly as shown in the illustration.

NOTICE:

Make sure that the "UP" mark is facing the correct direction before installing the air filter sub-assembly.

0,0 0,0 false

Install in this Direction

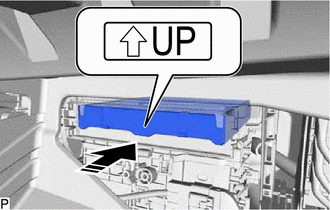

Install the clean air filter as shown in the illustration.

NOTICE:

Make sure that the "UP" mark is facing the correct direction before installing the air filter sub-assembly.
