BRAKE SYSTEM (OTHER)  BRAKE FLUID(for HV Model)  COMPONENTS

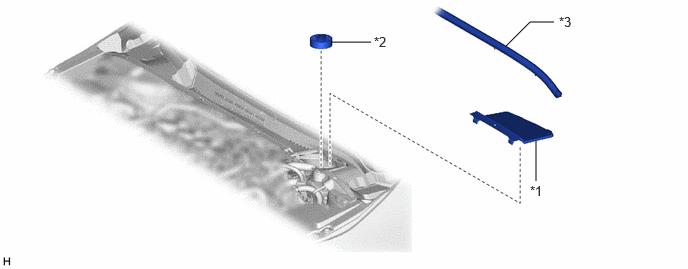

ILLUSTRATION

5.583,1.469 5.583,1.885 false 3.448,0.438 3.865,0.438 false 5.271,0.479 5.521,0.229 5.521,0.229 5.771,0.229 false 5.521,1.906 5.906,2.177 0.385,0.271 10 false *1 3.896,0.354 4.281,0.625 0.385,0.271 10 false *2 5.823,0.146 6.208,0.417 0.385,0.271 10 false *3

*1	CENTER COWL TOP VENTILATOR LOUVER	*2	BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY
*3	HOOD TO COWL TOP SEAL	-	-

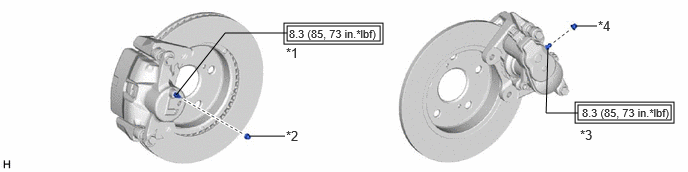

ILLUSTRATION

2.99,0.271 3.958,0.427 0.969,0.156 6.021,1.094 6.99,1.25 0.969,0.156 2.958,0.24 3.99,0.458 1.031,0.219 5.99,1.063 7.021,1.281 1.031,0.219 2.594,1.417 2.969,1.417 false 1.833,0.99 2.344,0.344 2.344,0.344 2.99,0.344 false 5.99,0.271 6.219,0.271 false 5.708,0.5 5.688,1.177 5.688,1.177 6.021,1.177 false 2.979,1.333 3.292,1.531 0.313,0.198 10 false *2 2.979,0.469 3.292,0.667 0.313,0.198 10 false *1 6.229,0.188 6.542,0.385 0.313,0.198 10 false *4 3.01,0.281 4.365,0.51 1.354,0.229 8 false 8.3 (85, 73 in.*lbf) 6.063,1.104 7,1.344 0.938,0.24 8 false 8.3 (85, 73 in.*lbf) 6.042,1.323 6.354,1.521 0.313,0.198 10 false *3

*1	FRONT DISC BRAKE BLEEDER PLUG	*2	FRONT DISC BRAKE BLEEDER PLUG CAP
*3	REAR DISC BRAKE BLEEDER PLUG	*4	REAR DISC BRAKE BLEEDER PLUG CAP
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	-	-
