WIPER / WASHER  WASHER NOZZLE  ON-VEHICLE INSPECTION

Operate the washer nozzle sub-assemblies and check the position that the washer fluid contacts the windshield.

Standard:

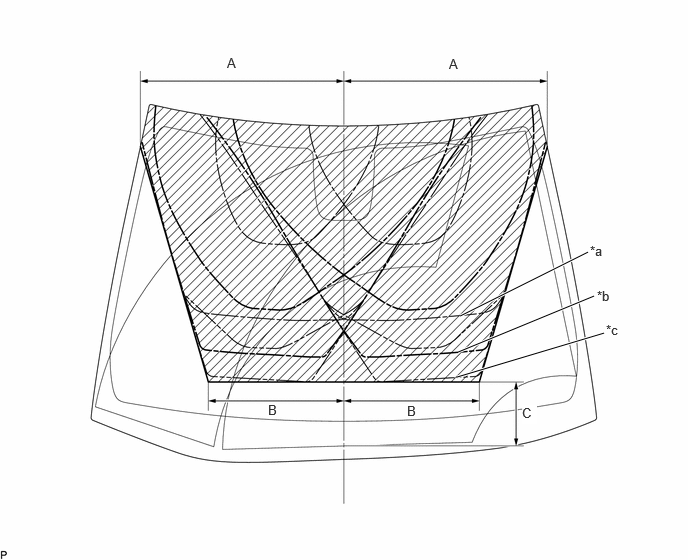

Center of washer fluid contacts the windshield in the areas shown in the illustration.

5.167,3.729 6.5,3.063 true 5.167,3.927 6.583,3.344 true 5.083,4.167 6.583,3.583 true 2.917,0.469 3.073,0.667 0.156,0.198 10 false A 4.344,0.469 4.5,0.667 0.156,0.198 10 false A 3.292,5.385 3.448,5.583 0.156,0.198 10 false B 3.927,5.385 4.083,5.583 0.156,0.198 10 false B 2.677,4.5 2.833,4.698 0.156,0.198 10 true C 6.521,2.969 6.833,3.167 0.313,0.198 10 false *a 6.604,3.25 6.917,3.448 0.313,0.198 10 false *b 6.604,3.5 6.917,3.698 0.313,0.198 10 false *c

*a	Upper Limit	*b	Standard
*c	Lower Limit	-	-
	Measurement	-	-

Standard Measurement:

Area	Measurement	Area	Measurement
A	390.9 mm (15.4 in.)	B	154.8 mm (6.09 in.)
C	152.9 mm (6.02 in.)	-	-

HINT:

If the result is not as specified, replace the washer nozzle sub-assembly.

Operate the washer nozzle sub-assemblies and check the position that the washer fluid contacts the windshield.

Standard:

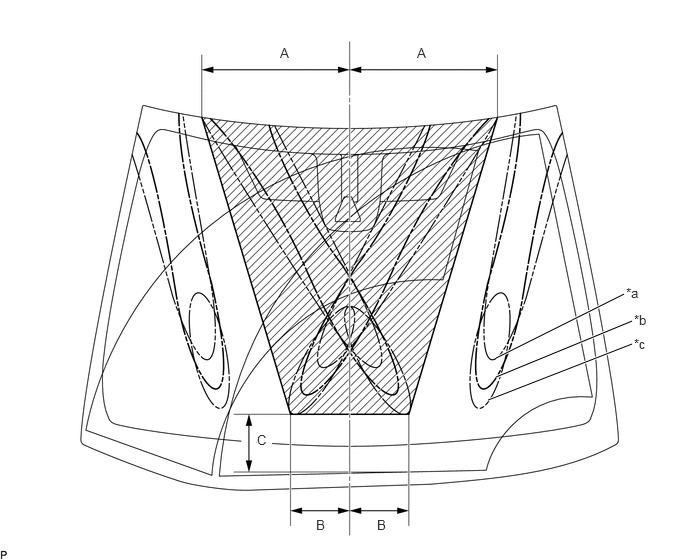

Center of washer fluid contacts the windshield in the areas shown in the illustration.

5.135,3.385 6.469,2.719 true 5.063,3.625 6.479,3.042 true 4.948,4.031 6.448,3.448 true 2.76,0.552 2.917,0.75 0.156,0.198 10 false A 4.323,0.552 4.479,0.75 0.156,0.198 10 false A 3.177,5.125 3.333,5.323 0.156,0.198 10 false B 3.875,5.115 4.031,5.313 0.156,0.198 10 false B 4.615,4.271 4.771,4.469 0.156,0.198 10 true C 6.479,2.615 6.792,2.813 0.313,0.198 10 false *a 6.5,2.948 6.813,3.146 0.313,0.198 10 false *b 6.469,3.354 6.781,3.552 0.313,0.198 10 false *c

*a	Upper Limit	*b	Standard
*c	Lower Limit	-	-
	Measurement	-	-

Standard Measurement:

Area	Measurement	Area	Measurement
A	402.5 mm (15.8 in.)	B	183.1 mm (7.21 in.)
C	130.4 mm (5.13 in.)	-	-

HINT:

If the result is not as specified, replace the washer nozzle sub-assembly.

Operate the washer nozzle sub-assemblies and check the position that the washer fluid contacts the windshield.

Standard:

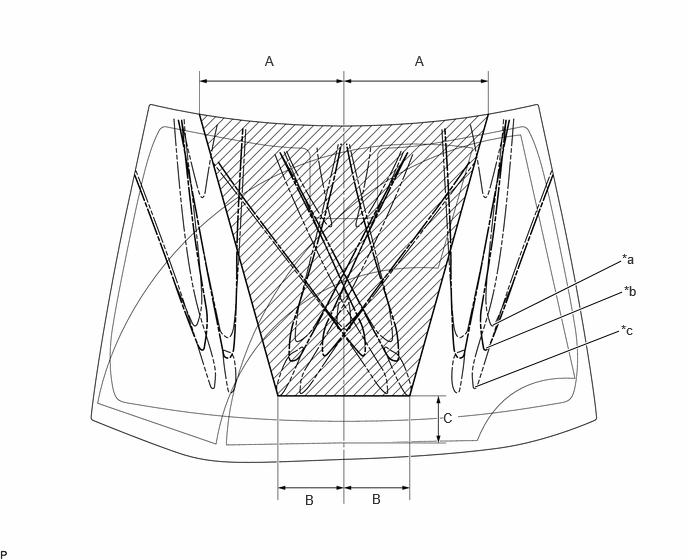

Center of washer fluid contacts the windshield in the areas shown in the illustration.

4.427,2.667 6.156,1.979 true 5.302,2.615 6.26,2.344 true 5.135,3.146 6.333,2.844 true 2.438,0.563 2.594,0.76 0.156,0.198 10 false A 4.656,0.563 4.813,0.76 0.156,0.198 10 false A 2.792,4.469 2.948,4.667 0.156,0.198 10 false B 4.188,4.458 4.344,4.656 0.156,0.198 10 false B 5.448,4.281 5.604,4.479 0.156,0.198 10 true C 6.198,1.854 6.51,2.052 0.313,0.198 10 false *a 6.292,2.26 6.604,2.458 0.313,0.198 10 false *b 6.354,2.74 6.667,2.938 0.313,0.198 10 false *c

*a	Upper Limit	*b	Standard
*c	Lower Limit	-	-
	Measurement	-	-

Standard Measurement:

Area	Measurement	Area	Measurement
A	563 mm (22.2 in.)	B	378.9 mm (14.9 in.)
C	143.3 mm (5.64 in.)	-	-

HINT:

If the result is not as specified, replace the washer nozzle sub-assembly.
