8ZR-FXE EMISSION CONTROL  FUEL TANK PRESSURE SENSOR  INSTALLATION

0.979,1.094 1.083,1.406 1.083,1.406 1.24,1.406 true 2.406,1.094 2.51,1.406 2.51,1.406 2.667,1.406 true 2.719,0.885 2.948,0.885 false 0.844,1.271 0.948,1.583 0.948,1.583 1.104,1.583 true 1.26,1.323 1.458,1.542 0.198,0.219 10 false *1 1.125,1.521 1.365,1.74 0.24,0.219 10 false *a 2.677,1.333 2.906,1.563 0.229,0.229 10 false *b 3,0.802 3.198,1.021 0.198,0.219 10 false *1

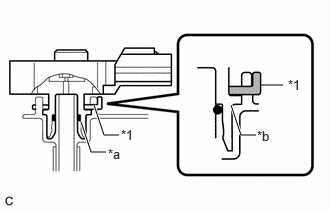

*1	Tube Joint Clip
*a	O-ring
*b	Collar

Push the fuel tank pressure sensor (vapor pressure sensor) onto the fuel tank assembly, then install the tube joint clip.

NOTICE:

·

Check that there are no scratches or foreign matter around the connecting parts of the fuel tank pressure sensor (vapor pressure sensor) and fuel suction plate sub-assembly before performing this work.

·

Check that the fuel suction plate sub-assembly is securely inserted to the end of the fuel tank pressure sensor (vapor pressure sensor).

·

Check that the tube joint clip is on the collar of the fuel tank pressure sensor (vapor pressure sensor).

·

After installing the tube joint clip, check that the fuel tank pressure sensor (vapor pressure sensor) cannot be pulled out.
