8ZR-FXE EMISSION CONTROL  FUEL VAPOR CONTAINMENT VALVE  REMOVAL

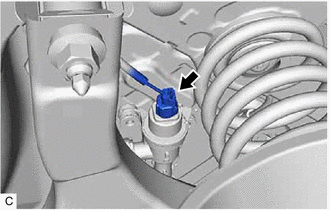

Disconnect the fuel vapor containment valve (fuel tank solenoid main valve assembly) connector.

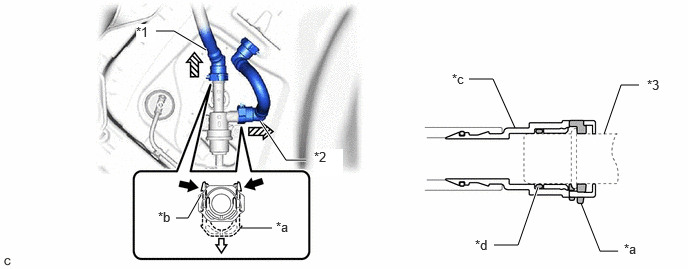

Disconnect the fuel tank vent hose sub-assembly and fuel tank vent hose from the fuel vapor containment valve (fuel tank solenoid main valve assembly).

6.292,1.396 6.469,0.885 6.469,0.885 6.656,0.885 false 4.885,0.823 5.135,0.823 5.135,0.823 5.365,1.333 false 6.052,2.115 6.25,2.615 6.25,2.615 6.438,2.615 false 5.146,2.552 5.396,2.552 5.396,2.552 5.604,1.948 true 1.594,0.323 1.813,0.323 1.813,0.323 2.146,0.521 true 2.708,1.26 2.979,1.667 2.979,1.667 3.188,1.667 true 2.49,2.375 2.833,2.375 false 1.833,2.271 1.958,2.271 1.958,2.271 2.094,2.031 true 1.417,0.25 1.625,0.438 0.208,0.188 10 true *1 6.74,0.802 7.052,1.156 0.313,0.354 10 false *3 2.875,2.281 3.198,2.5 0.323,0.219 10 false *a 1.646,2.177 1.958,2.406 0.313,0.229 10 false *b 4.708,0.74 5.042,1.031 0.333,0.292 10 false *c 4.948,2.469 5.26,2.75 0.313,0.281 10 false *d 3.271,1.552 3.573,1.844 0.302,0.292 10 true *2 6.5,2.51 6.823,2.729 0.323,0.219 10 false *a

*1	Fuel Tank Vent Hose Sub-assembly	*2	Fuel Tank Vent Hose
*3	Pipe (Fuel Vapor Containment Valve (Fuel Tank Solenoid Main Valve Assembly))	-	-
*a	Retainer	*b	Tab
*c	Tube Connector	*d	O-ring
	Pinch		Pull
	Pull off	-	-

NOTICE:

·

Remove any dirt or foreign matter on the tube connectors before performing this work.

·

Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connectors have an O-ring that seals the pipe.

·

Perform this work by hand. Do not use any tools.

·

Do not forcibly bend, twist or turn the fuel tank vent hose sub-assembly and fuel tank vent hose.

·

Protect the disconnected parts by covering them with plastic bags after disconnecting the fuel tank vent hose sub-assembly and fuel tank vent hose.

·

If the tube connector and pipe are stuck, push and pull to release them.

HINT:

Do not remove the retainer.

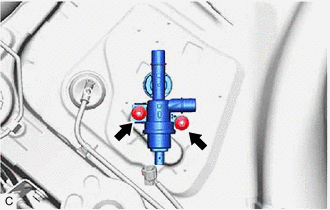

Remove the 2 nuts and fuel vapor containment valve (fuel tank solenoid main valve assembly) from the vehicle body.
