8ZR-FXE EMISSION CONTROL  DIFFERENTIAL PRESSURE SENSOR  ON-VEHICLE INSPECTION


PROCEDURE

Hide 89481B 1.INSPECT DIFFERENTIAL PRESSURE SENSOR

a.

Connect the GTS to the DLC3.


b.

Turn the power switch on (IG).


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine / Data List / GPF Differential Pressure Offset Bank1.

Powertrain > Engine > Data List
Tester Display
GPF Differential Pressure Offset Bank1
50003 372 1184

e.

Slide the clip and disconnect the No. 1 vacuum transmitting pipe sub-assembly from the differential pressure sensor.


f.
A540103E01
2.083,1.063 2.354,0.781 2.354,0.781 2.813,0.781 true 2.844,0.667 3.125,0.865 0.281,0.198 10 true SST

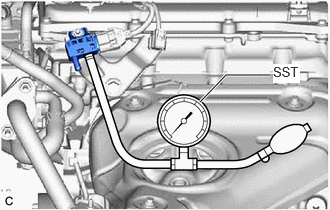

Connect SST to the differential pressure sensor.

SST
09992-00242


g.

Using SST, apply pressure to the differential pressure sensor.


h.

Check the pressure value of the differential pressure sensor.

Standard:
GTS Display Condition Specified Condition
GPF Differential Pressure Offset Bank1 Power switch on (IG) When applying 20 kPa (2.9 psi): 20 kPa (2.9 psi)
When applying 40 kPa (5.8 psi): 40 kPa (5.8 psi)


NOTICE:

Perform the inspection within the range of 0 to 98 kPa (0 to 1 kg/cm2, 0 to 14.2 psi).


If the result is not as specified, check the differential pressure sensor circuit.


i.

Disconnect SST from the differential pressure sensor.


j.

Connect the No. 1 vacuum transmitting pipe sub-assembly to the differential pressure sensor and slide the clip to secure it.
