8ZR-FXE EMISSION CONTROL  EXHAUST GAS TEMPERATURE SENSOR  COMPONENTS

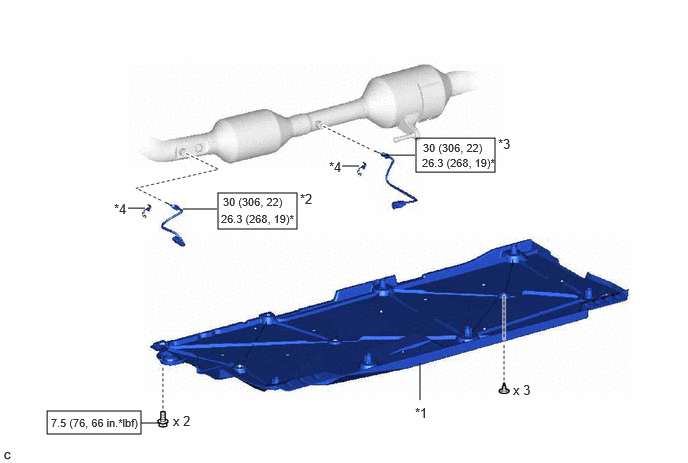

ILLUSTRATION

0.49,4.281 1.469,4.521 0.979,0.24 4.333,1.438 5.156,1.792 0.823,0.354 2.271,2.01 3.094,2.385 0.823,0.375 4.375,4.167 4.375,3.781 false 1.469,4.406 1.656,4.406 false 3.969,1.615 4.323,1.615 false 1.906,2.177 2.26,2.177 false 3.563,1.729 3.74,1.729 false 1.333,2.167 1.51,2.167 false 1.802,4.302 2.26,4.5 0.458,0.198 10 false x 2 5.344,3.979 5.802,4.177 0.458,0.198 10 false x 3 4.323,4.219 4.635,4.417 0.313,0.198 10 false *1 0.531,4.333 1.573,4.51 1.042,0.177 8 false 7.5 (76, 66 in.*lbf) 5.188,1.417 5.5,1.615 0.313,0.198 10 false *3 4.406,1.469 5.26,1.635 0.854,0.167 8 false 30 (306, 22) 4.396,1.625 5.448,1.813 1.052,0.188 8 false 26.3 (268, 19)* 2.323,2.031 3.177,2.198 0.854,0.167 8 false 30 (306, 22) 2.302,2.208 3.354,2.396 1.052,0.188 8 false 26.3 (268, 19)* 3.125,1.99 3.438,2.188 0.313,0.198 10 false *2 3.427,1.656 3.74,1.854 0.313,0.198 10 false *4 1.188,2.094 1.5,2.292 0.313,0.198 10 false *4

*1	FRONT FLOOR COVER LH	*2	NO. 1 EXHAUST GAS TEMPERATURE SENSOR
*3	NO. 2 EXHAUST GAS TEMPERATURE SENSOR	*4	WIRE HARNESS CLAMP BRACKET
	N*m (kgf*cm, ft.*lbf): Specified torque	*	For use with a union nut wrench
