DOOR LOCK REAR DOOR LOCK INSPECTION

Hide Display 69060A 1.INSPECT REAR DOOR LOCK WITH MOTOR ASSEMBLY LH (w/o Cover)

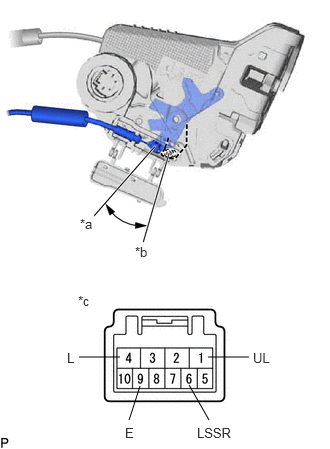

a.

0.792,3.729 1.25,3.729 false 2.167,3.729 2.625,3.729 false 1.333,4.396 1.458,4.01 false 1.99,4.01 2.302,4.385 false 2.385,2.198 2.698,2.354 0.313,0.156 10 false *a 1.865,2.458 2.177,2.615 0.313,0.156 10 false *b 0.792,3 1.104,3.156 0.313,0.156 10 false *c 0.667,3.646 0.833,3.906 0.167,0.26 10 false L 2.677,3.646 2.906,3.875 0.229,0.229 10 false UL 2.156,4.438 2.844,4.646 0.688,0.208 10 false LSSR 1.281,4.448 1.51,4.646 0.229,0.198 10 false E

*a	Unlock
*b	Lock
*c	Component without harness connected (Rear Door Lock with Motor Assembly LH)

Check the operation of the door lock motor.

i.

Apply auxiliary battery voltage and check the operation of the door lock motor.

OK:

Auxiliary Battery Connection	Result
Auxiliary battery positive (+) → Terminal 4 (L) Auxiliary battery negative (-) → Terminal 1 (UL)	Locks
Auxiliary battery positive (+) → Terminal 1 (UL) Auxiliary battery negative (-) → Terminal 4 (L)	Unlocks

If the result is not as specified, replace the rear door lock with motor assembly LH.

b.

Check the operation of the unlock detection switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
6 (LSSR) - 9 (E)	Locked	10 kΩ or higher
6 (LSSR) - 9 (E)	Unlocked	Below 1 Ω

If the result is not as specified, replace the rear door lock with motor assembly LH.

Hide Display 69050A 2.INSPECT REAR DOOR LOCK WITH MOTOR ASSEMBLY RH (w/o Cover)

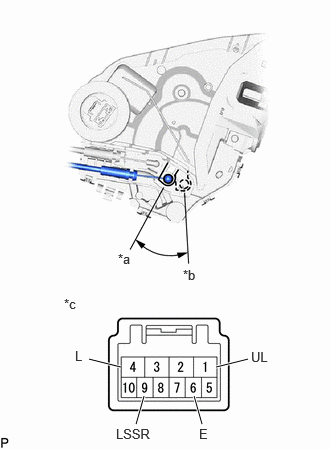

a.

2.167,3.719 2.594,3.719 false 0.823,3.719 1.25,3.719 false 1.344,4.375 1.458,4.021 false 1.969,4.01 2.177,4.375 false 0.833,2.25 1.146,2.406 0.313,0.156 10 false *a 1.406,2.542 1.719,2.698 0.313,0.156 10 false *b 0.813,3.052 1.125,3.208 0.313,0.156 10 false *c 2.052,4.427 2.594,4.594 0.542,0.167 10 false LSSR 2.635,3.646 2.948,3.927 0.313,0.281 10 false UL 1.302,4.427 1.521,4.615 0.219,0.188 10 false E 0.698,3.646 0.917,3.833 0.219,0.188 10 false L

*a	Unlock
*b	Lock
*c	Component without harness connected (Rear Door Lock with Motor Assembly RH)

Check the operation of the door lock motor.

i.

Apply auxiliary battery voltage and check the operation of the door lock motor.

OK:

Auxiliary Battery Connection	Result
Auxiliary battery positive (+) → Terminal 4 (L) Auxiliary battery negative (-) → Terminal 1 (UL)	Locks
Auxiliary battery positive (+) → Terminal 1 (UL) Auxiliary battery negative (-) → Terminal 4 (L)	Unlocks

If the result is not as specified, replace the rear door lock with motor assembly RH.

b.

Check the operation of the unlock detection switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
6 (LSSR) - 9 (E)	Locked	10 kΩ or higher
6 (LSSR) - 9 (E)	Unlocked	Below 1 Ω

If the result is not as specified, replace the rear door lock with motor assembly RH.

Hide Display 69060A 3.INSPECT REAR DOOR LOCK WITH MOTOR ASSEMBLY LH (w/ Cover)

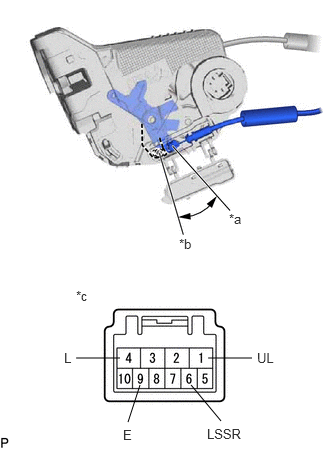

a.

0.917,3.74 1.25,3.823 true 2.25,3.833 2.583,3.75 true 2.083,4.417 2,4.125 true 1.417,4.417 1.5,4.125 true 2.188,2.625 2.5,2.781 0.313,0.156 10 false *a 1.479,2.76 1.792,2.917 0.313,0.156 10 false *b 0.667,3.083 0.917,3.333 0.25,0.25 10 false *c 2.625,3.656 2.938,3.854 0.313,0.198 10 false UL 0.781,3.625 0.938,3.823 0.156,0.198 10 false L 1.969,4.438 2.583,4.635 0.615,0.198 10 false LSSR 1.344,4.438 1.5,4.635 0.156,0.198 10 false E

*a	Unlock
*b	Lock
*c	Component without harness connected (Rear Door Lock with Motor Assembly LH)

Check the operation of the door lock motor.

i.

Apply auxiliary battery voltage and check the operation of the door lock motor.

OK:

Auxiliary Battery Connection	Result
Auxiliary battery positive (+) → Terminal 4 (L) Auxiliary battery negative (-) → Terminal 1 (UL)	Locks
Auxiliary battery positive (+) → Terminal 1 (UL) Auxiliary battery negative (-) → Terminal 4 (L)	Unlocks

If the result is not as specified, replace the rear door lock with motor assembly LH.

b.

Check the operation of the unlock detection switch. (w/ Door Unlock Detection Switch)

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
6 (LSSR) - 9 (E)	Locked	10 kΩ or higher
6 (LSSR) - 9 (E)	Unlocked	Below 1 Ω

If the result is not as specified, replace the rear door lock with motor assembly LH.

Hide Display 69050A 4.INSPECT REAR DOOR LOCK WITH MOTOR ASSEMBLY RH (w/ Cover)

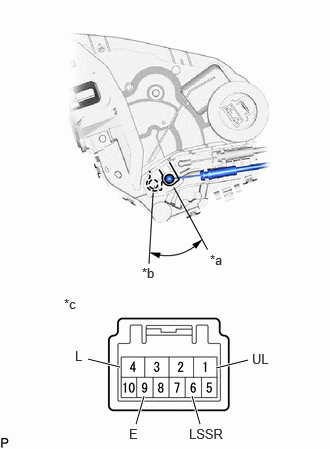

a.

2.104,4.417 2.021,4.125 true 1.26,3.823 0.927,3.74 true 2.25,3.823 2.583,3.74 true 1.417,4.417 1.5,4.125 true 1.229,2.615 1.542,2.771 0.313,0.156 10 false *a 1.906,2.781 2.219,2.938 0.313,0.156 10 false *b 0.667,3.083 1,3.333 0.333,0.25 10 false *c 2.615,3.635 2.927,3.833 0.313,0.198 10 false UL 0.781,3.625 0.938,3.823 0.156,0.198 10 false L 1.208,4.438 1.823,4.635 0.615,0.198 10 false LSSR 2.073,4.438 2.229,4.635 0.156,0.198 10 false E

*a	Unlock
*b	Lock
*c	Component without harness connected (Rear Door Lock with Motor Assembly RH)

Check the operation of the door lock motor.

i.

Apply auxiliary battery voltage and check the operation of the door lock motor.

OK:

Auxiliary Battery Connection	Result
Auxiliary battery positive (+) → Terminal 4 (L) Auxiliary battery negative (-) → Terminal 1 (UL)	Locks
Auxiliary battery positive (+) → Terminal 1 (UL) Auxiliary battery negative (-) → Terminal 4 (L)	Unlocks

If the result is not as specified, replace the rear door lock with motor assembly RH.

b.

Check the operation of the unlock detection switch. (w/ Door Unlock Detection Switch)

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
9 (LSSR) - 6 (E)	Locked	10 kΩ or higher
9 (LSSR) - 6 (E)	Unlocked	Below 1 Ω

If the result is not as specified, replace the rear door lock with motor assembly RH.
