SEAT  REAR SEAT ASSEMBLY(for Fold Down Seat Type)  DISASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.


PROCEDURE

Hide 72646 1.REMOVE REAR SEATBACK STOP BUTTON GROMMET (for LH Side)

a.
B534712

Disengage the 3 claws to remove the rear seatback stop button grommet.


Hide 2.REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY LH (for LH Side)

a.
B534713C01
0,0 0,0 false
V100155

Fastener


Disengage the 2 fasteners.


b.
B534714C01
0,0 0,0 false
V100155

Fastener

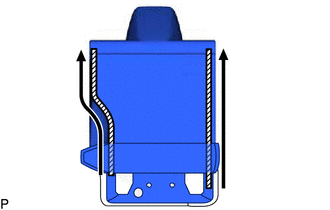

Open the 2 fasteners as shown in the illustration.


c.
B534716

Disengage the 5 hooks.


d.

w/ Removable Headrest:

i.
B534763C01
0,0 0,0 false
V113147

Remove in this Direction

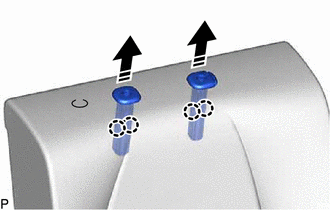

Disengage the 4 claws and remove the 2 rear seat headrest supports as shown in the illustration.



e.
B534718C01
0,0 0,0 false
V113147

Remove in this Direction

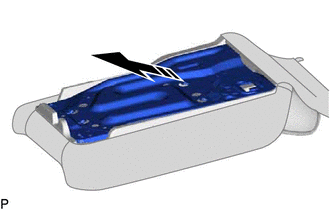

Remove the rear seatback frame sub-assembly LH from the separate type rear seatback cover with pad as shown in the illustration.


Hide 71078S 3.REMOVE SEPARATE TYPE REAR SEATBACK COVER (for LH Side)

a.

w/ Removable Headrest:

i.

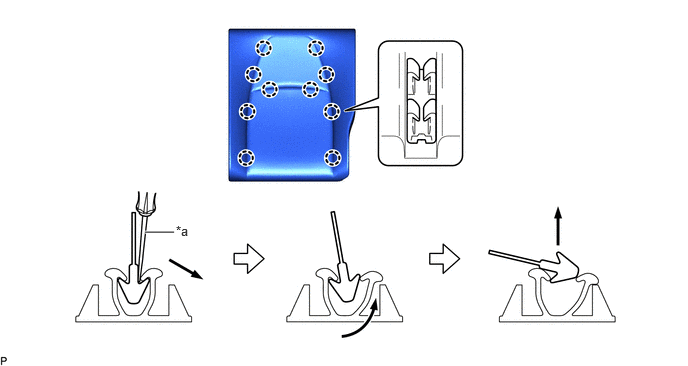

Using a screwdriver, disengage the 10 claws and remove the separate type rear seatback cover from the separate type rear seatback pad as shown in the illustration.

B517513C01
1.51,2.417 1.813,2.417 true 1.833,2.323 2.146,2.521 0.313,0.198 10 false *a
*a Screwdriver - -




b.

w/ Non-removable Headrest:

i.

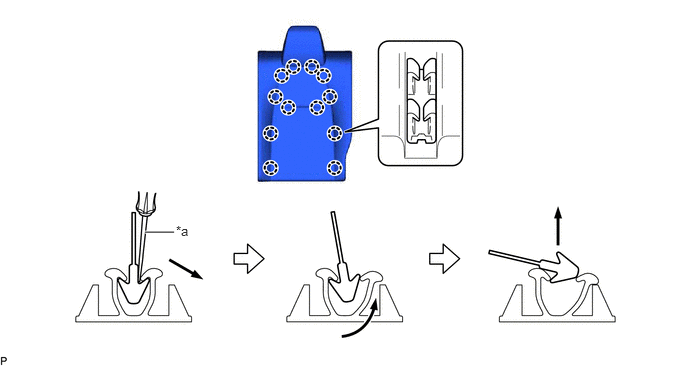

Using a screwdriver, disengage the 12 claws and remove the separate type rear seatback cover from the separate type rear seatback pad as shown in the illustration.

B534723C01
1.51,2.417 1.813,2.417 true 1.833,2.323 2.146,2.521 0.313,0.198 10 false *a
*a Screwdriver - -




Hide 72661C 4.REMOVE REAR SEATBACK LOCK RELEASE BUTTON (for LH Side)

a.
B534720C01
0,0 0,0 false
V113147

Remove in this Direction

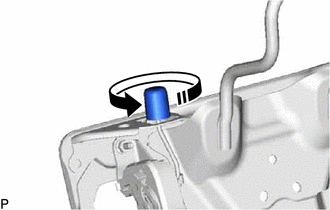

Turn the rear seatback lock release button counterclockwise and remove it.


Hide 72640A 5.REMOVE REAR SEATBACK LOCK ASSEMBLY LH (for LH Side)

a.
B534722

Remove the 2 nuts and rear seatback lock assembly LH.


Hide 72848A 6.REMOVE NO. 1 SEAT ARMREST CAP (for RH Side)

a.

w/ Armrest:

i.
B534727

Disengage the 4 claws to remove the No. 1 seat armrest cap.



Hide 72830 7.REMOVE REAR SEAT CENTER ARMREST ASSEMBLY (for RH Side)

a.

w/ Armrest:

i.
B546664

Remove the bolt and bush.


ii.
B546665C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Disengage the pin and remove the rear seat center armrest assembly as shown in the illustration.


iii.
B546667C01
0,0 0,0 false
V113147

Remove in this Direction

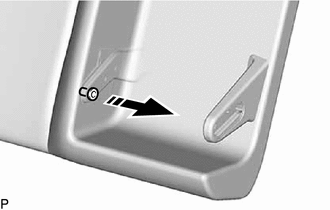

Remove the bush as shown in the illustration.



Hide 71349C 8.REMOVE REAR SEATBACK HINGE COVER (for RH Side)

a.

w/ Armrest:

i.
B534733C01
0,0 0,0 false
V113147

Remove in this Direction

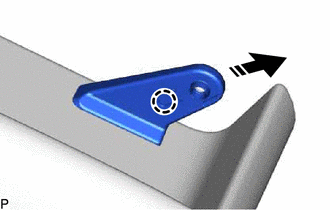

Disengage the claw as shown in the illustration to remove the rear seatback hinge cover.



Hide 72806D 9.REMOVE REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY (for RH Side)

a.

w/ Armrest:

i.
B534745C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)

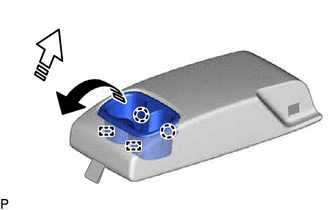

Disengage the 2 claws and 2 guides as shown in the illustration to remove the rear seat center armrest cup holder sub-assembly.



Hide 10.REMOVE REAR SEAT CENTER ARMREST COVER SUB-ASSEMBLY (for RH Side)

a.

for TFTM Made with Armrest:

i.
B547085

Disengage the hook and remove the rear seat center armrest cover sub-assembly.



Hide 73345 11.REMOVE REAR SEAT CENTER SHOULDER BELT GUIDE (for RH Side)

a.
B534726

Remove the 2 screws.


b.

Disengage the guide and remove the rear seat center shoulder belt guide.


Hide 12.REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY RH (for RH Side)

a.
B534735C01
0,0 0,0 false
V100155

Fastener


Disengage the 3 fasteners.


b.
B534736C01
0,0 0,0 false
V100155

Fastener

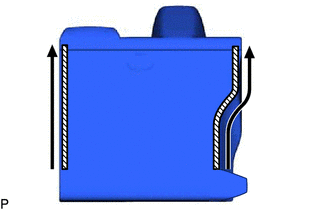

Open the 2 fasteners as shown in the illustration.


c.
B547655

Disengage the 7 hooks.


d.

w/ Removable Headrest:

i.
B534759C01
0,0 0,0 false
V113147

Remove in this Direction

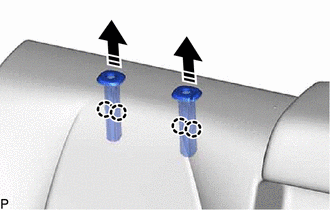

Disengage the 4 claws and remove the 2 rear seat headrest supports as shown in the illustration.



e.
B534740C01
0,0 0,0 false
V113147

Remove in this Direction

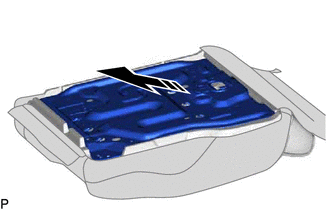

Remove the rear seatback frame sub-assembly RH from the separate type rear seatback cover with pad as shown in the illustration.


Hide 71077S 13.REMOVE SEPARATE TYPE REAR SEATBACK COVER (for RH Side)

a.

w/ Removable Headrest:

i.
B546669

Disengage the 4 hooks.


ii.

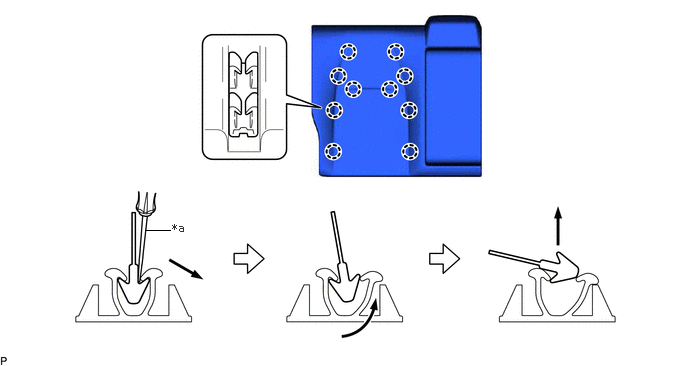

Using a screwdriver, disengage the 10 claws and remove the separate type rear seatback cover from the separate type rear seatback pad RH as shown in the illustration.

B546670C01
1.521,2.396 1.771,2.396 false 1.792,2.302 2.104,2.5 0.313,0.198 10 false *a
*a Screwdriver - -




b.

for Non-removable Headrest:

i.

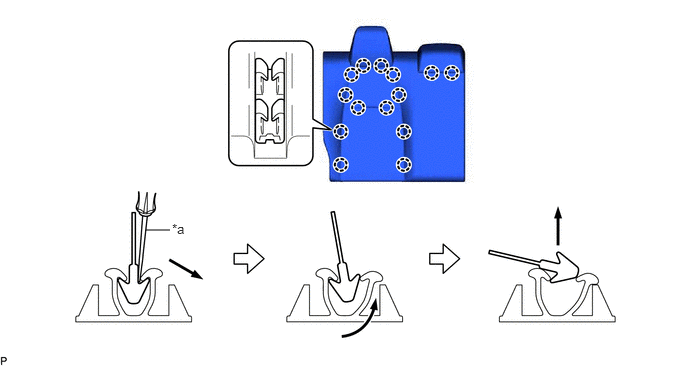

Using a screwdriver, disengage the 14 claws and remove the separate type rear seatback cover from the separate type rear seatback pad RH as shown in the illustration.

B534757C01
1.521,2.396 1.771,2.396 false 1.792,2.302 2.104,2.5 0.313,0.198 10 false *a
*a Screwdriver - -




Hide 72661C 14.REMOVE REAR SEATBACK LOCK RELEASE BUTTON (for RH Side)

HINT:

Use the same procedure as for the LH side.


Hide 72630C 15.REMOVE REAR SEATBACK LOCK ASSEMBLY RH (for RH Side)

HINT:

Use the same procedure as for the LH side.


Hide 71075B 16.REMOVE BENCH TYPE REAR SEAT CUSHION COVER (for Gasoline Model)

a.

for Type A:

i.

Remove the 11 hog rings and remove the bench type rear seat cushion lower cover.

B552631


ii.

Remove the 24 hog rings.

B552635



b.

for Type B:

i.

Remove the 11 hog rings and remove the bench type rear seat cushion lower cover.

B679852


ii.

Remove the 22 hog rings.

B679853



c.

Using a screwdriver, disengage the 16 claws and remove the bench type rear seat cushion cover from the rear seat cushion pad sub-assembly as shown in the illustration.

B517547C01
1.521,2.354 1.792,2.354 false 1.813,2.271 2.125,2.469 0.313,0.198 10 false *a
*a Screwdriver - -



Hide 71075B 17.REMOVE BENCH TYPE REAR SEAT CUSHION COVER (for HV Model)

a.

for Type A:

i.

Remove the 9 hog rings and remove the bench type rear seat cushion lower cover.

B550219


ii.

Remove the 23 hog rings.

B552637



b.

for Type B:

i.

Remove the 10 hog rings and remove the bench type rear seat cushion lower cover.

B679855


ii.

Remove the 19 hog rings.

B679856



c.

Using a screwdriver, disengage the 16 claws and remove the bench type rear seat cushion cover from the rear seat cushion pad sub-assembly as shown in the illustration.

B517547C01
1.521,2.354 1.792,2.354 false 1.813,2.271 2.125,2.469 0.313,0.198 10 false *a
*a Screwdriver - -
