EXTERIOR PANELS / TRIM REAR BUMPER(for TFTM Made) INSTALLATION

CAUTION / NOTICE / HINT

HINT:
w/ Parking Support Brake System:: When the rear bumper is damaged or deformed due to an accident or contact with other objects, etc., or the bumper installation area on the body is repaired, it is necessary to perform ultrasonic sensor detection angle measurement.; Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PARKING SUPPORT BRAKE SYSTEM>CALIBRATION202304,999999,_56,_080754,_0470654,RM100000002AHFT,

PROCEDURE

Hide Display 1.INSTALL REAR BUMPER ASSEMBLY

a.

w/ Parking Support Brake System:

i.

Connect the connector.

b.

B536386C01

0,0 0,0 false

V113147

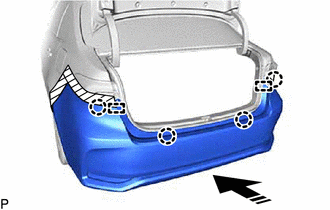

Install in this Direction

Engage the 2 guides and 4 claws as shown in the illustration.

c.

B536387C01

0,0 0,0 false

V113147

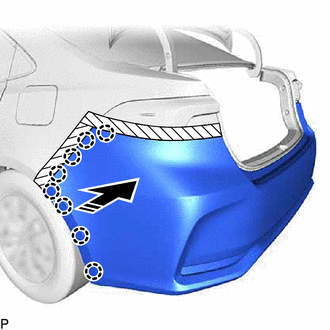

Install in this Direction

Engage the 8 claws as shown in the illustration.

HINT:: Use the same procedure for the RH side and LH side.

d.

Install the 9 clips.

e.

Install the clip.

HINT:: Use the same procedure for the RH side and LH side.

f.

Install the rear bumper assembly with the 2 screws.

Hide Display 81498 2.INSTALL REAR COMBINATION LIGHT COVER LH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for TFTM Made)>INSTALLATION201906,999999,_59,_080784,_0393161,RM100000001HW5E_05_0012,

Hide Display 81497 3.INSTALL REAR COMBINATION LIGHT COVER RH

HINT:: Use the same procedure as for the LH side.
