LIGHTING (INT)  ROOM LIGHT  INSTALLATION


PROCEDURE

Hide 81240B 1.INSTALL NO. 1 ROOM LIGHT BULB (for Bulb Type)

a.

for Type A:

i.

Install the No. 1 room light bulb to the room light switch base.



Hide 81240 2.INSTALL NO. 1 ROOM LIGHT ASSEMBLY (for Bulb Type)

a.

for Type A:

i.
E399338C01
3.083,1.021 2.885,0.396 true 2.938,1.229 2.74,0.604 true 3.042,1.031 3.354,1.188 0.313,0.156 10 true *a 2.896,1.229 3.208,1.385 0.313,0.156 10 true *b
*a Switch Part of Room Light Switch Base
*b Switch Part of Room Light Housing
V100136

Front

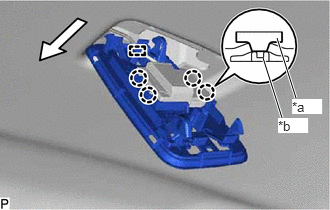

Align the switch parts as shown in the illustration and engage the 4 claws to install the room light housing to the room light switch base.


ii.

Engage the clamp.


iii.
E399336C01
0,0 0,0 false
V100136

Front

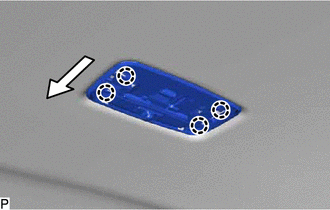

Engage the 4 claws to install the room light housing.


iv.
E399334C01
0,0 0,0 false
V100136

Front


Engage the 4 claws to install the room light lens.



Hide 81360U 3.INSTALL SPOT LIGHT BULB (for Bulb Type)

a.

for Type B:

i.

Install the 2 spot light bulbs to the room light housing.



Hide 4.INSTALL SPOT LIGHT LENS RH (for Bulb Type)

a.

for Type B:

i.
E411665

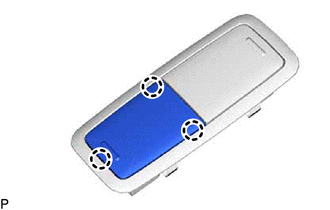

Engage the 3 claws to install the spot light lens RH.



Hide 5.INSTALL SPOT LIGHT LENS LH (for Bulb Type)

a.

for Type B:

HINT:

Use the same procedure as for the RH side.



Hide 81360T 6.INSTALL SPOT LIGHT ASSEMBLY (for Bulb Type)

a.

for Type B:

i.

Connect the connector.


ii.
E411663C01
0,0 0,0 false
V100136

Front

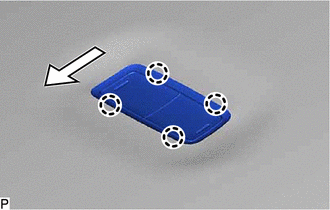

Engage the 4 claws to install the spot light assembly.



Hide 81360T 7.INSTALL SPOT LIGHT ASSEMBLY (for LED Type)

a.

for Type A:

i.

Connect the connector.


ii.
E488726C01
0,0 0,0 false
V100136

Front

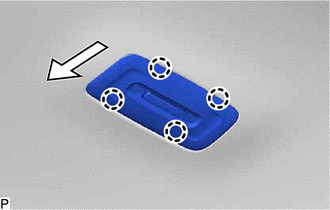

Engage the 4 claws to install the spot light assembly.



Hide 81240 8.INSTALL NO. 1 ROOM LIGHT ASSEMBLY (for LED Type)

a.

for Type B:

i.
E496460C02
0,0 0,0 false
V100136

Front

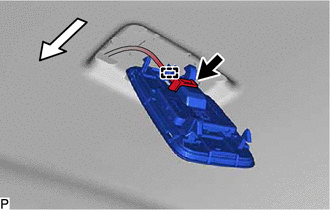

Connect the connector.


ii.

Engage the clamp.


iii.
E496459C01
0,0 0,0 false
V100136

Front

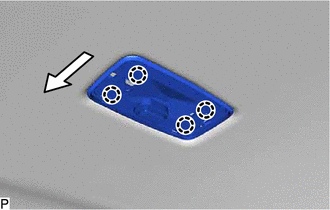

Engage the 4 claws to install the room light housing.


iv.
E496457C01
0,0 0,0 false
V100136

Front

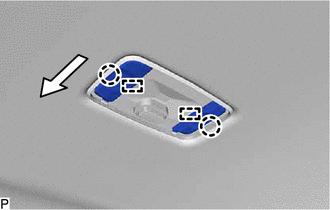

Engage the 2 claws and 2 guides to install the 2 inner covers.


v.
E496455C01
0,0 0,0 false
V100136

Front

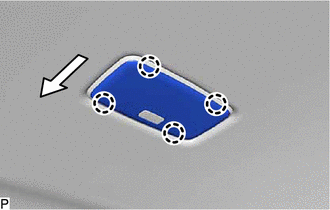

Engage the 4 claws to install the room light lens.
