RM3660EC _56 Audio / Visual / Telematics _080751 AUDIO / VIDEO _0392322 STEREO JACK ADAPTER ASSEMBLY A

AUDIO / VIDEO STEREO JACK ADAPTER ASSEMBLY REMOVAL

PROCEDURE

Hide Display 55606 1.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Hide Display 55434F 2.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Hide Display 86190C 3.REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY

for Type A:

0,0 0,0 false

Remove in this Direction

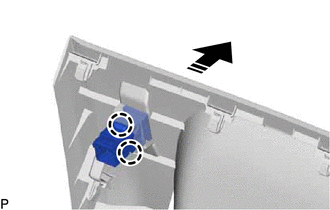

Disengage the 2 claws and remove the No. 1 stereo jack adapter assembly as shown in the illustration.

for Type C:

0,0 0,0 false

Remove in this Direction

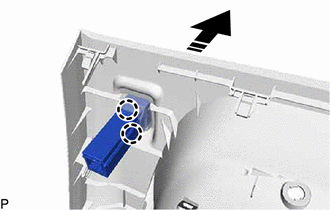

Disengage the 2 claws and remove the No. 1 stereo jack adapter assembly as shown in the illustration.
