RM3660EC _56 Audio / Visual / Telematics _080751 AUDIO / VIDEO _0392316 RADIO RECEIVER A

AUDIO / VIDEO RADIO RECEIVER REMOVAL

PROCEDURE

Hide Display 1. PRECAUTION

except 10.25 Inch Display: Click hereAudio / Visual / Telematics>AUDIO / VIDEO>AUDIO AND VISUAL SYSTEM (for Gasoline Model with Radio and Display Type (except 10.25 Inch Display))>PRECAUTION202304,999999,_56,_080751,_0392314,RM100000002C127,

for 10.25 Inch Display: Click hereAudio / Visual / Telematics>AUDIO / VIDEO>AUDIO AND VISUAL SYSTEM (for 10.25 Inch Display)>PRECAUTION202304,202406,_56,_080751,_0599626,RM100000002B8WD,202406,999999,_56,_080751,_0599626,RM100000002NA1A,

Hide Display 55405B 2.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (except 10.25 Inch Display)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202307,_58,_080744,_0393716,RM100000002B100_01_0152,202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0152,

Hide Display 55405B 3.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 10.25 Inch Display)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202307,_58,_080744,_0393716,RM100000002B100_01_0185,202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0185,

Hide Display 4.REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for Mechanical Control Type)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202307,_58,_080744,_0393716,RM100000002B100_01_0176,202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0176,

Hide Display 55900 5.REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Electrical Control Type)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL>REMOVAL202304,999999,_58,_080733,_0393743,RM100000002B1IV_01_0144,

Hide Display 55670A 6.REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY (for GTMC Made)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202307,_58,_080744,_0393716,RM100000002B100_01_0153,202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0153,

Hide Display 55318F 7.REMOVE NO. 2 INSTRUMENT SIDE PANEL (for TFTM Made)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202307,_58,_080744,_0393716,RM100000002B100_01_0156,202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0156,

Hide Display 55470 8.REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY (for TFTM Made)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202307,_58,_080744,_0393716,RM100000002B100_01_0157,202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0157,

Hide Display 55670A 9.REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY (for TFTM Made)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202304,202307,_58,_080744,_0393716,RM100000002B100_01_0183,202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0183,

Hide Display 10.REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

except 10.25 Inch Display:

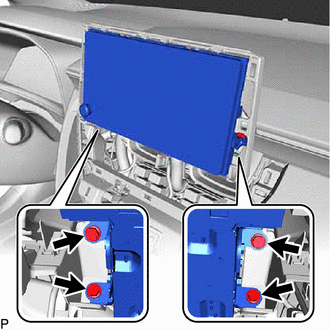

Remove the 4 bolts.

ii.

0,0 0,0 false

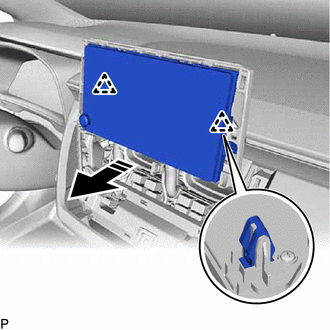

Remove in this Direction

Pull the radio and display receiver assembly with bracket to disengage the 2 clips.

iii.

Disconnect each connector and remove the radio and display receiver assembly with bracket.

for 10.25 Inch Display:

Remove the 4 bolts.

ii.

0,0 0,0 false

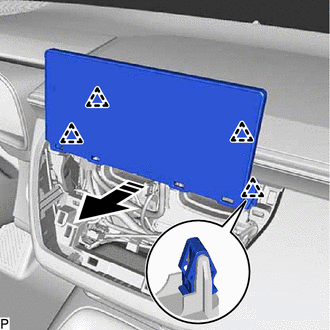

Remove in this Direction

Pull the radio and display receiver assembly with bracket to disengage the 4 clips.

iii.

Disconnect each connector and remove the radio and display receiver assembly with bracket.

Hide Display 86211 11.REMOVE NO. 1 RADIO BRACKET

except 10.25 Inch Display:

Remove the 3 screws and No. 1 radio bracket.

for 10.25 Inch Display:

Remove the 3 screws and No. 1 radio bracket.

Hide Display 86212 12.REMOVE NO. 2 RADIO BRACKET

except 10.25 Inch Display:

Remove the 3 screws and No. 2 radio bracket.

for 10.25 Inch Display:

Remove the 3 screws and No. 2 radio bracket.

Hide Display 86140A 13.REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY
