8ZR-FXE BATTERY / CHARGING BATTERY CURRENT SENSOR REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during battery state sensor assembly removal/installation are shown below.
- HINT:
-
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Learning completes when vehicle is driven Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (
202304,999999,_95,_139716,_0584193,RM1000000029F4C,)
PROCEDURE
1. PRECAUTION
- NOTICE:
-
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
28850C
2.REMOVE BATTERY STATE SENSOR ASSEMBLY

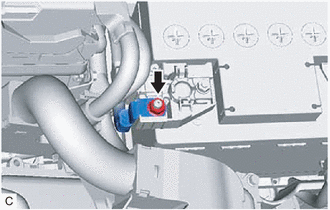

Remove the nut and disconnect the engine wire from the battery state sensor assembly.

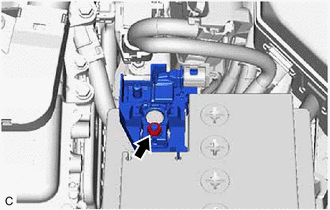

Loosen the nut and remove the battery state sensor assembly from the auxiliary battery.

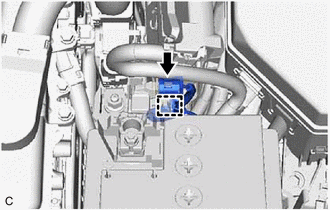

Disconnect the clamp and battery state sensor assembly connector.

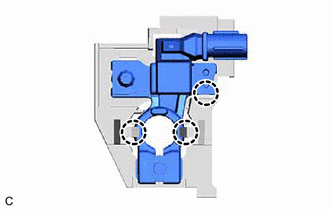

Disengage the 3 claws to remove the battery state sensor assembly from the battery current sensor holder.
