SLIDING ROOF / CONVERTIBLE SLIDING ROOF HOUSING REASSEMBLY

Hide Display 63205A 1.INSTALL SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

NOTICE:: Perform this procedure only when replacement of the sliding roof drive cable sub-assembly is necessary.

a.

for TFTM Made Type A:

i.

0,0 0,0 false

Install in this Direction

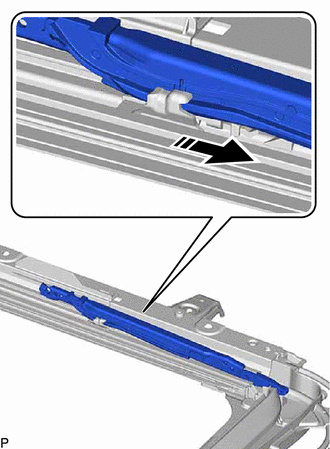

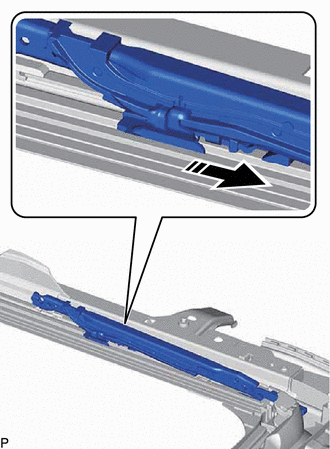

Slide the sliding roof drive cable LH as shown in the illustration to install it.

HINT:: Use the same procedure for the RH side.

ii.

1.885,0.927 2.052,0.677 2.052,0.677 1.792,0.833 true 1.406,0.729 1.708,0.927 true 2.052,0.563 2.25,0.75 0.198,0.188 10 true *a 1.219,0.604 1.417,0.792 0.198,0.188 10 true *a

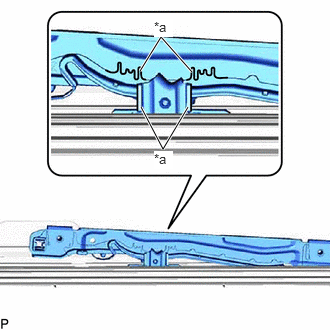

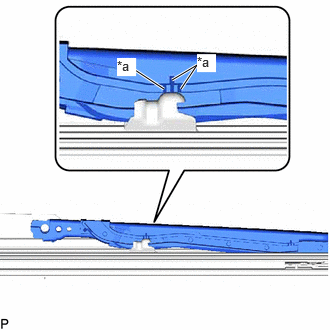

*a	Alignment Mark

Adjust Fully Closed Position:

Using a screwdriver, slide the sliding roof drive cable LH in either direction and align the alignment marks as shown in the illustration.

HINT:: Use the same procedure for the RH side.

iii.

0,0 0,0 false

Install in this Direction

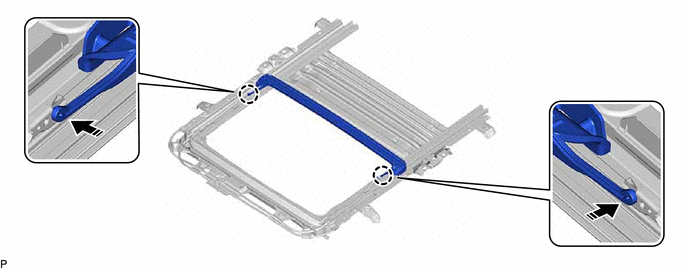

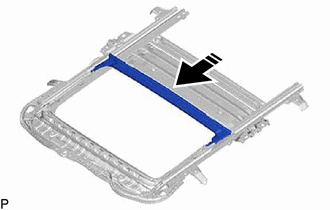

Insert the rear roof drip channel into the sliding roof housing sub-assembly as shown in the illustration.

iv.

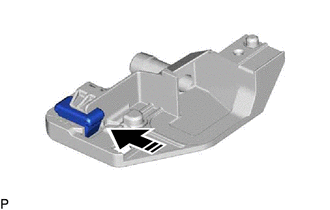

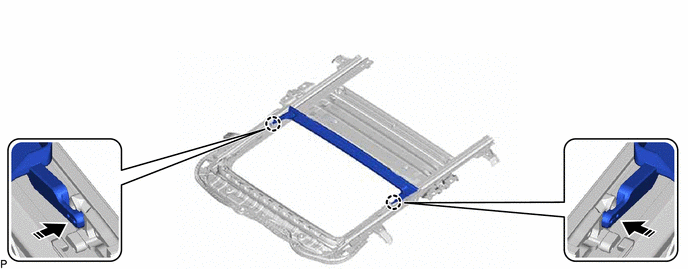

Engage the 2 claws as shown in the illustration to install the rear roof drip channel.

0,0 0,0 false

Install in this Direction

-

b.

for TFTM Made Type B, GTMC Made:

i.

0,0 0,0 false

Install in this Direction

Slide the sliding roof drive cable LH as shown in the illustration to install it.

HINT:: Use the same procedure for the RH side.

ii.

1.469,1.115 1.698,1.552 1.698,1.552 1.958,1.115 true 1.458,0.74 1.677,0.385 1.677,0.385 2,0.75 true 1.604,1.573 1.802,1.76 0.198,0.188 10 true *a 1.604,0.198 1.802,0.385 0.198,0.188 10 true *a

*a	Alignment Mark

Adjust Fully Closed Position:

Using a screwdriver, slide the sliding roof drive cable LH in either direction and align the alignment marks as shown in the illustration.

HINT:: Use the same procedure for the RH side.

iii.

0,0 0,0 false

Install in this Direction

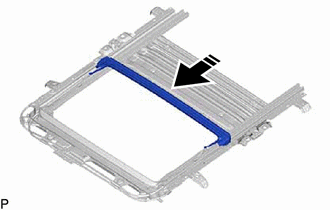

Insert the rear roof drip channel into the sliding roof housing sub-assembly as shown in the illustration.

iv.

Engage the 2 claws as shown in the illustration to install the rear roof drip channel.

0,0 0,0 false

Install in this Direction

-

Hide Display 63306 2.INSTALL SUNSHADE TRIM SUB-ASSEMBLY

a.

for TFTM Made Type A:

i.

0,0 0,0 false

Install in this Direction

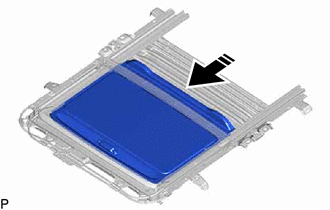

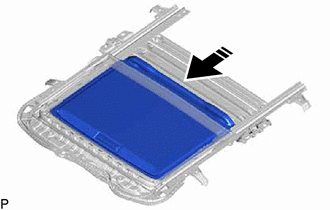

Insert the sunshade trim sub-assembly into the sliding roof housing sub-assembly as shown in the illustration to install it.

ii.

Install the rear sliding roof sunshade stopper with the screw.

HINT:: Use the same procedure for the RH side.

iii.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Move the sliding roof piece sub-assembly LH in the direction indicated by the arrow (1) shown in the illustration to engage the 2 guides.

HINT:: Use the same procedure for the RH side.

iv.

Move the sliding roof piece sub-assembly LH in the direction indicated by the arrow (2) shown in the illustration to engage the guide and claw.

HINT:: Use the same procedure for the RH side.

b.

for TFTM Made Type B:

i.

0,0 0,0 false

Install in this Direction

Insert the sunshade trim sub-assembly into the sliding roof housing sub-assembly as shown in the illustration to install it.

ii.

0,0 0,0 false

Install in this Direction

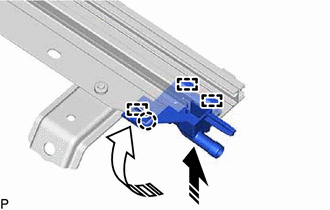

Install the rear sliding roof sunshade stopper as shown in the illustration.

HINT:: Use the same procedure for the RH side.

iii.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

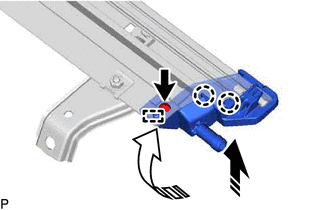

Move the sliding roof piece sub-assembly LH in the direction indicated by the arrow (1) shown in the illustration to engage the 2 claws.

HINT:: Use the same procedure for the RH side.

iv.

Move the sliding roof piece sub-assembly LH in the direction indicated by the arrow (2) shown in the illustration to engage the guide.

HINT:: Use the same procedure for the RH side.

v.

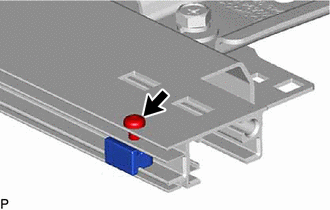

Install the sliding roof piece sub-assembly LH with the screw.

HINT:: Use the same procedure for the RH side.

c.

for GTMC Made:

i.

0,0 0,0 false

Install in this Direction

Insert the sunshade trim sub-assembly into the sliding roof housing sub-assembly as shown in the illustration to install it.

ii.

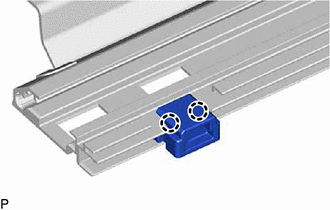

Engage the 2 claws to install the rear sliding roof sunshade stopper.

HINT:: Use the same procedure for the RH side.

Hide Display 63260J 3.INSTALL SLIDING ROOF DRIVE GEAR ASSEMBLY

a.

for TFTM Made Type A:

i.

Apply MP grease to the gear of the sliding roof drive gear sub-assembly.

ii.

for Type A:

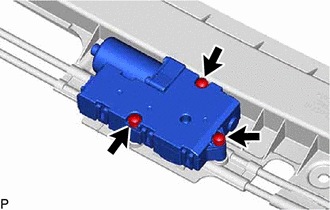

Install the sliding roof drive gear sub-assembly with the 3 bolts.

Torque:: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

iii.

for Type B:

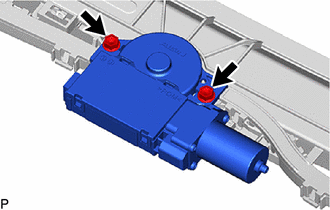

Install the sliding roof drive gear sub-assembly with the 2 screws.

Torque:: 3.0 N*m (31 kgf*cm, 27 in.*lbf)

iv.

for Type C:

Remove the 2 bolts and sliding roof drive gear sub-assembly.

Torque:: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

b.

for TFTM Made Type B, GTMC Made:

i.

Apply MP grease to the gear of the sliding roof drive gear sub-assembly.

ii.

for Type A:

Install the sliding roof drive gear sub-assembly with the 2 screws.

Torque:: 3.0 N*m (31 kgf*cm, 27 in.*lbf)

iii.

for Type B:

Install the sliding roof drive gear sub-assembly with the 2 bolts.

Torque:: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
