RM3660EC _58 Vehicle Interior _080744 INTERIOR PANELS / TRIM _0394267 ROOF HEADLINING A

INTERIOR PANELS / TRIM ROOF HEADLINING DISASSEMBLY

PROCEDURE

Hide Display 1.REMOVE TOLL COLLECTION ECU ASSEMBLY (w/ ETC for Type A)

Click hereAudio / Visual / Telematics>CELLULAR COMMUNICATION>TOLL COLLECTION ECU>REMOVAL202304,202307,_56,_101189,_0470417,RM100000002B0ZW_01_0002,202307,999999,_56,_101189,_0470417,RM100000002D8CR_01_0002,

Hide Display F1969B 2.REMOVE TOLL COLLECTION ECU SEAL TAPE (w/ ETC for Type A)

When the toll collection ECU seal tape is difficult to remove:

Click hereAudio / Visual / Telematics>CELLULAR COMMUNICATION>TOLL COLLECTION ECU>REMOVAL202304,202307,_56,_101189,_0470417,RM100000002B0ZW_01_0005,202307,999999,_56,_101189,_0470417,RM100000002D8CR_01_0005,

When reusing the toll collection ECU assembly:

Click hereAudio / Visual / Telematics>CELLULAR COMMUNICATION>TOLL COLLECTION ECU>REMOVAL202304,202307,_56,_101189,_0470417,RM100000002B0ZW_01_0003,202307,999999,_56,_101189,_0470417,RM100000002D8CR_01_0003,

Hide Display 86730A 3.REMOVE TELEPHONE MICROPHONE ASSEMBLY (for 10.25 Inch Display)

for LH Side:

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>MICROPHONE>REMOVAL202304,202307,_56,_080751,_0392323,RM100000002AIOP_01_0020,202307,999999,_56,_080751,_0392323,RM100000002D8CQ_01_0020,

for RH Side with Navigation System:

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>MICROPHONE>REMOVAL202304,202307,_56,_080751,_0392323,RM100000002AIOP_01_0020,202307,999999,_56,_080751,_0392323,RM100000002D8CQ_01_0020,

Hide Display 86255F 4.REMOVE MICROPHONE CASE (for 10.25 Inch Display)

HINT:: Use the same procedure for all microphone cases.

Disengage the 2 claws to remove the microphone case.

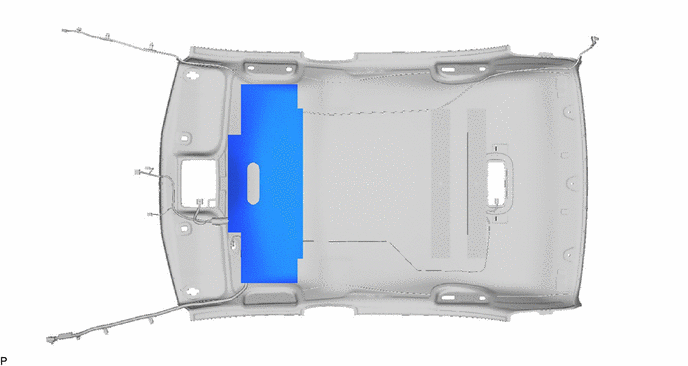

Hide Display 63341 5.REMOVE NO. 1 ROOF SILENCER PAD (for Normal Roof)

Remove the No. 1 roof silencer pad.

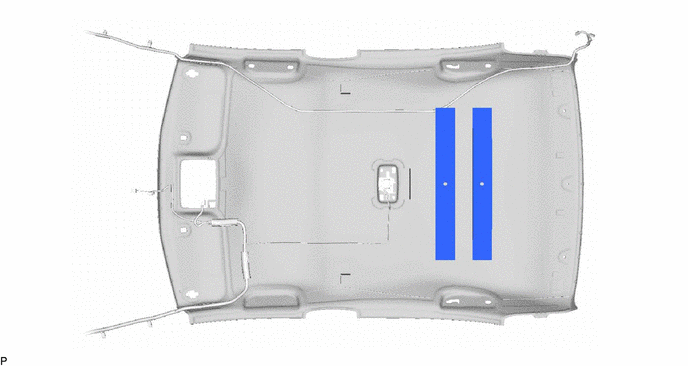

Hide Display 63342 6.REMOVE NO. 2 ROOF SILENCER PAD (for Normal Roof)

Remove the 2 No. 2 roof silencer pads.

Hide Display 86101J 7.REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO ANTENNA CORD>REMOVAL202304,202307,_56,_080751,_0392320,RM100000002AINZ_01_0187,202307,999999,_56,_080751,_0392320,RM100000002D8CP_01_0187,

Hide Display 82171 8.REMOVE NO. 1 ROOF WIRE (for Normal Roof)

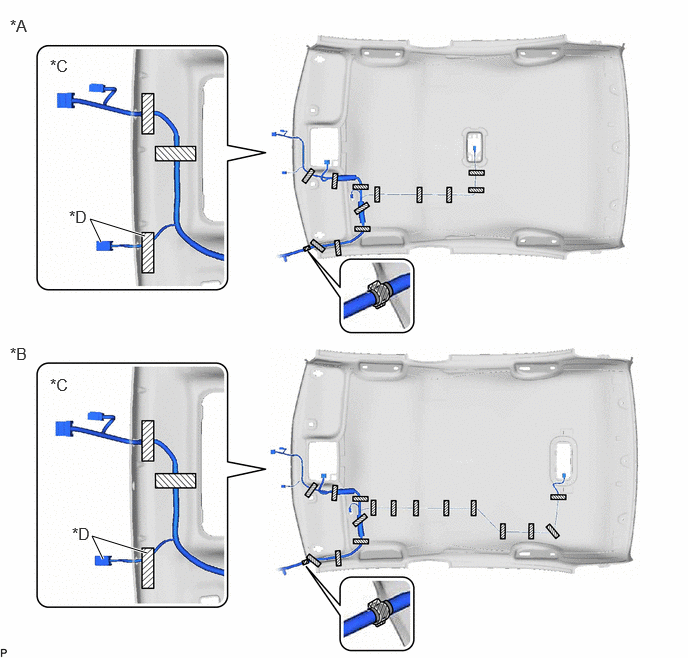

Remove the adhesive tape from the roof headlining assembly.

1.073,5.823 0.958,5.583 0.958,5.583 1.531,5.76 true 1.052,2.521 0.938,2.281 0.938,2.281 1.51,2.458 true 0.104,0.167 0.417,0.365 0.313,0.198 12 false *A 0.104,3.583 0.417,3.781 0.313,0.198 12 false *B 0.521,0.583 0.833,0.781 0.313,0.198 12 false *C 0.521,3.906 0.833,4.104 0.313,0.198 12 false *C 0.75,5.458 1.063,5.656 0.313,0.198 12 false *D 0.719,2.156 1.031,2.354 0.313,0.198 12 false *D

*A	for Type A	*B	for Type B
*C	for Front Side with Connector	*D	w/ ETC
	Adhesive Tape	-	-

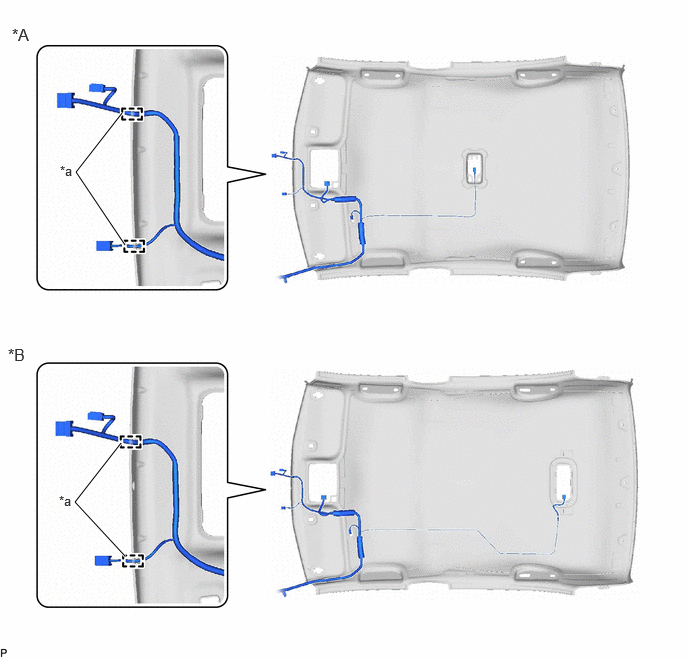

for Front Side with Connector:

Disconnect the No. 1 roof wire from each notch.

1.302,5.792 0.781,5.229 0.781,5.229 1.26,4.615 true 1.302,2.552 0.792,1.792 0.792,1.792 1.271,1.177 true 0.083,3.594 0.458,3.833 0.375,0.24 12 false *B 0.125,0.26 0.5,0.5 0.375,0.24 12 false *A 0.615,5.135 0.875,5.385 0.26,0.25 10 false *a 0.625,1.698 0.885,1.948 0.26,0.25 10 false *a

*A	for Type A	*B	for Type B
*a	Notch	-	-

Remove the No. 1 roof wire from the roof headlining assembly.

Hide Display 82171 9.REMOVE NO. 1 ROOF WIRE (for Moon Roof)

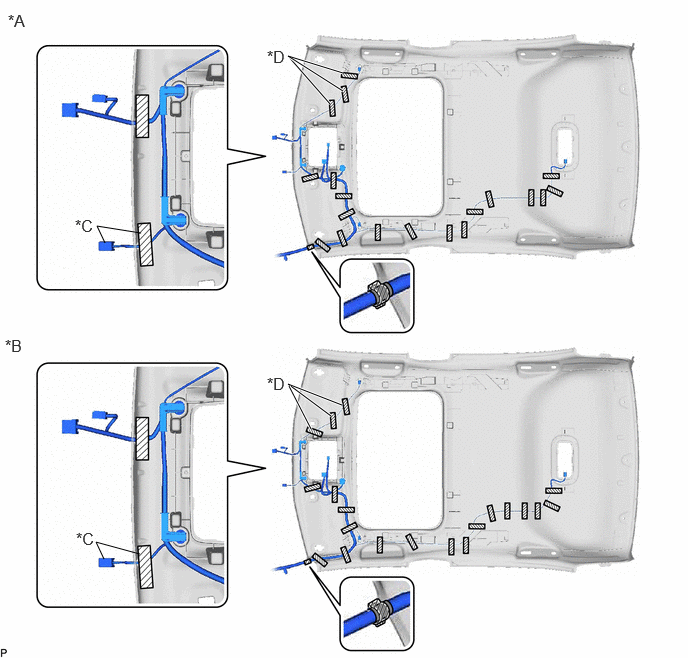

Remove the adhesive tape from the roof headlining assembly.

3.448,4.333 3,4 3,4 3.563,4.219 true 3,0.583 3.438,1.083 true 3.573,0.948 3,0.583 3,0.583 3.573,0.76 true 3.01,4.021 3.24,4.469 true 1.094,2.531 1.01,2.354 1.01,2.354 1.469,2.427 false 1.083,5.823 1,5.646 1,5.646 1.458,5.771 false 0.083,0.115 0.396,0.333 0.313,0.219 12 false *A 0.052,3.5 0.333,3.708 0.281,0.208 12 false *B 2.781,0.49 3.031,0.74 0.25,0.25 12 false *D 2.781,3.896 3.031,4.146 0.25,0.25 12 false *D 0.781,2.25 1.031,2.5 0.25,0.25 12 false *C 0.792,5.51 1.042,5.76 0.25,0.25 12 false *C

*A	for Type A	*B	for Type B
*C	w/ ETC	*D	w/ Navigation System
	Adhesive Tape	-	-

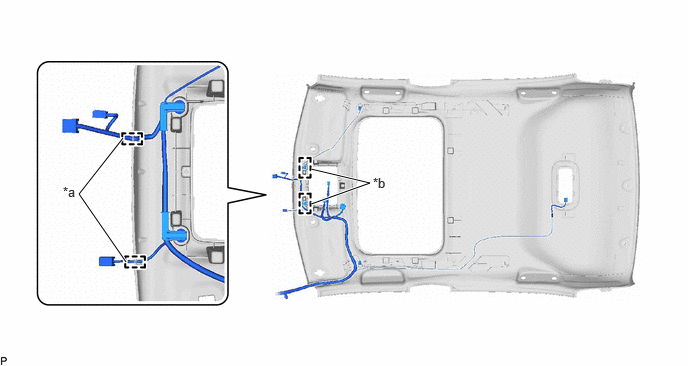

for Front Side with Connector:

Disconnect the No. 1 roof wire from each notch.

1.313,2.729 0.823,2.021 0.823,2.021 1.281,1.438 true 3.24,2.125 3.854,1.906 3.854,1.906 3.24,1.76 true 0.656,1.917 0.844,2.146 0.188,0.229 10 false *a 3.885,1.823 4.073,2.052 0.188,0.229 10 false *b

Notch

Clamp

Using a clip remover, disengage each clamp.

Remove the No. 1 roof wire from the roof headlining assembly.
