SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM(except NR Series Engine)  B002112  Left Curtain Deployment Control 1 Circuit Short to Battery


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate DTC Output from Priority Test Mode / Check Mode
B002112 Left Curtain Deployment Control 1 Circuit Short to Battery
·

The airbag sensor with ECU assembly detects a short to +B in the curtain shield squib LH circuit for 0.5 seconds.

·

Curtain shield airbag assembly LH malfunction

·

Airbag sensor with ECU assembly malfunction


·

Harness or connector

·

Curtain shield airbag assembly LH

·

Airbag sensor with ECU assembly


Comes on SRS Airbag A Applies to check mode

WIRING DIAGRAM

B665395E65
5.031,3.083 6.219,3.49 1.188,0.406 10 false Airbag Sensor with ECU Assembly 5.021,2.917 6.688,3.438 1.667,0.521 10 false O162 4.781,1.333 5.583,1.979 0.802,0.646 10 false 8 4.781,1.896 5.583,2.542 0.802,0.646 10 false 7 4.958,1.333 5.76,1.979 0.802,0.646 10 false ICL+ 4.958,1.896 5.76,2.542 0.802,0.646 10 false ICL- 0.875,2.406 2.542,2.927 1.667,0.521 10 false O13 0.875,2.583 2.26,3 1.385,0.417 10 false Curtain Shield Airbag Assembly LH 2.083,1.333 2.885,1.979 0.802,0.646 10 false 1 2.083,1.885 2.885,2.531 0.802,0.646 10 false 2 1.698,1.333 2.5,1.979 0.802,0.646 10 false ICL+ 1.729,1.885 2.531,2.531 0.802,0.646 10 false ICL-

CAUTION / NOTICE / HINT

NOTICE:
·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

After replacing the airbag sensor with ECU assembly, refer to work procedure.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE



HINT:
·

To perform the simulation method, enter check mode (signal check) with the GTS.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>CHECK MODE PROCEDURE

·

Perform the simulation method while checking the Data List.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>DATA LIST / ACTIVE TEST



PROCEDURE

1.CLEAR DTC

Pre-procedure1

a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

b.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444
Result:
Proceed to
NEXT



Post-procedure1

c.

Turn the ignition switch off.



NEXT

2.CHECK DTC
2.CHECK DTC

Pre-procedure1

a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444
Result:
Result Proceed to
B002112 is output A
B002112 is not output B



Post-procedure1

c.

None



A

3.CHECK CONNECTION OF CONNECTORS

B

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


3.CHECK CONNECTION OF CONNECTORS

Pre-procedure1

a.

Turn the ignition switch off.


b.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.


Procedure1

c.

Check that the connectors are properly connected to the curtain shield airbag assembly LH and airbag sensor with ECU assembly.

OK:

The connectors are properly connected.


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

4.CHECK CONNECTORS

NG

CONNECT CONNECTORS PROPERLY

4.CHECK CONNECTORS

Pre-procedure1

a.
C400945C08
0.667,0.917 0.979,1.073 0.313,0.156 10 false *1 2.198,1.646 2.51,1.802 0.313,0.156 10 false *2 1.25,0.927 1.563,1.083 0.313,0.156 10 false *3
*1 Curtain Shield Airbag Assembly LH
*2 Airbag Sensor with ECU Assembly
*3 Wire Harness


Disconnect the airbag sensor with ECU assembly connector.


b.

Disconnect the curtain shield airbag assembly LH connector.


Procedure1

c.

Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals are not deformed or damaged.



d.

Check that the connectors are not loose, deformed or damaged.

OK:

The connector locking button is not disengaged, and the claw of the lock is not deformed or damaged.


Result:
Proceed to
OK
NG



Post-procedure1

e.

None



OK

5.CLEAR DTC

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CLEAR DTC

Pre-procedure1

a.
C415632C18
0.375,2.313 0.844,2.563 0.469,0.25 2.125,2.51 1.979,2.51 1.979,2.51 1.771,2.354 true 0.667,0.583 0.979,0.74 0.313,0.156 10 false *1 2.26,1.281 2.573,1.438 0.313,0.156 10 false *2 2.167,2.448 2.479,2.604 0.313,0.156 10 false *4 0.354,1.813 0.667,1.969 0.313,0.156 10 false *a 0.479,2.354 1.042,2.781 0.563,0.427 10 false O13 0.813,0.354 1,0.625 0.188,0.271 10 false D 1.188,0.354 1.365,0.573 0.177,0.219 10 false C 1.698,0.354 1.896,0.563 0.198,0.208 10 false B 1.854,0.344 2.021,0.573 0.167,0.229 10 false A 1.406,0.531 1.719,0.688 0.313,0.156 10 false *3
*1 Curtain Shield Airbag Assembly LH
*2 Airbag Sensor with ECU Assembly
*3 Wire Harness
*4 SST
*a Front view of wire harness connector
(to Curtain Shield Airbag Assembly LH)


Connect the airbag sensor with ECU assembly connector.


b.

Connect SST (resistance: 2.1 Ω) to connector C.

CAUTION:

Never connect the tester to the curtain shield airbag assembly LH for measurement, as this may lead to a serious injury due to airbag deployment.


NOTICE:
·

Do not forcibly insert SST into the terminals of the connector when connecting SST.

·

Insert SST straight into the terminals of the connector.




SST
09843-18061

c.

Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.


d.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

e.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444
Result:
Proceed to
NEXT



Post-procedure1

f.

Turn the ignition switch off.



NEXT

6.CHECK CURTAIN SHIELD AIRBAG ASSEMBLY LH
6.CHECK CURTAIN SHIELD AIRBAG ASSEMBLY LH

Pre-procedure1

a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444
Result:
Result Proceed to
B002112 is not output A
B002112 is output B


HINT:

Codes other than DTC B002112 may be output at this time, but they are not related to this check.



Post-procedure1

c.

Turn the ignition switch off.


d.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.


e.

Disconnect SST from connector C.



A

REPLACE CURTAIN SHIELD AIRBAG ASSEMBLY LH

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CURTAIN SHIELD AIRBAG ASSEMBLY>REMOVAL


B

7.CHECK HARNESS AND CONNECTOR
7.CHECK HARNESS AND CONNECTOR

Pre-procedure1

a.

Disconnect the airbag sensor with ECU assembly connector.


b.

Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.


c.

Turn the ignition switch to ON.


Procedure1

d.

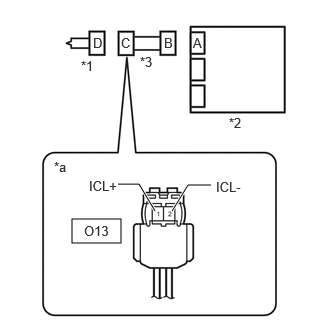

E439476C15
0.75,2.281 1.26,2.531 0.51,0.25 1.792,2.198 1.958,1.927 1.958,1.927 2.198,1.927 true 1.615,2.198 1.448,1.917 1.448,1.917 1.229,1.917 true 0.875,2.323 1.406,2.635 0.531,0.313 10 false O13 0.969,0.365 1.427,0.698 0.458,0.333 10 false D 1.26,0.365 1.646,0.698 0.385,0.333 10 false C 1.708,0.365 2.021,0.646 0.313,0.281 10 false B 2.01,0.365 2.292,0.635 0.281,0.271 10 false A 2.385,1.198 2.667,1.375 0.281,0.177 10 false *2 0.844,0.604 1.313,0.865 0.469,0.26 10 false *1 0.563,1.656 0.896,1.927 0.333,0.271 10 false *a 2.25,1.865 2.688,2.208 0.438,0.344 10 false ICL- 0.927,1.854 1.354,2.146 0.427,0.292 10 false ICL+ 1.458,0.563 1.833,0.781 0.375,0.219 10 false *3
*1 Curtain Shield Airbag Assembly LH
*2 Airbag Sensor with ECU Assembly
*3 Wire Harness
*a Front view of wire harness connector
(to Curtain Shield Airbag Assembly LH)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
O13-1 (ICL+) - Body ground Ignition switch ON Below 1 V
O13-2 (ICL-) - Body ground Ignition switch ON Below 1 V


Result:
Proceed to
OK
NG



Post-procedure1

e.

Turn the ignition switch off.


f.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.



OK

8.CLEAR DTC

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

8.CLEAR DTC

Pre-procedure1

a.
C400948C10
0.813,0.958 1.125,1.115 0.313,0.156 10 false *1 2.177,1.604 2.49,1.76 0.313,0.156 10 false *2 1.292,0.948 1.604,1.104 0.313,0.156 10 false *3
*1 Curtain Shield Airbag Assembly LH
*2 Airbag Sensor with ECU Assembly
*3 Wire Harness


Connect the airbag sensor with ECU assembly connector.


b.

Connect the curtain shield airbag assembly LH connector.


c.

Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.


d.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

e.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444
Result:
Proceed to
NEXT



Post-procedure1

f.

Turn the ignition switch off.



NEXT

9.CHECK DTC
9.CHECK DTC

Pre-procedure1

a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444
Result:
Result Proceed to
B002112 is not output A
B002112 is output B


HINT:

Codes other than DTC B002112 may be output at this time, but they are not related to this check.



Post-procedure1

c.

None



A

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


B

REPLACE AIRBAG SENSOR WITH ECU ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL
