SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM(except NR Series Engine)  B002012  Left Side Airbag Deployment Control Circuit Short to Battery


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate DTC Output from Priority Test Mode / Check Mode
B002012 Left Side Airbag Deployment Control Circuit Short to Battery
·

The airbag sensor with ECU assembly detects a short to +B in the front side squib LH circuit for 0.5 seconds.

·

Front seat airbag assembly LH malfunction

·

Airbag sensor with ECU assembly malfunction


·

Harness or connector

·

Front seat airbag assembly LH

·

Airbag sensor with ECU assembly


Comes on SRS Airbag A Applies to check mode

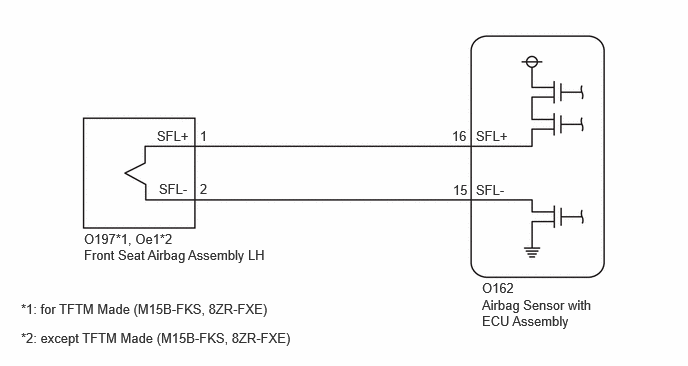

WIRING DIAGRAM

B665395E64
5.021,3.094 6.219,3.542 1.198,0.448 10 false Airbag Sensor with ECU Assembly 5.021,2.917 6.313,3.229 1.292,0.313 10 false O162 4.708,1.333 5.51,1.979 0.802,0.646 10 false 16 4.719,1.896 5.521,2.542 0.802,0.646 10 false 15 4.958,1.333 5.76,1.979 0.802,0.646 10 false SFL+ 4.958,1.896 5.76,2.542 0.802,0.646 10 false SFL- 0.875,2.406 2.542,2.927 1.667,0.521 10 false O197*1, Oe1*2 0.875,2.573 2.885,2.771 2.01,0.198 10 false Front Seat Airbag Assembly LH 2.083,1.333 2.885,1.979 0.802,0.646 10 false 1 2.083,1.885 2.885,2.531 0.802,0.646 10 false 2 1.635,1.333 2.438,1.979 0.802,0.646 10 false SFL+ 1.656,1.885 2.458,2.531 0.802,0.646 10 false SFL- 0.219,3.135 5.875,3.333 5.656,0.198 10 false *1: for TFTM Made (M15B-FKS, 8ZR-FXE) 0.219,3.438 5.875,3.635 5.656,0.198 10 false *2: except TFTM Made (M15B-FKS, 8ZR-FXE)

CAUTION / NOTICE / HINT

NOTICE:
·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

After replacing the airbag sensor with ECU assembly, refer to work procedure.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE



HINT:
·

To perform the simulation method, enter check mode (signal check) with the GTS.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>CHECK MODE PROCEDURE

·

Perform the simulation method while checking the Data List.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>DATA LIST / ACTIVE TEST



PROCEDURE

1.CLEAR DTC

Pre-procedure1

a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

b.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444
Result:
Proceed to
NEXT



Post-procedure1

c.

Turn the ignition switch off.



NEXT

2.CHECK DTC
2.CHECK DTC

Pre-procedure1

a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444
Result:
Result Proceed to
B002012 is output A
B002012 is not output B



Post-procedure1

c.

None



A

3.CHECK CONNECTION OF CONNECTORS

B

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


3.CHECK CONNECTION OF CONNECTORS

Pre-procedure1

a.

Turn the ignition switch off.


b.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.


Procedure1

c.

Check that the connectors are properly connected to the front seat airbag assembly LH and airbag sensor with ECU assembly.

OK:

The connectors are properly connected.


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

4.CHECK CONNECTORS

NG

CONNECT CONNECTORS PROPERLY

4.CHECK CONNECTORS

Pre-procedure1

a.
C400945C08
0.667,0.917 0.979,1.073 0.313,0.156 10 false *1 2.198,1.646 2.51,1.802 0.313,0.156 10 false *2 1.25,0.927 1.563,1.083 0.313,0.156 10 false *3
*1 Front Seat Airbag Assembly LH
*2 Airbag Sensor with ECU Assembly
*3 Wire Harness


Disconnect the airbag sensor with ECU assembly connector.


b.

Disconnect the front seat airbag assembly LH connector.


Procedure1

c.

Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals are not deformed or damaged.


Result:
Proceed to
OK
NG



Post-procedure1

d.

None



OK

5.CLEAR DTC

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CLEAR DTC

Pre-procedure1

a.

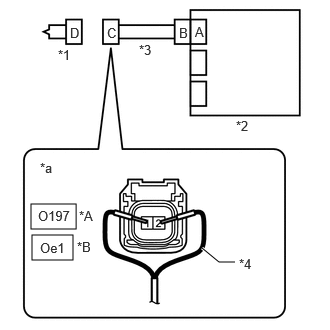

C395624C49
0.333,2.448 0.76,2.708 0.427,0.26 0.323,2.125 0.792,2.385 0.469,0.26 2.104,2.583 2.281,2.729 2.281,2.729 2.448,2.729 true 0.604,0.49 0.927,0.76 0.323,0.271 10 false *1 2.458,1.229 2.833,1.552 0.375,0.323 10 false *2 0.417,1.667 0.75,2.083 0.333,0.417 10 false *a 2.49,2.667 2.823,3.083 0.333,0.417 10 false *4 0.417,2.5 0.844,2.865 0.427,0.365 10 false Oe1 2.031,0.25 2.406,0.573 0.375,0.323 10 false A 1.865,0.26 2.24,0.583 0.375,0.323 10 false B 1.115,0.26 1.49,0.583 0.375,0.323 10 false C 0.729,0.26 1.104,0.583 0.375,0.323 10 false D 1.448,0.438 1.771,0.708 0.323,0.271 10 false *3 0.396,2.167 0.823,2.531 0.427,0.365 10 false O197 0.823,2.167 1.135,2.365 0.313,0.198 10 false *A 0.802,2.49 1.115,2.688 0.313,0.198 10 false *B
*A for TFTM Made (M15B-FKS, 8ZR-FXE)
*B except TFTM Made (M15B-FKS, 8ZR-FXE)
*1 Front Seat Airbag Assembly LH
*2 Airbag Sensor with ECU Assembly
*3 Wire Harness
*4 SST
*a Front view of wire harness connector
(to Front Seat Airbag Assembly LH)


Connect the airbag sensor with ECU assembly connector.


b.

Connect SST (resistance: 2.1 Ω) to connector C.

CAUTION:

Never connect the tester to the front seat airbag assembly LH for measurement, as this may lead to a serious injury due to airbag deployment.


NOTICE:
·

Do not forcibly insert SST into the terminals of the connector when connecting SST.

·

Insert SST straight into the terminals of the connector.




SST
09843-18061

c.

Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.


d.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

e.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444
Result:
Proceed to
NEXT



Post-procedure1

f.

Turn the ignition switch off.



NEXT

6.CHECK FRONT SEAT AIRBAG ASSEMBLY LH
6.CHECK FRONT SEAT AIRBAG ASSEMBLY LH

Pre-procedure1

a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444
Result:
Result Proceed to
B002012 is not output A
B002012 is output B


HINT:

Codes other than DTC B002012 may be output at this time, but they are not related to this check.



Post-procedure1

c.

Turn the ignition switch off.


d.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.


e.

Disconnect SST from connector C.



A

REPLACE FRONT SEAT AIRBAG ASSEMBLY LH

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT SEAT SIDE AIRBAG ASSEMBLY>REMOVAL


B

7.CHECK HARNESS AND CONNECTOR
7.CHECK HARNESS AND CONNECTOR

Pre-procedure1

a.

Disconnect the airbag sensor with ECU assembly connector.


b.

Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.


c.

Turn the ignition switch to ON.


Procedure1

d.
E439475C13
0.604,2.375 1.021,2.635 0.417,0.26 0.563,2.042 1.021,2.302 0.458,0.26 1.313,2.948 1.458,2.948 1.458,2.948 1.667,2.458 true 1.854,2.458 2.052,2.948 2.052,2.948 2.208,2.948 true 0.948,2.875 1.604,3.052 0.656,0.177 10 false SFL+ 2.25,2.854 2.802,3.063 0.552,0.208 10 false SFL- 0.688,2.417 1.271,2.646 0.583,0.229 10 false Oe1 0.313,0.542 0.625,0.729 0.313,0.188 10 false *1 1.125,0.458 1.438,0.646 0.313,0.188 10 false *3 2.354,1.115 2.667,1.302 0.313,0.188 10 false *2 1.969,0.26 2.135,0.438 0.167,0.177 10 false A 0.438,0.281 0.604,0.458 0.167,0.177 10 false D 0.74,0.281 0.906,0.458 0.167,0.177 10 false C 1.552,0.281 1.719,0.458 0.167,0.177 10 false B 0.542,1.698 0.854,1.885 0.313,0.188 10 false *a 0.625,2.083 1.208,2.313 0.583,0.229 10 false O197 1.063,2.083 1.375,2.281 0.313,0.198 10 false *A 1.063,2.417 1.375,2.615 0.313,0.198 10 false *B
*A for TFTM Made (M15B-FKS, 8ZR-FXE)
*B except TFTM Made (M15B-FKS, 8ZR-FXE)
*1 Front Seat Airbag Assembly LH
*2 Airbag Sensor with ECU Assembly
*3 Wire Harness
*a Front view of wire harness connector
(to Front Seat Airbag Assembly LH)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
for TFTM Made (M15B-FKS, 8ZR-FXE)
Tester Connection Condition Specified Condition
O197-1 (SFL+) - Body ground Ignition switch ON Below 1 V
O197-2 (SFL-) - Body ground Ignition switch ON Below 1 V

except TFTM Made (M15B-FKS, 8ZR-FXE)
Tester Connection Condition Specified Condition
Oe1-1 (SFL+) - Body ground Ignition switch ON Below 1 V
Oe1-2 (SFL-) - Body ground Ignition switch ON Below 1 V


Result:
Proceed to
OK
NG



Post-procedure1

e.

Turn the ignition switch off.


f.

Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.



OK

8.CLEAR DTC

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

8.CLEAR DTC

Pre-procedure1

a.
C400948C10
0.813,0.958 1.125,1.115 0.313,0.156 10 false *1 2.177,1.604 2.49,1.76 0.313,0.156 10 false *2 1.292,0.948 1.604,1.104 0.313,0.156 10 false *3
*1 Front Seat Airbag Assembly LH
*2 Airbag Sensor with ECU Assembly
*3 Wire Harness


Connect the airbag sensor with ECU assembly connector.


b.

Connect the front seat airbag assembly LH connector.


c.

Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.


d.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

e.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444
Result:
Proceed to
NEXT



Post-procedure1

f.

Turn the ignition switch off.



NEXT

9.CHECK DTC
9.CHECK DTC

Pre-procedure1

a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


Procedure1

b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444
Result:
Result Proceed to
B002012 is not output A
B002012 is output B


HINT:

Codes other than DTC B002012 may be output at this time, but they are not related to this check.



Post-procedure1

c.

None



A

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


B

REPLACE AIRBAG SENSOR WITH ECU ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL
