SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM(except NR Series Engine)  TERMINALS OF ECU

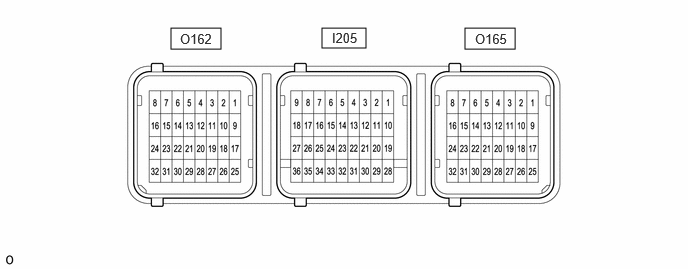

AIRBAG SENSOR WITH ECU ASSEMBLY

1.781,0.292 2.302,0.51 0.521,0.219 3.354,0.292 3.813,0.5 0.458,0.208 4.844,0.292 5.365,0.51 0.521,0.219 3.458,0.313 3.865,0.688 0.406,0.375 10 false I205 1.875,0.323 2.281,0.698 0.406,0.375 10 false O162 4.948,0.323 5.354,0.698 0.406,0.375 10 false O165

Terminal No.	Terminal Symbol	Destination
*: for HV Model
O162-3	PLR-	Rear 3 point type seat outer belt assembly LH
O162-4	PLR+
O162-5	PL+	Front seat outer belt assembly LH
O162-6	PL-
O162-7	ICL-	Curtain shield airbag assembly LH
O162-8	ICL+
O162-15	SFL-	Front seat airbag assembly LH
O162-16	SFL+
O162-28	BBL+	Side No. 2 airbag sensor LH
O162-29	BBL-
O162-31	BDL-	Side airbag pressure sensor LH
O162-32	BDL+
I205-3	P-	Instrument panel passenger airbag assembly
I205-4	P+
I205-6	D+	Driver squib (Horn button assembly)
I205-7	D-
I205-8	D2-	Driver squib 2nd step (Horn button assembly)
I205-9	D2+
I205-23	GSW3	Telematics transceiver
I205-24*	GSW2	Hybrid vehicle control ECU
I205-26	CAFH	CAN communication line
I205-27	CAFL
I205-28	-SR	Front airbag sensor RH
I205-29	+SR
I205-30	+SL	Front airbag sensor LH
I205-31	-SL
I205-32	E2	Ground
I205-33	E1
I205-36	IGR	A/BAG-IGR fuse
O165-1	ICR+	Curtain shield airbag assembly RH
O165-2	ICR-
O165-3	PR-	Front seat outer belt assembly RH
O165-4	PR+
O165-5	PRR+	Rear 3 point type seat outer belt assembly RH
O165-6	PRR-
O165-9	SFR+	Front seat airbag assembly RH
O165-10	SFR-
O165-25	BDR-	Side airbag pressure sensor RH
O165-26	BDR+
O165-28	BBR+	Side No. 2 airbag sensor RH
O165-29	BBR-
