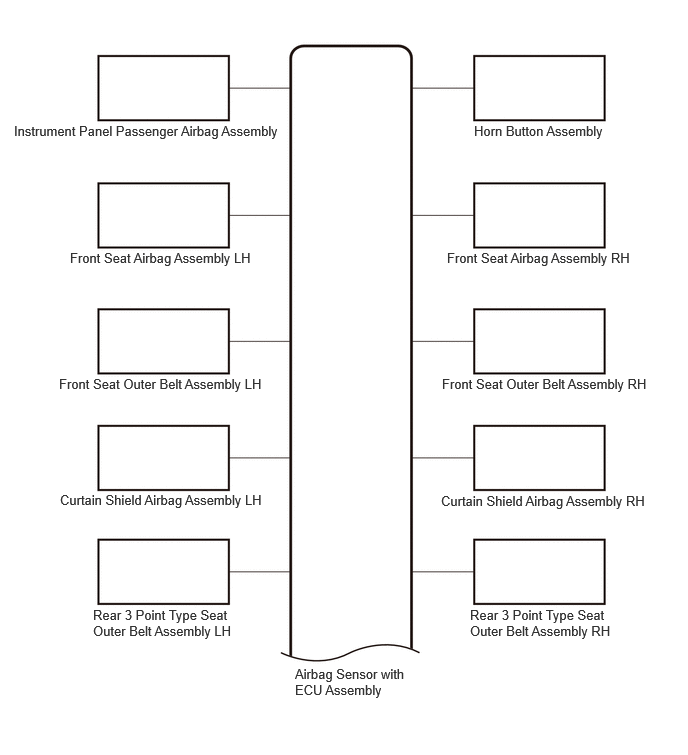

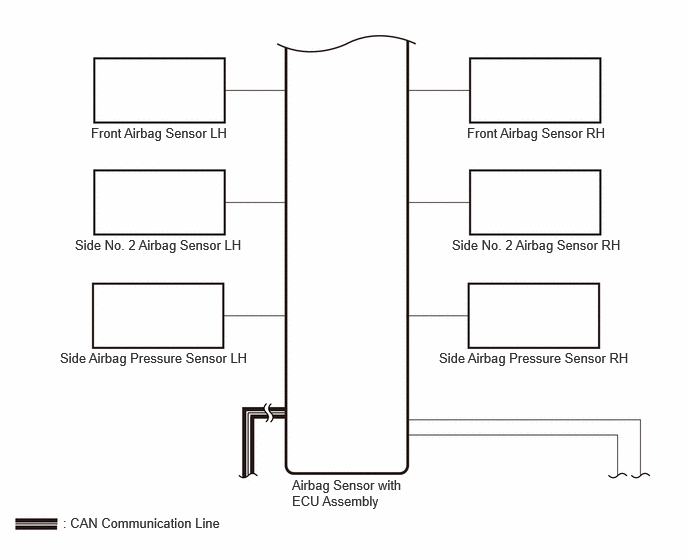

SUPPLEMENTAL RESTRAINT SYSTEMS AIRBAG SYSTEM(except NR Series Engine) SYSTEM DIAGRAM
4.938,1.281 6.469,1.479
1.531,0.198
10
false
Horn Button Assembly
0.146,1.281 3.125,1.531
2.979,0.25
10
false
Instrument Panel Passenger Airbag Assembly
4.656,2.604 6.823,2.792
2.167,0.188
10
false
Front Seat Airbag Assembly RH
0.729,2.604 3.635,2.802
2.906,0.198
10
false
Front Seat Airbag Assembly LH
0.615,3.917 3.677,4.115
3.063,0.198
10
false
Front Seat Outer Belt Assembly LH
4.594,5.135 6.854,5.375
2.26,0.24
10
false
Curtain Shield Airbag Assembly RH
0.625,5.125 3.688,5.323
3.063,0.198
10
false
Curtain Shield Airbag Assembly LH
4.896,6.323 6.615,6.781
1.719,0.458
10
false
Rear 3 Point Type Seat Outer Belt Assembly RH
0.969,6.323 2.531,6.729
1.563,0.406
10
false
Rear 3 Point Type Seat Outer Belt Assembly LH
3.073,6.938 4.281,7.365
1.208,0.427
10
false
Airbag Sensor with ECU Assembly
4.604,3.917 6.969,4.104
2.365,0.188
10
false
Front Seat Outer Belt Assembly RH
0.948,1.302 2.698,1.583
1.75,0.281
10
false
Front Airbag Sensor LH
4.865,1.302 6.615,1.583
1.75,0.281
10
false
Front Airbag Sensor RH
0.781,2.469 2.792,2.75
2.01,0.281
10
false
Side No. 2 Airbag Sensor LH
4.708,2.469 6.719,2.75
2.01,0.281
10
false
Side No. 2 Airbag Sensor RH
4.573,3.646 6.844,3.938
2.271,0.292
10
false
Side Airbag Pressure Sensor RH
0.625,3.646 2.896,3.938
2.271,0.292
10
false
Side Airbag Pressure Sensor LH
3.042,4.969 4.271,5.333
1.229,0.365
10
false
Airbag Sensor with ECU Assembly
0.656,5.365 4.323,5.563
3.667,0.198
10
false

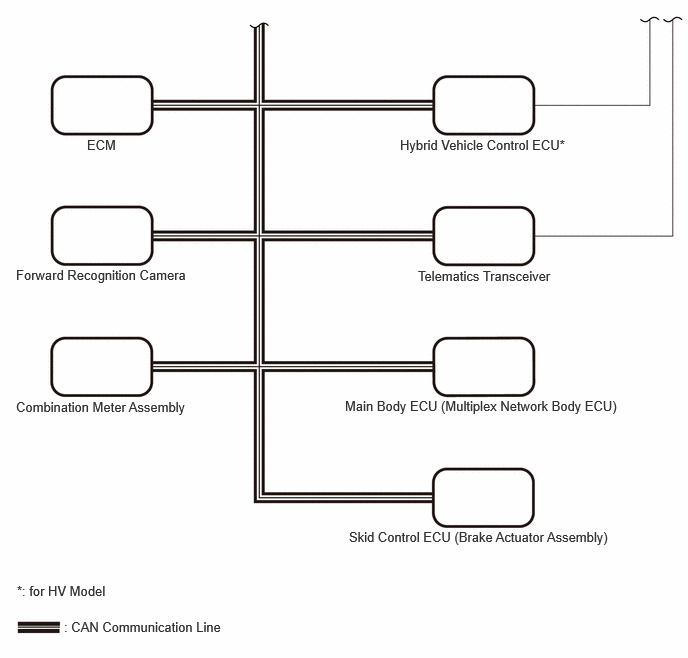

: CAN Communication Line
0.667,6.448 2.479,6.698
1.813,0.25
10
false
: CAN Communication Line
4.167,1.427 6.865,1.615
2.698,0.188
10
false
Hybrid Vehicle Control ECU*
4.354,2.792 6.344,2.99
1.99,0.198
10
false
Telematics Transceiver
0.906,1.427 3.354,1.625
2.448,0.198
10
false
ECM
0.167,2.781 2.458,2.979
2.292,0.198
10
false
Forward Recognition Camera
0.167,4.156 2.458,4.354
2.292,0.198
10
false
Combination Meter Assembly
3.635,5.51 6.969,5.75
3.333,0.24
10
false
Skid Control ECU (Brake Actuator Assembly)
0.177,6.073 2.625,6.271
2.448,0.198
10
false
*: for HV Model
3.594,4.146 7.156,4.458
3.563,0.313
10
false
Main Body ECU (Multiplex Network Body ECU)
| Transmitting ECU / Parts
(Transmitter) |
Receiving ECU / Parts
(Receiver) |
Signal | Communication Method |
|---|---|---|---|
|
*: for HV Model |
|||
| Front Airbag Sensor | Airbag Sensor with ECU Assembly | Front collision G signal | Direct line |
| Side No. 2 Airbag Sensor | Side collision G signal | ||
| Side Airbag Pressure Sensor | Side collision P signal | ||
| Airbag Sensor with ECU Assembly | Horn Button Assembly | Ignition signal | Direct line |
| Instrument Panel Passenger Airbag Assembly | |||
| Front Seat Airbag Assembly | |||
| Curtain Shield Airbag Assembly | |||
| Front Seat Outer Belt Assembly | |||
| Rear 3 Point Type Seat Outer Belt Assembly | |||
| Telematics Transceiver | Collision detection signal (for mayday output) | ||
| Hybrid Vehicle Control ECU* | Collision detection signal (for hybrid high voltage release) | ||
| ECM | Collision detection signal (for fuel cut) | CAN | |
| Skid Control ECU (Brake Actuator Assembly) | Collision detection signal (for secondary collision brake) | ||
| Telematics Transceiver | VDAS transmission information | ||
| Main Body ECU (Multiplex Network Body ECU) | Interior light illumination request signal | ||
| Hybrid Vehicle Control ECU* | Collision detection signal (for hybrid high voltage release) | ||
| Combination Meter Assembly | ·
SRS warning light illumination request signal ·
Hazard light flashing request signal |
||
| Forward Recognition Camera | Airbag Sensor with ECU Assembly | Front PCS information | |
