RM3660EC _95 ADAS / AD _139716 ADVANCED DRIVER ASSISTANCE SYSTEM _0584197 MILLIMETER WAVE RADAR SENSOR(except NR Series Engine) A

ADVANCED DRIVER ASSISTANCE SYSTEM MILLIMETER WAVE RADAR SENSOR(except NR Series Engine) INSTALLATION

PROCEDURE

Hide Display 88211B 1.INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (for TFTM Made)

NOTICE:: If the millimeter wave radar sensor assembly has been struck or dropped, replace the millimeter wave radar sensor assembly with a new one.

2.833,1.167 2.99,1.365 0.156,0.198 10 true 1 0.385,1.177 0.542,1.375 0.156,0.198 10 true 2 2.188,0.115 2.344,0.313 0.156,0.198 10 false 3

	Bolt
	Screw

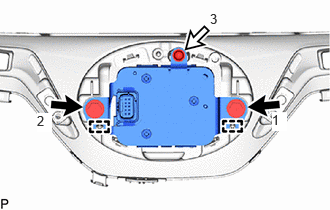

Engage the 2 guides.

Install the millimeter wave radar sensor assembly with the 2 bolts and screw in the order shown in the illustration.

Hide Display 53111 2.INSTALL RADIATOR GRILLE (for TFTM Made)

for ALLION:

Hide Display 53111 3.INSTALL RADIATOR GRILLE (for TFTM Made)

for COROLLA:

Hide Display 4.INSTALL RADIATOR GRILLE ASSEMBLY (for TFTM Made)

for COROLLA:

Hide Display 5.INSTALL FRONT BUMPER ASSEMBLY (for TFTM Made)

Hide Display 88211B 6.INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (for GTMC Made)

NOTICE:: If the millimeter wave radar sensor assembly has been struck or dropped, replace the millimeter wave radar sensor assembly with a new one.

3.042,1.042 3.198,1.24 0.156,0.198 10 true 1 0.25,0.896 0.406,1.094 0.156,0.198 10 true 2 1.74,0.198 1.896,0.396 0.156,0.198 10 true 3

	Bolt
	Screw

Engage the 2 guides.

Install the millimeter wave radar sensor assembly with the 2 bolts and screw in the order shown in the illustration.

NOTICE:: for LEVIN except Sport Package:

·

Do not overtighten the screw. The radiator grille may be damaged.; for LEVIN Sport Package and LEVIN GT:

·

Do not overtighten the screw. The front bumper inner bracket may be damaged.

Hide Display 53114A 7.INSTALL INNER RADIATOR GRILLE (for GTMC Made)

except Sport Package:

for Sport Package:

Hide Display 8.INSTALL FRONT BUMPER ASSEMBLY (for GTMC Made)

Hide Display 88211B 9.ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY

When the millimeter wave radar sensor assembly is replaced with a new one, adjustment of the radar sensor beam axis must be performed.

HINT:: Millimeter wave radar sensor assembly learning can be performed by using either Triangle Target, Flat Surface Target or Driving Adjustment.; ·

Target Adjustment (Triangle Target):

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR (except NR Series Engine)>TARGET ADJUSTMENT(TRIANGLE TARGET)202304,202307,_95,_139716,_0584197,RM1000000029F5V,202307,999999,_95,_139716,_0584197,RM100000002D3IS,

·

Target Adjustment (Flat Surface Target):

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR (except NR Series Engine)>TARGET ADJUSTMENT(FLAT SURFACE TARGET)202304,202307,_95,_139716,_0584197,RM1000000029F5W,202307,999999,_95,_139716,_0584197,RM100000002D3IR,

·

Driving Adjustment:

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR (except NR Series Engine)>DRIVING ADJUSTMENT202304,202307,_95,_139716,_0584197,RM1000000029F5U,202307,999999,_95,_139716,_0584197,RM100000002D3IU,
