ADVANCED DRIVER ASSISTANCE SYSTEM  AUTOMATIC HIGH BEAM SYSTEM(except NR Series Engine)  Automatic High Beam Switch Indicator does not Come ON


DESCRIPTION

When the automatic high beam system is on, the main body ECU (multiplex network body ECU) illuminates the auto high beam switch indicator.

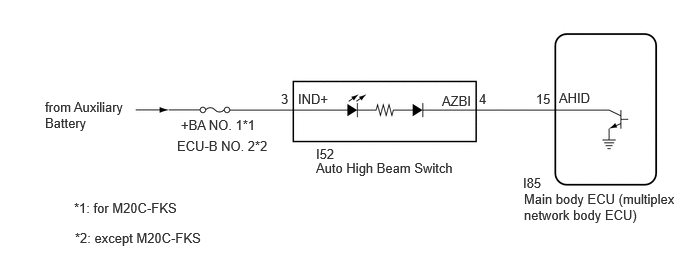

WIRING DIAGRAM

E367187E97
3.292,1.667 4.865,1.948 1.573,0.281 10 false Auto High Beam Switch 3.292,1.521 3.656,1.698 0.365,0.177 10 false I52 3.104,0.948 3.469,1.125 0.365,0.177 10 false IND+ 2.927,0.948 3.292,1.125 0.365,0.177 10 false 3 4.604,0.969 5.031,1.177 0.427,0.208 10 false AZBI 4.99,0.948 5.354,1.125 0.365,0.177 10 false 4 5.823,0.938 6.25,1.146 0.427,0.208 10 false AHID 5.458,1.99 7.083,2.51 1.625,0.521 10 false Main body ECU (multiplex network body ECU) 5.583,0.948 5.948,1.125 0.365,0.177 10 false 15 5.448,1.823 5.813,2 0.365,0.177 10 false I85 1.844,1.438 2.906,1.708 1.063,0.271 10 false ECU-B NO. 2*2 0.469,1.031 1.344,1.542 0.875,0.51 10 false from Auxiliary Battery 1.885,1.219 2.948,1.49 1.063,0.271 10 false +BA NO. 1*1 0.781,2.396 2.479,2.667 1.698,0.271 10 false *2: except M20C-FKS 0.771,2.083 2.469,2.354 1.698,0.271 10 false *1: for M20C-FKS

CAUTION / NOTICE / HINT

NOTICE:
·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

Before replacing the main body ECU (multiplex network body ECU), refer to Service Bulletin.*

*: w/ Smart Key System




PROCEDURE

1.PERFORM ACTIVE TEST USING GTS
a.

Perform the Active Test according to the display on the GTS.

Body Electrical > Main Body > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Automatic High Beam Switch Light Auto high beam switch indicator light OFF or ON -
Body Electrical > Main Body > Active Test
Tester Display
Automatic High Beam Switch Light
50004 449 54
OK:

Auto high beam switch indicator light illuminates.



Result:
Proceed to
OK
NG



OK

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

2.INSPECT AUTO HIGH BEAM SWITCH
3.CHECK HARNESS AND CONNECTOR (POWER SOURCE - AUTO HIGH BEAM SWITCH)
a.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
I52-3 (IND+) - Body ground Ignition switch off 11 to 14 V



Result:
Proceed to
OK
NG



OK

4.CHECK HARNESS AND CONNECTOR (AUTO HIGH BEAM SWITCH - MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU))

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK HARNESS AND CONNECTOR (AUTO HIGH BEAM SWITCH - MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU))
a.

Disconnect the I85 main body ECU (multiplex network body ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I52-4 (AZBI) - I85-15 (AHID) Always Below 1 Ω
I52-4 (AZBI) or I85-15 (AHID) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
